Disassembly & Reassembly
Samsung Electronics 12-5

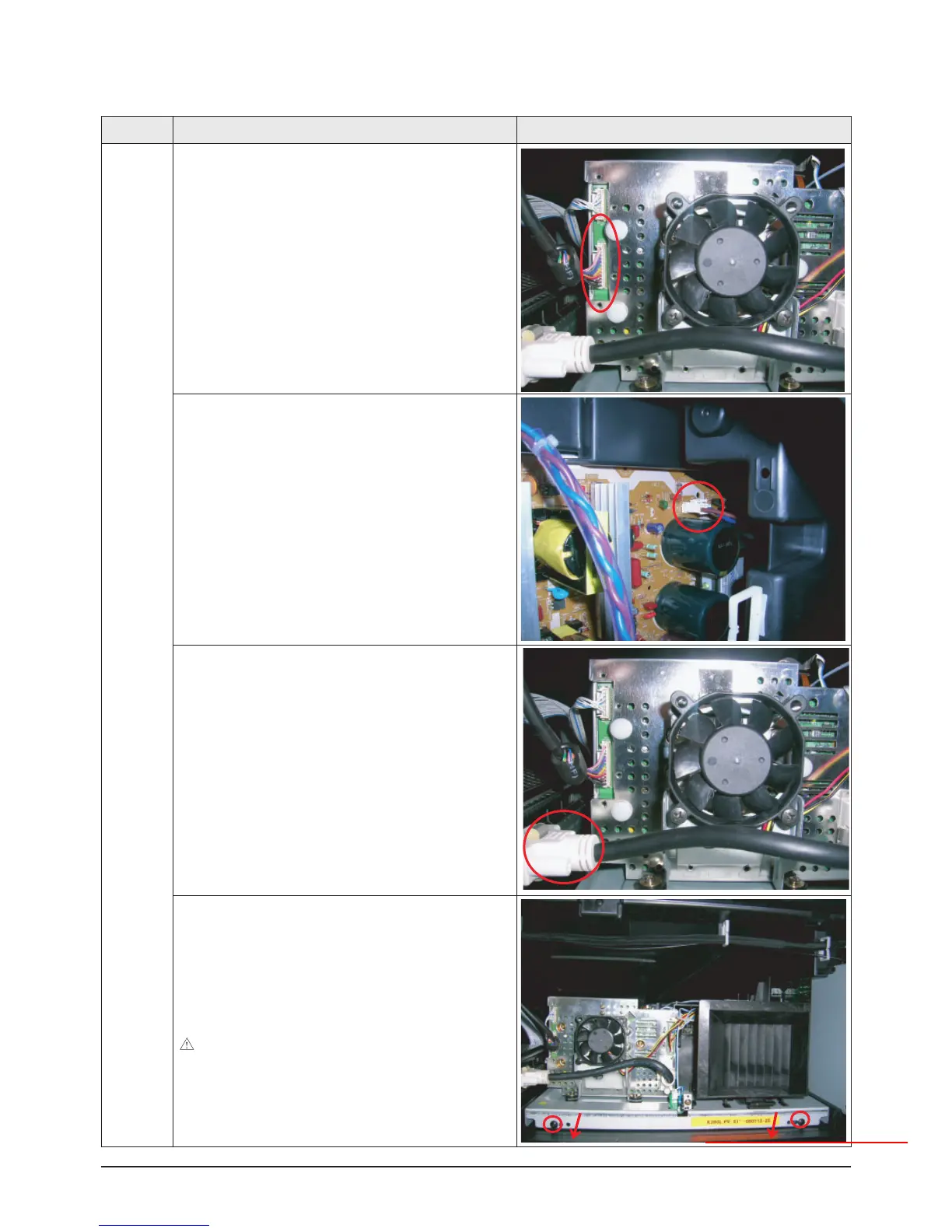

12-1-3 Separation of the optical engine
Part Name Description Description Photo
Optical
Engine
① Remove the cable (the bottom one on the left side)
① Remove the ballast cable on the SMPS.
① Seperate the DVI cable.
① Remove the 2 screw.
: TH,B,M4.L15,BLK,SWRCH18A
② Remove the engine by pulling it out of the cabinet.
: Be careful when removing the Light Engine as it may get
caught up by the upper cable of the case.
To Next Page
