2.ProductSpecicationsandDescription
CircuitBoardLocation

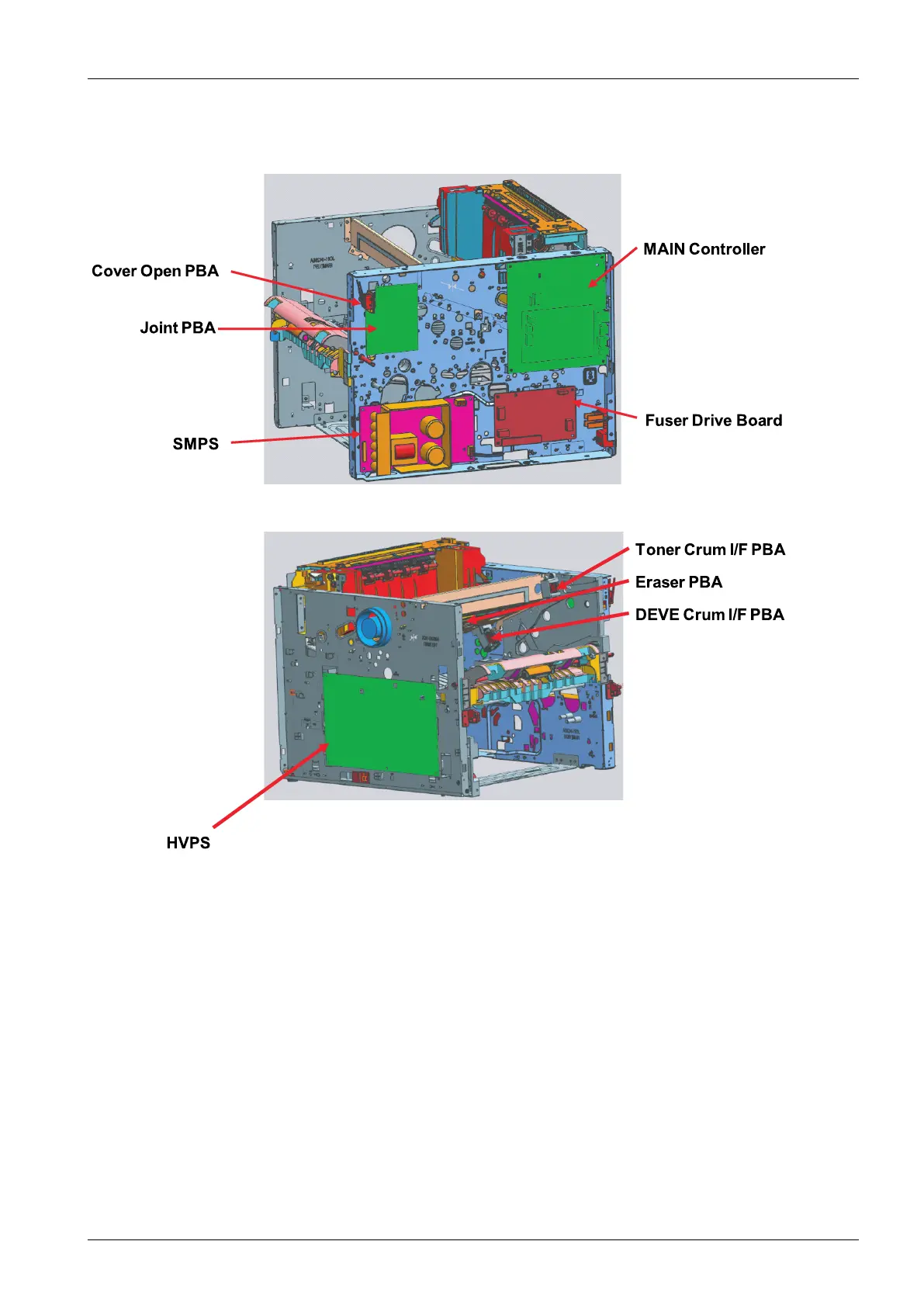

Thefollowingdiagramsshowthelocationsoftheprintercircuitboards:
J
o in t P B A
MAIN C o n tro ller
Fu s e r Drive B o a rd
S MPS
Eras e r P BA
To n e r Cru m I/F P BA
HVPS
Co ver Open P BA
DEVE Crum I/F PBA
Copyright©1995-2016SAMSUNG.Allrightsreserved.2-38
