Samsung OfficeServ 7400 - Page 125

OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 7 MAY 2010
7.21
METAL
CONNECTOR
CLIP
24B / 12B ULTRA BASE WEDGE 64BM ULTRA BASE WEDGE
GROOVE FOR
ADDITIONAL
CONNECTOR
CLIP

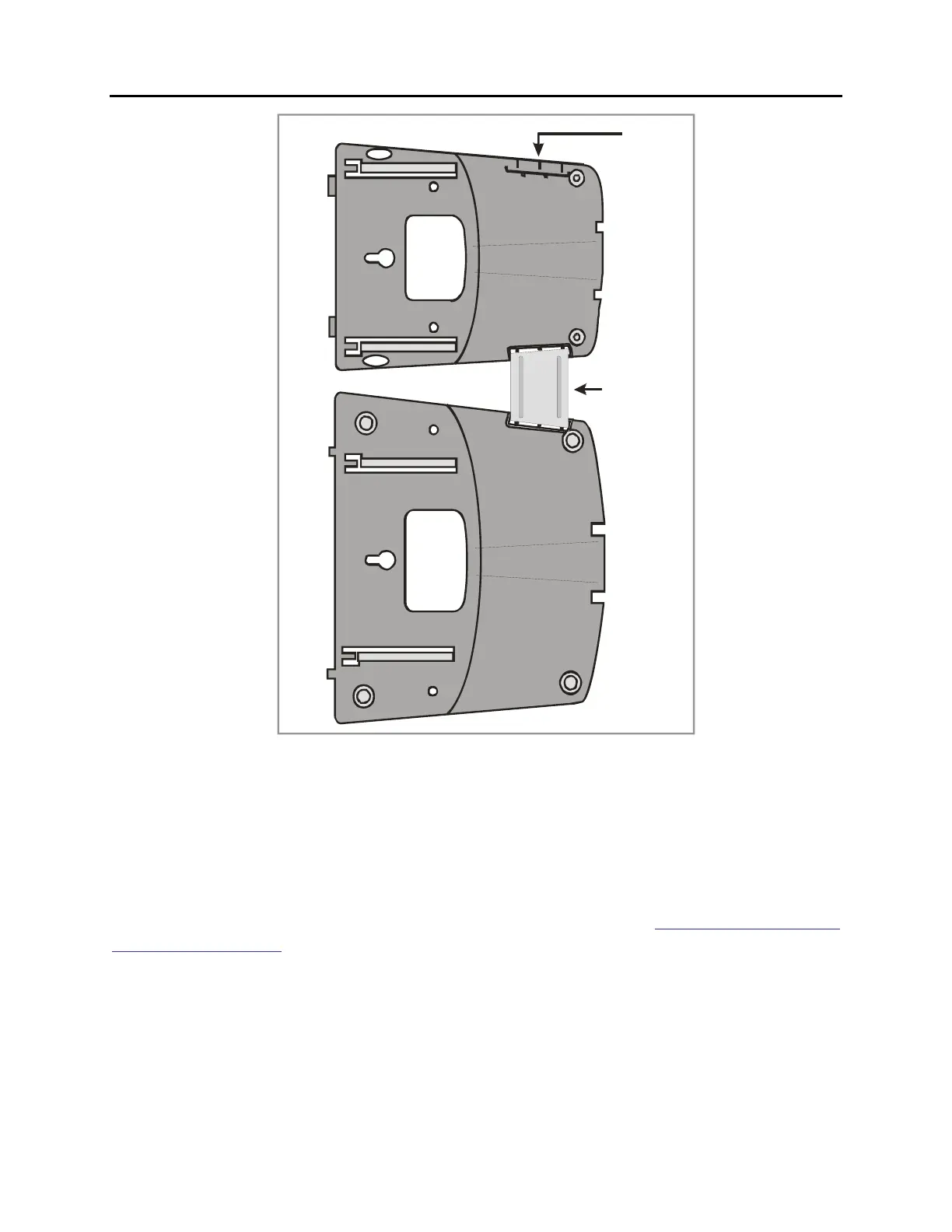

Figure 7.22 Attaching 24B/12B to 64BM
ATTACHING DCS 32 BUTTON AOM AND DCS 64BM WITH MASTER STATION
These new Ultra Base Wedges allow a connector clip (packaged with 64BM and AOMs) to be
connected to the underside of the new style wedge and attach AOM(s) or 64BM(s) together
with the main or “master” station. This “clip” allows multiple 64BMs and/or AOMs to be
secured or “chained” together to the main or “master” station they are associated with. This
will make instruments associated with each other seem as one unit (see Figure 7.22, Figure
7.23, and Figure 7.24).
