Alignment & Adjustments
Service Manual
4-7
Samsung Electronics

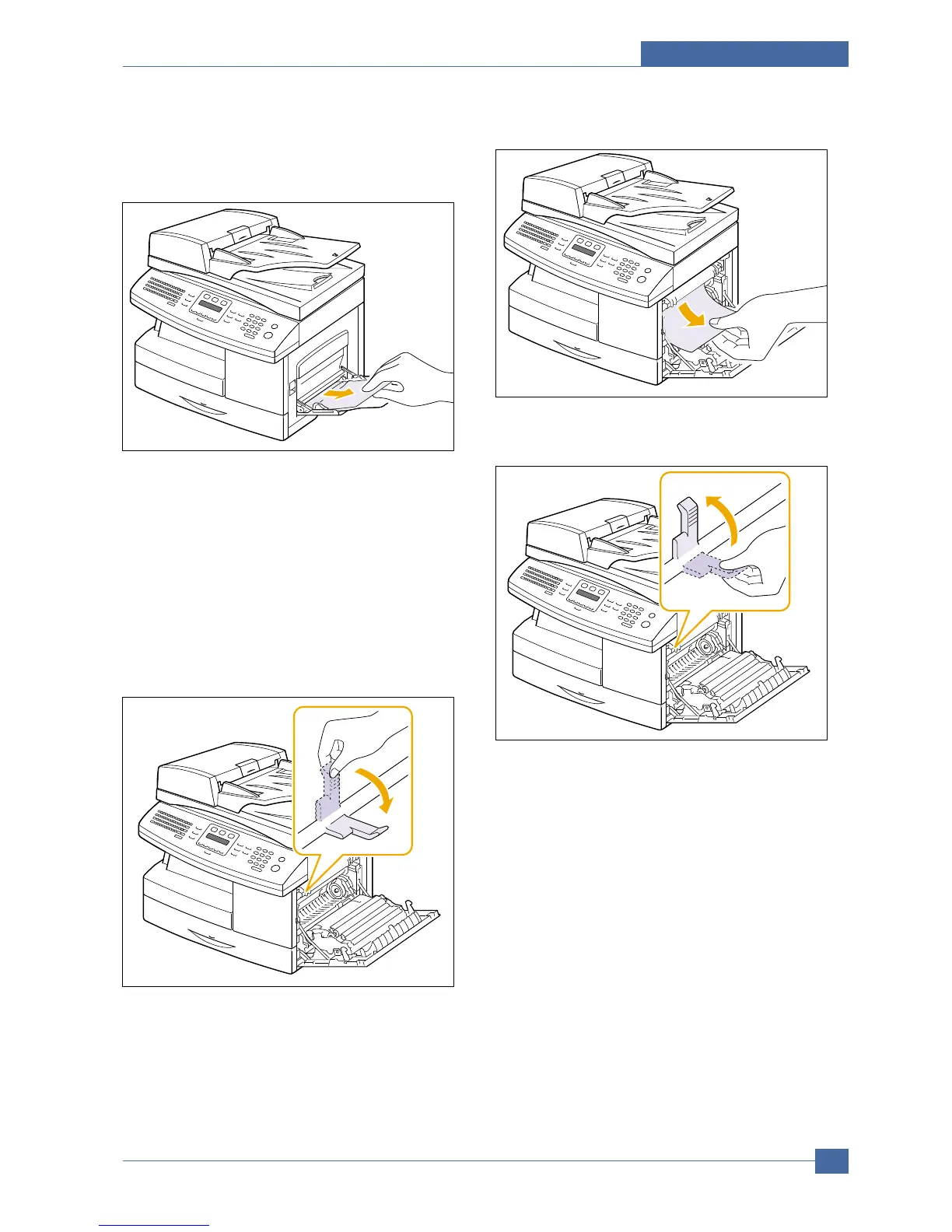

In the multi-purpose tray
1. If the paper is not feeding properly, pull the paper
out of the machine.
2. Open and close the front cover to resume printing.
In the fuser area or around the toner cartridge
1. Press the release lever to open the side cover.
Lift the release lever to open the side cover.
2. Pull down on the fuser lever as shown below.
This will release pressure on the paper.
If paper is not seen in this area, skip to the Exit
Area.
3. Remove the jammed paper, in the direction shown.
4. Push the fuser lever up, and then close the side
cover.
5. Open and close the front cover to resume printing.
