Tunable Semiconductor Laser TSL-770
3-1
Panel Descriptions
3

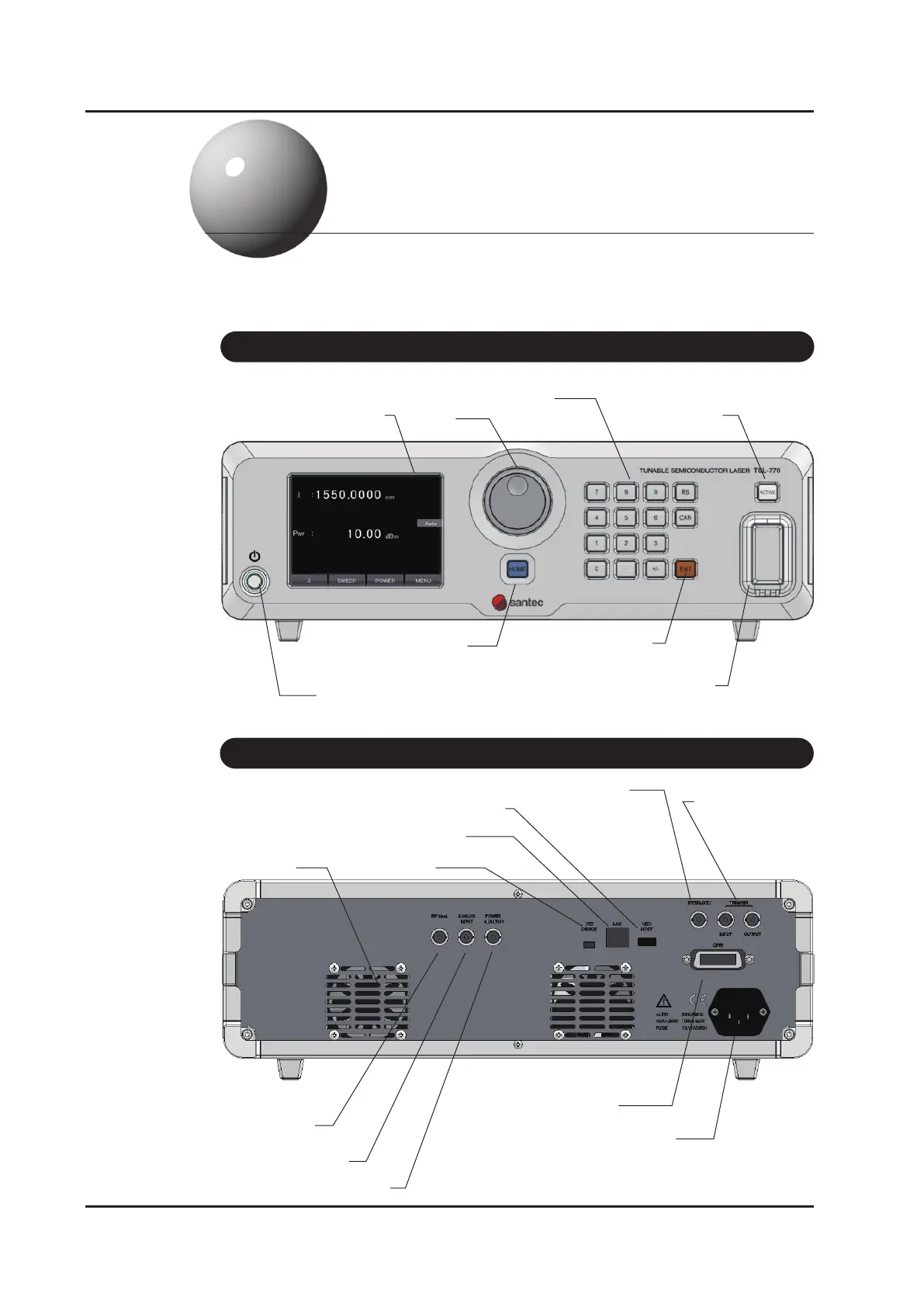

3-1 Front Panel
Display and Touch screen
HOME key
Power On/Off key
and LED indicator
Numeric keypad Optical Output
Active key
Dial
ENTER key
Optical Output
Connector (inside)
3-2 Rear Panel
USB connector
(Device)
USB connector
(Host)
LAN connector
GPIB connector
External Interlock
connector
Power Monitor connector
Analog input
RF Modulation
input (option)
Trigger connectors
(Input and Output)
Exhaust fan
Power inlet and
Fuse box
