6-3-2 High-frequency Modulation (Option)
Modulating the intensity of optical power is performed at relatively low frequency.
Specications
Input voltage : 3.3 Vp-p
Modulation depth : 10% (3.3 Vp-p input, Typ.)
Bandwidth : 1 to 100 MHz (Typ.)
Input Impedance : 50Ω
■
How to use

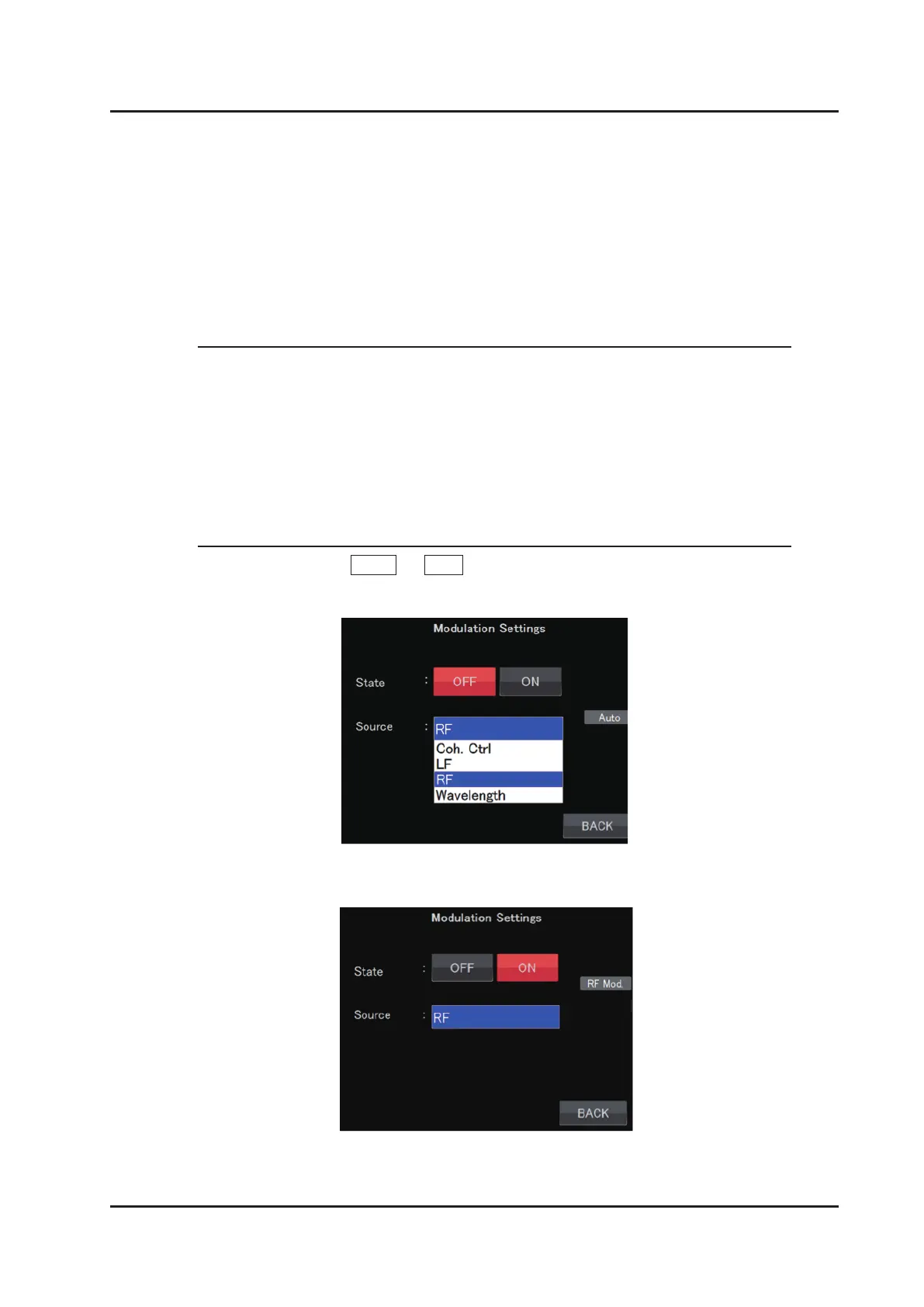

1. Touch MENU and MOD to move to modulation setting screen.
2. Select “RF” in Source pull-down menu, and turn State ON.
3. “RF Mod” lights up on the right edge of the screen.
