TSL-770 Operation Manual
4-3 Interlock
This product is equipped with a terminal for connecting an external interlock circuit.

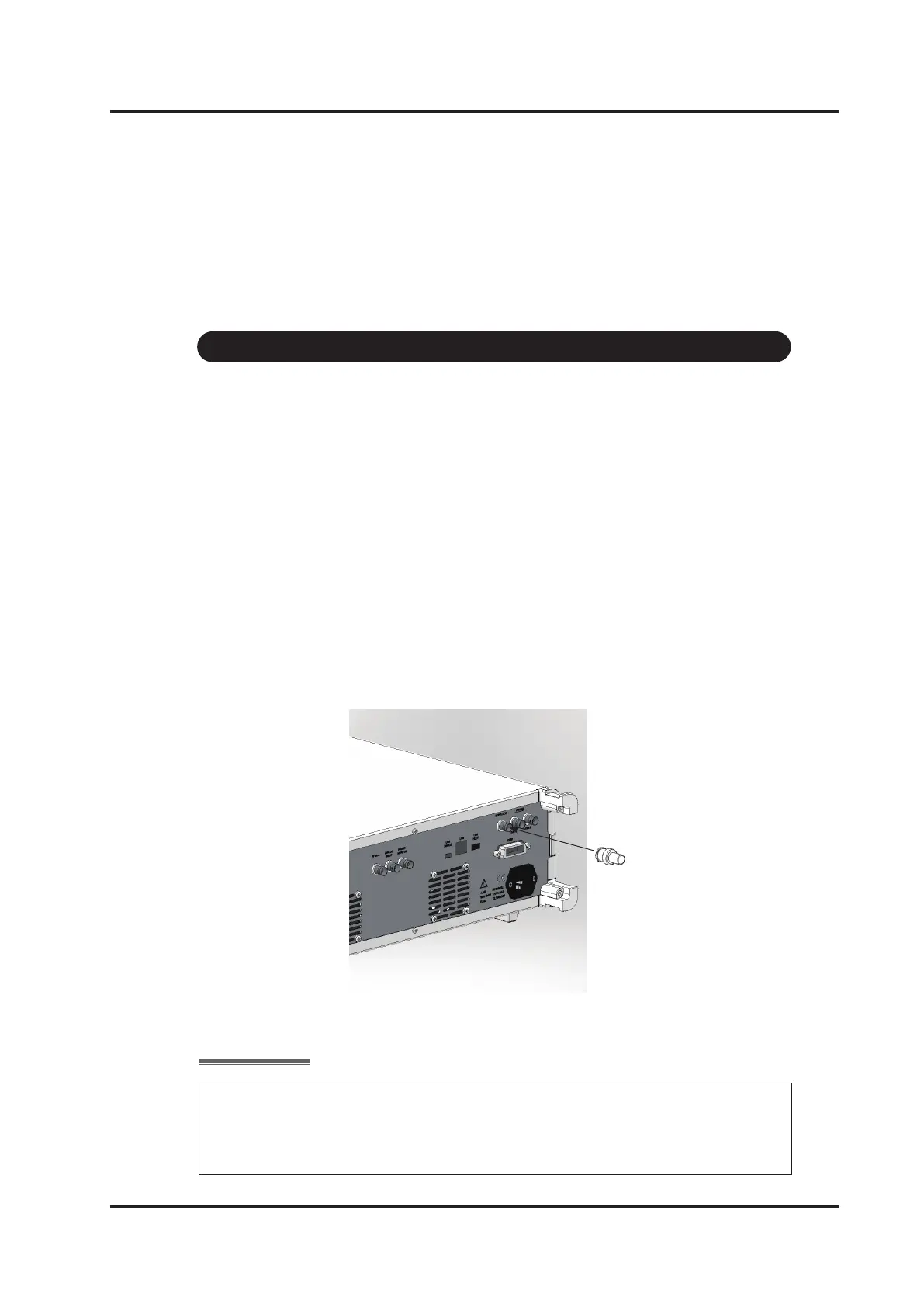

A terminator is connected to the interlock terminal at the time of factory shipment (or included
as an accessory). If an external interlock is used, remove the terminator and connect a circuit
to the interlock terminal. The Laser is output only when there is a short circuit. The Laser
turns off when the circuit is open. If you want the Laser to light up again, short the circuit, and
then perform Laser output operation (Refer to “5-2. Laser output”).
If you don’t use your own interlock circuit, please connect the terminator to the terminal (BNC)
indicated as “INTERLOCK”. If you use your own interlock circuit, please connect the interlock
circuit to the terminal indicated “INTERLOCK”. Keep the removed terminator so it does not
become lost.
Make sure to use this product only with the terminator connected when an external
interlock is not used. The Laser is not output unless the terminator is connected.
When "IntLock" is indicated in the display of the front panel, the interlock circuit is
in open state.
