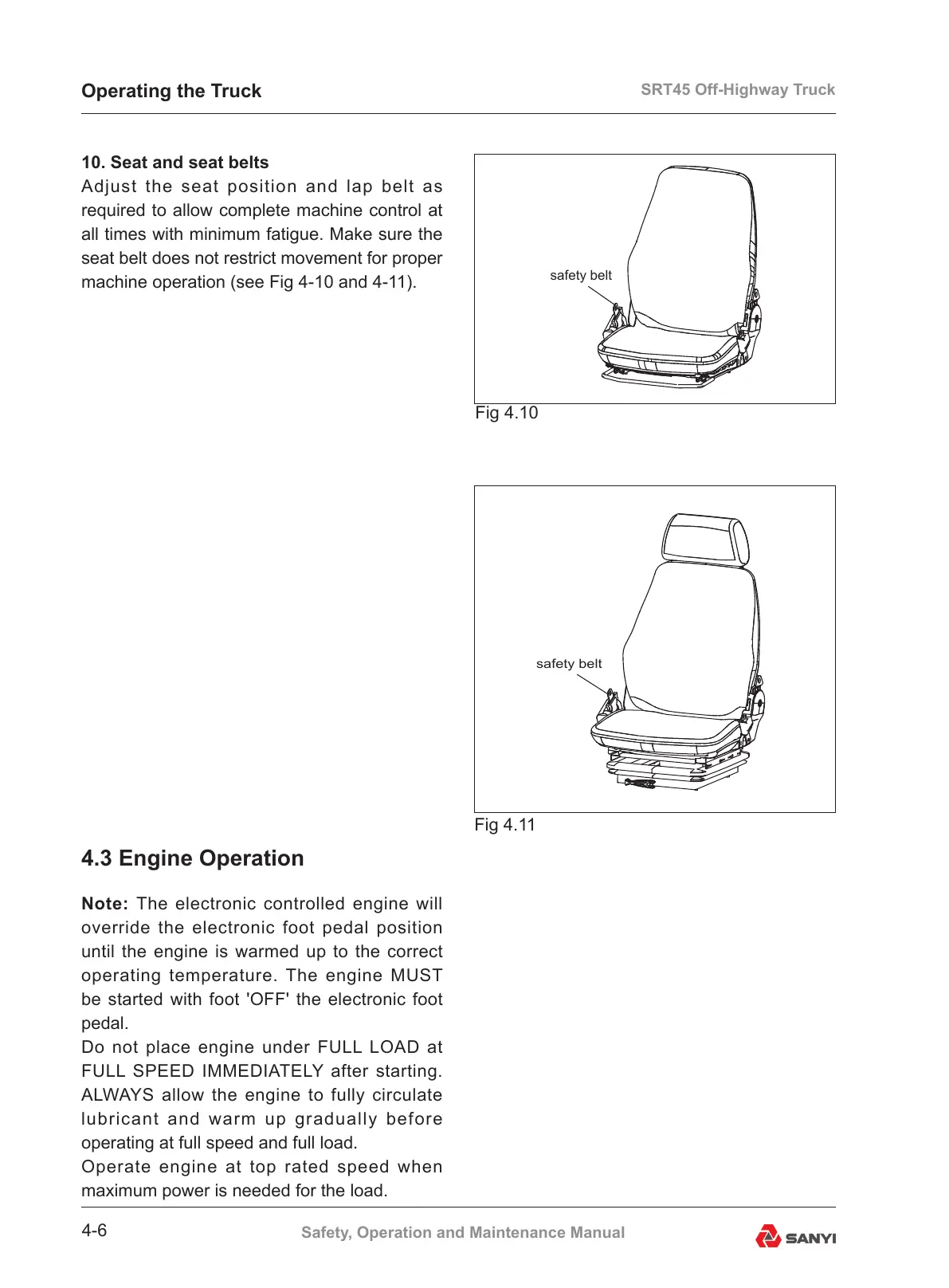

SRT45 Off-Highway Truck
4-6
Safety, Operation and Maintenance Manual
10. Seat and seat belts
Adjust the seat position and lap belt as
required to allow complete machine control at
all times with minimum fatigue. Make sure the
seat belt does not restrict movement for proper
machine operation (see Fig 4-10 and 4-11).
4.3 Engine Operation
Note:
The electronic controlled engine will
override the electronic foot pedal position
until the engine is warmed up to the correct
operating temperature. The engine MUST
be started with foot 'OFF' the electronic foot
pedal.
Do not place engine under FULL LOAD at
FULL SPEED IMMEDIATELY after starting.
ALWAYS allow the engine to fully circulate
lubricant and warm up gradually before
operating at full speed and full load.
Operate engine at top rated speed when
maximum power is needed for the load.
Fig 4.10
Fig 4.11
