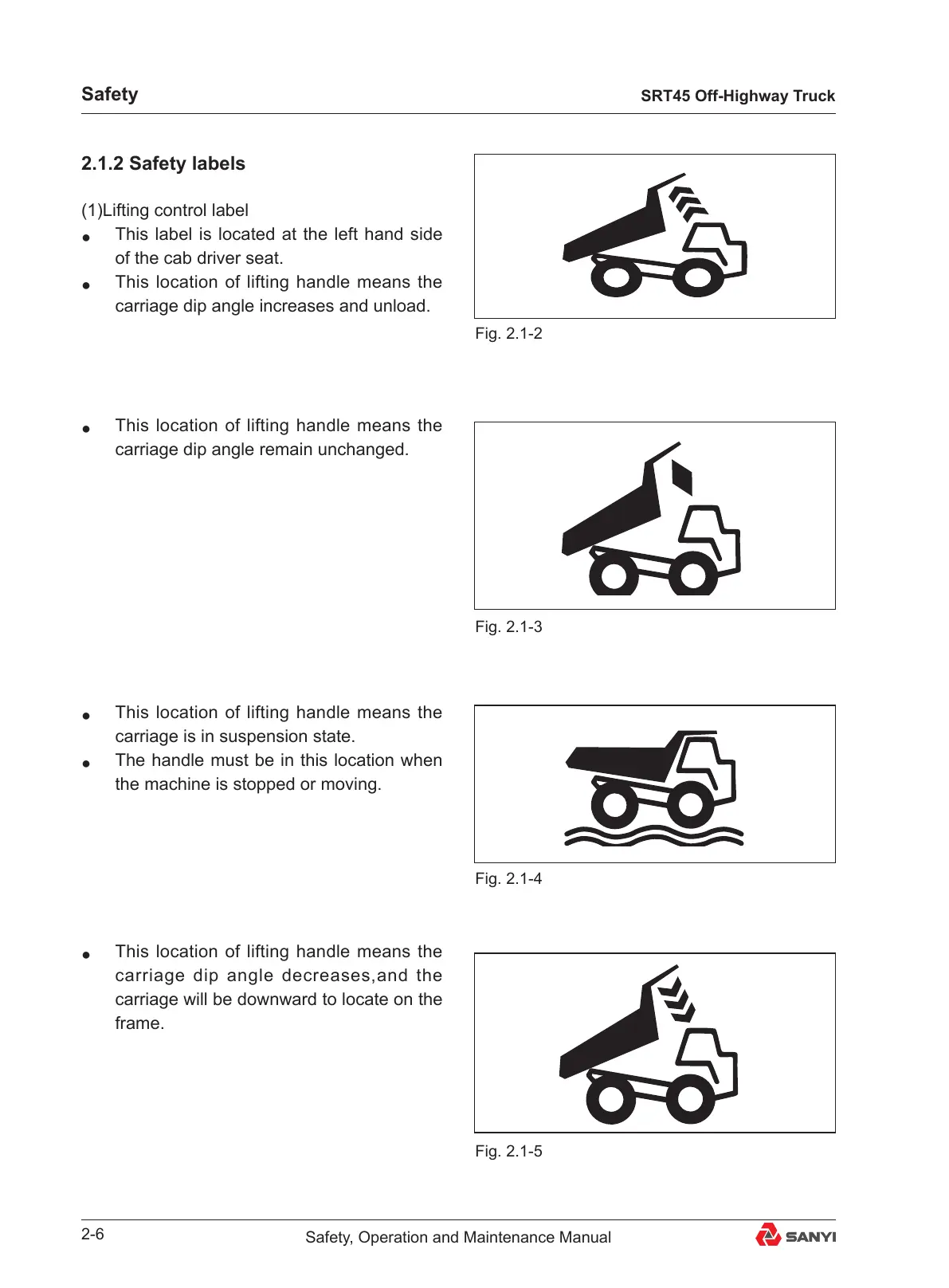

2.1.2 Safety labels
(1)Lifting control label
●
This label is located at the left hand side
of the cab driver seat.
●
This location of lifting handle means the
carriage dip angle increases and unload.
●
This location of lifting handle means the
carriage dip angle remain unchanged.
●
This location of lifting handle means the
carriage is in suspension state.
●
The handle must be in this location when
the machine is stopped or moving.
●
This location of lifting handle means the
carriage dip angle decreases,and the
carriage will be downward to locate on the
frame.
Fig. 2.1-2
Fig. 2.1-3
Fig. 2.1-4
Fig. 2.1-5
