Safety
Safety, Operation and Maintenance Manual
2-7
SRT45 Off-Highway Truck

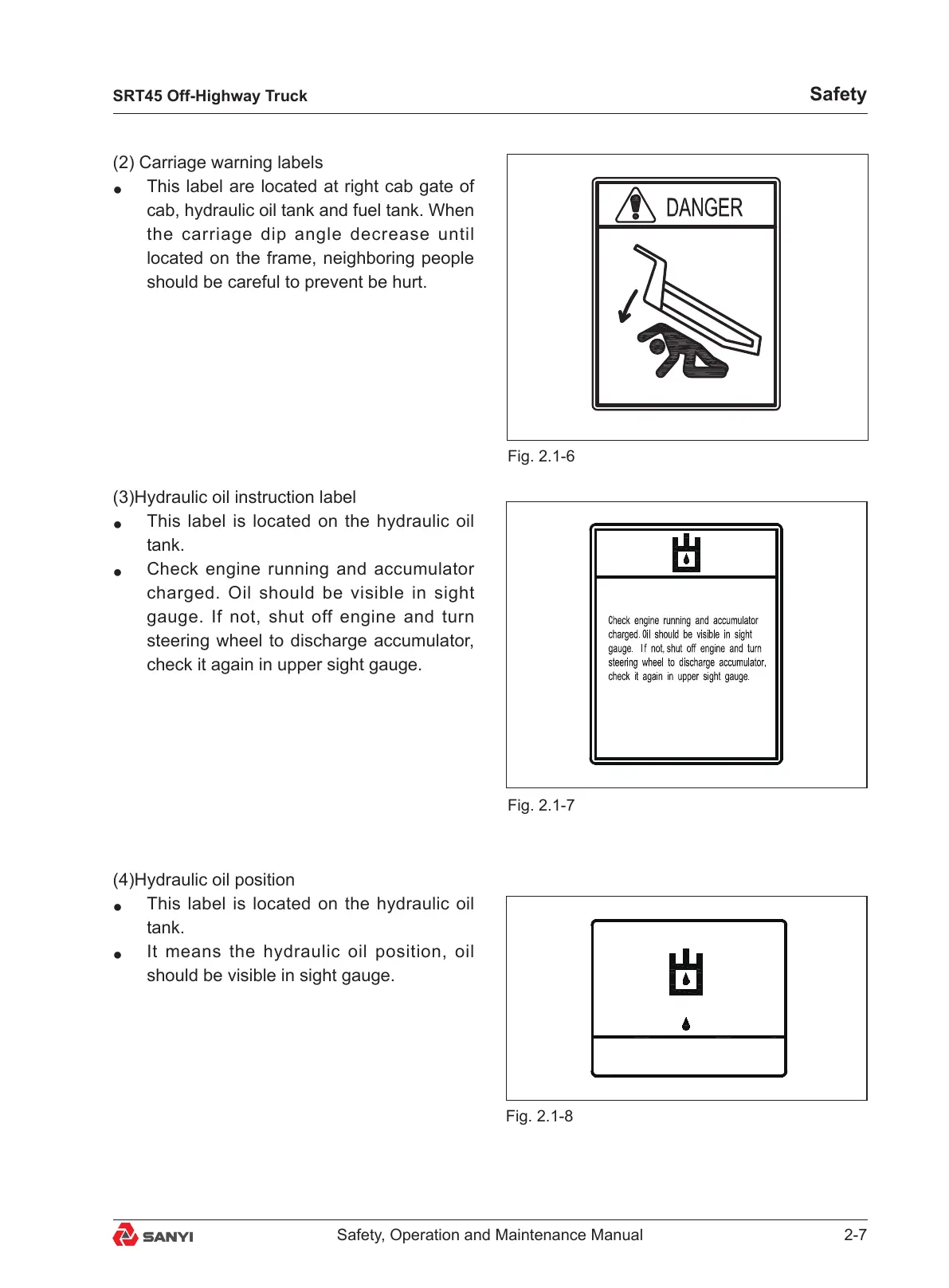

(2) Carriage warning labels
●
This label are located at right cab gate of
cab, hydraulic oil tank and fuel tank. When
the carriage dip angle decrease until
located on the frame, neighboring people
should be careful to prevent be hurt.
(3)Hydraulic oil instruction label
●
This label is located on the hydraulic oil
tank.
●
Check engine running and accumulator
charged. Oil should be visible in sight
gauge. If not, shut off engine and turn
steering wheel to discharge accumulator,
check it again in upper sight gauge.
(4)Hydraulic oil position
●
This label is located on the hydraulic oil
tank.
●
It means the hydraulic oil position, oil
should be visible in sight gauge.
Fig. 2.1-6
Fig. 2.1-7
Fig. 2.1-8
