SRT45 Off-Highway Truck
3-4
Safety, Operation and Maintenance Manual

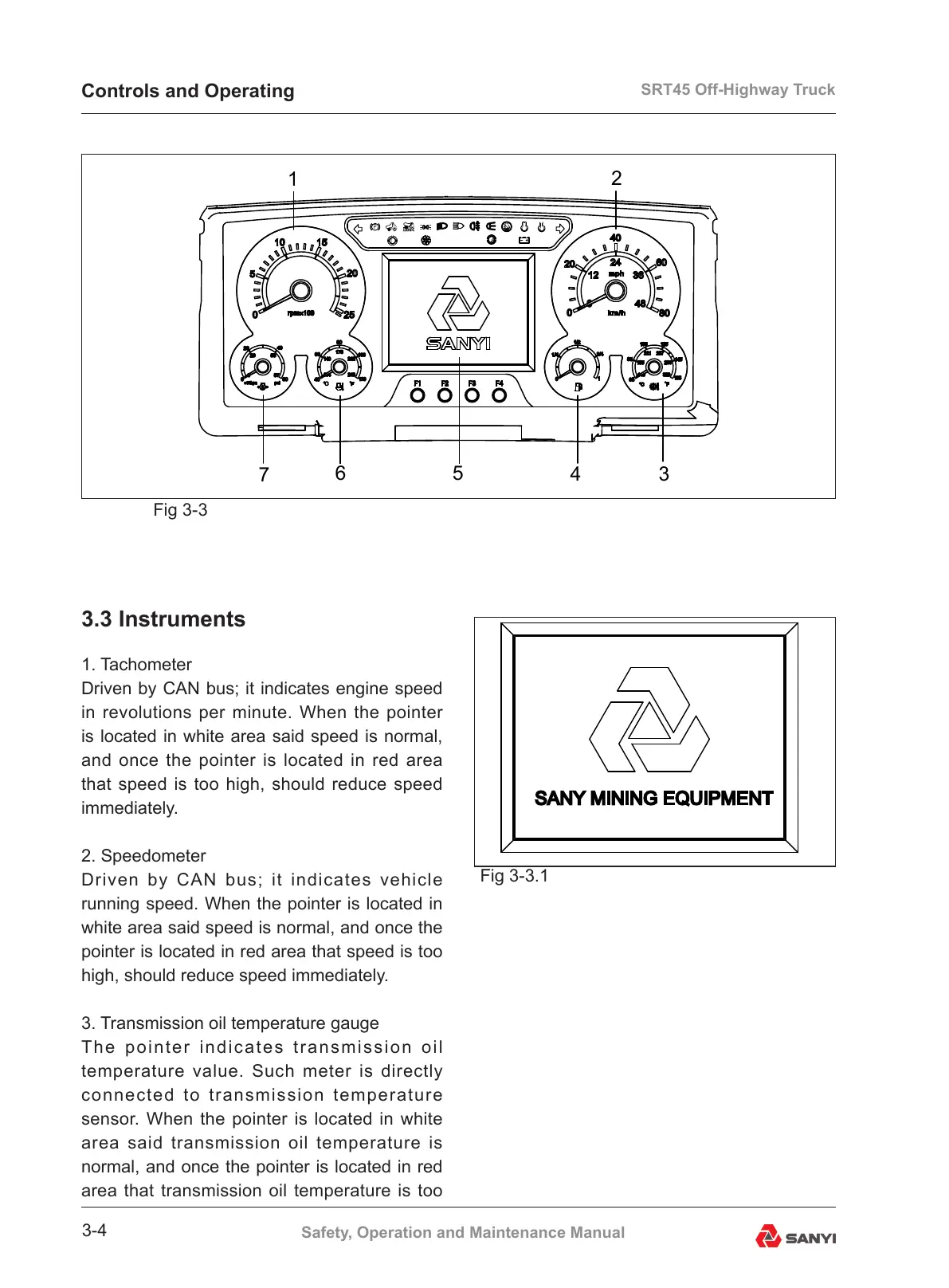

3.3 Instruments
1. Tachometer
Driven by CAN bus; it indicates engine speed
in revolutions per minute. When the pointer
is located in white area said speed is normal,
and once the pointer is located in red area
that speed is too high, should reduce speed
immediately.
2. Speedometer
Driven by CAN bus; it indicates vehicle
running speed. When the pointer is located in
white area said speed is normal, and once the
pointer is located in red area that speed is too
high, should reduce speed immediately.
3. Transmission oil temperature gauge
The p oi nter i ndica te s tran sm issio n oil
temperature value. Such meter is directly
connected to transmission temperature
sensor. When the pointer is located in white
area said transmission oil temperature is
normal, and once the pointer is located in red
area that transmission oil temperature is too
Fig 3-3
P
6
7
4
3
2
1
5
！
！
SANY MINING EQUIPMENT
Fig 3-3.1
Controls and Operating
