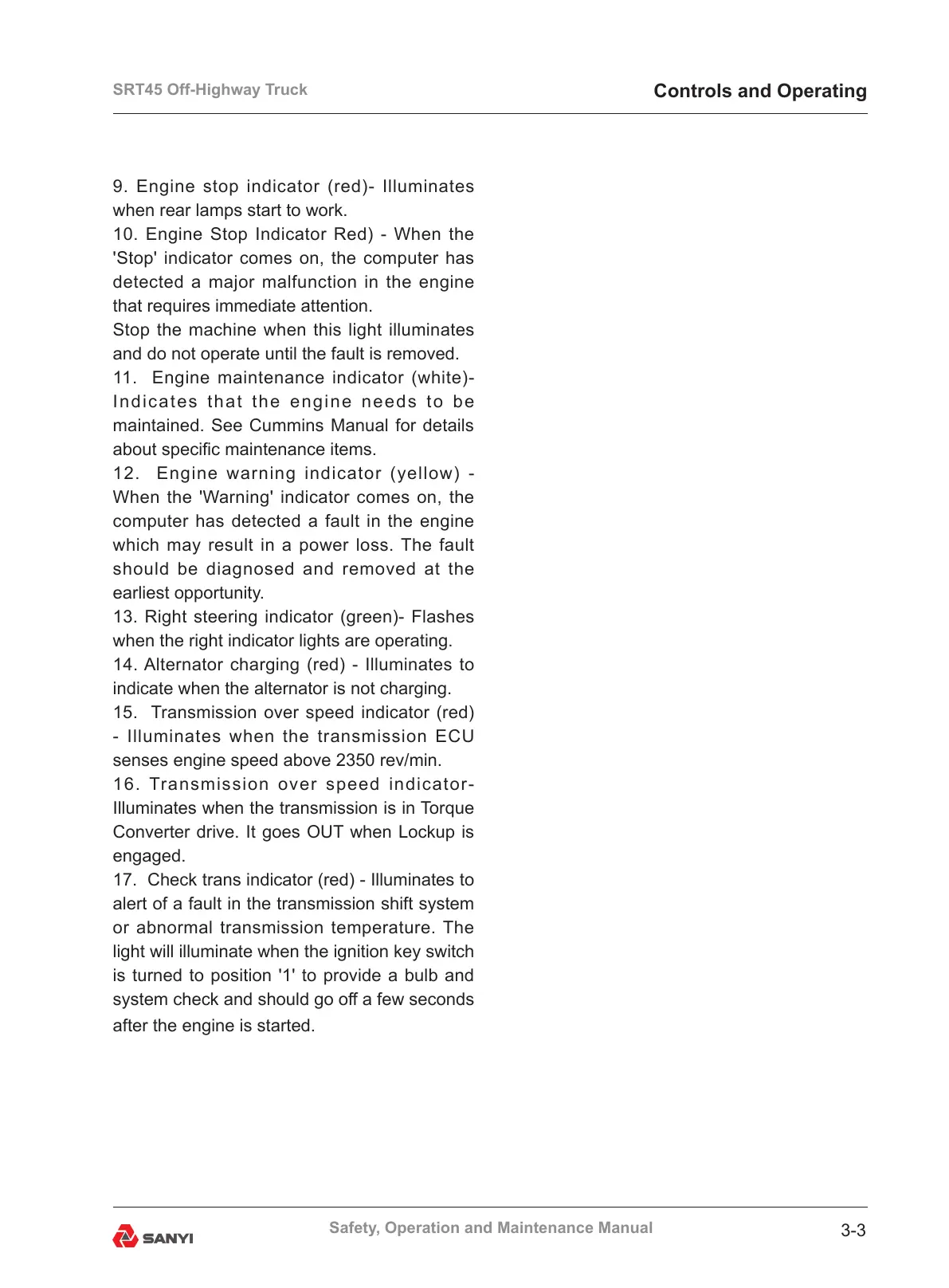

9. Engine stop indicator (red)- Illuminates
when rear lamps start to work.
10. Engine Stop Indicator Red) - When the
'Stop' indicator comes on, the computer has
detected a major malfunction in the engine
that requires immediate attention.
Stop the machine when this light illuminates
and do not operate until the fault is removed.
11. Engine maintenance indicator (white)-
Ind icates t ha t t he engin e n ee ds to b e
maintained. See Cummins Manual for details
about specic maintenance items.
12. Engine warning indicator (yellow) -
When the 'Warning' indicator comes on, the
computer has detected a fault in the engine
which may result in a power loss. The fault
should be diagnosed and removed at the
earliest opportunity.
13. Right steering indicator (green)- Flashes
when the right indicator lights are operating.
14. Alternator charging (red) - Illuminates to
indicate when the alternator is not charging.
15. Transmission over speed indicator (red)
- Illuminates when the transmission ECU
senses engine speed above 2350 rev/min.
16. Transmission over speed indicator-
Illuminates when the transmission is in Torque
Converter drive. It goes OUT when Lockup is
engaged.
17. Check trans indicator (red) - Illuminates to
alert of a fault in the transmission shift system
or abnormal transmission temperature. The
light will illuminate when the ignition key switch
is turned to position '1' to provide a bulb and
system check and should go off a few seconds
after the engine is started.
