Foreword
Safety, Operation and Maintenance Manual
1-7
SRT45 Off-Highway Truck
stops.
●
Always let the system cool down at the end of the working day.
1.7 Visibility from Operator's Seat
The visibility standards (ISO 5006) for this machine require a view shown in the diagram
below.
Visibility in immediate area
The visibility of this machine in the area 1 m from the outside surface of the machine at a
height of 1.5 m is shown in the diagram below. The hatched area (A) shows the area where the
view is blocked by part of the machine when mirrors or other aids to visibility are installed as
standard. Please be fully aware that there are places that cannot be seen when operating the
machine.
1000
1000
1743
1743
750
1000
1000
1200
1000
3900
A
A
A
A

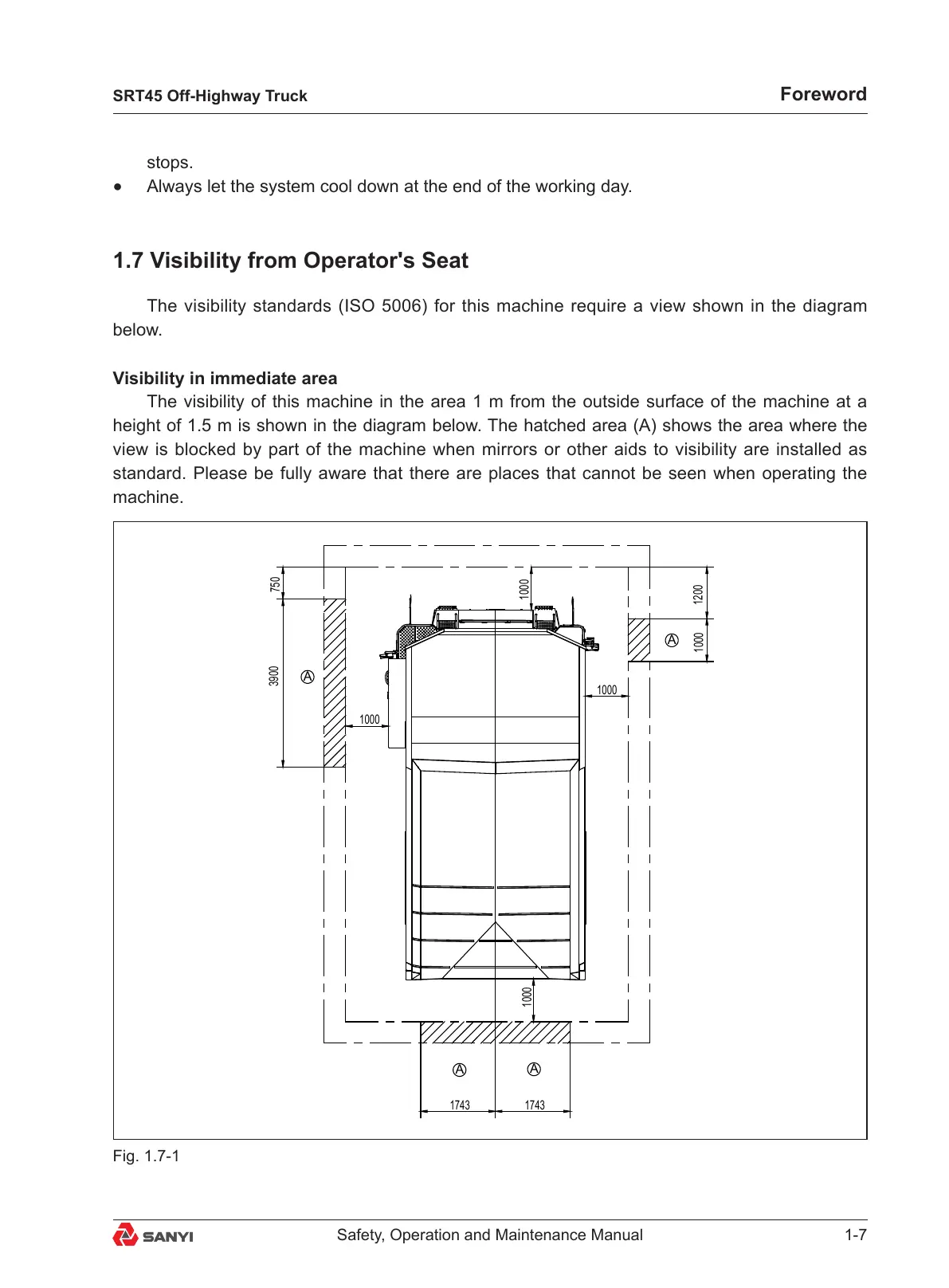

Fig. 1.7-1
