SRT45 Off-Highway Truck
24-M radius visibility

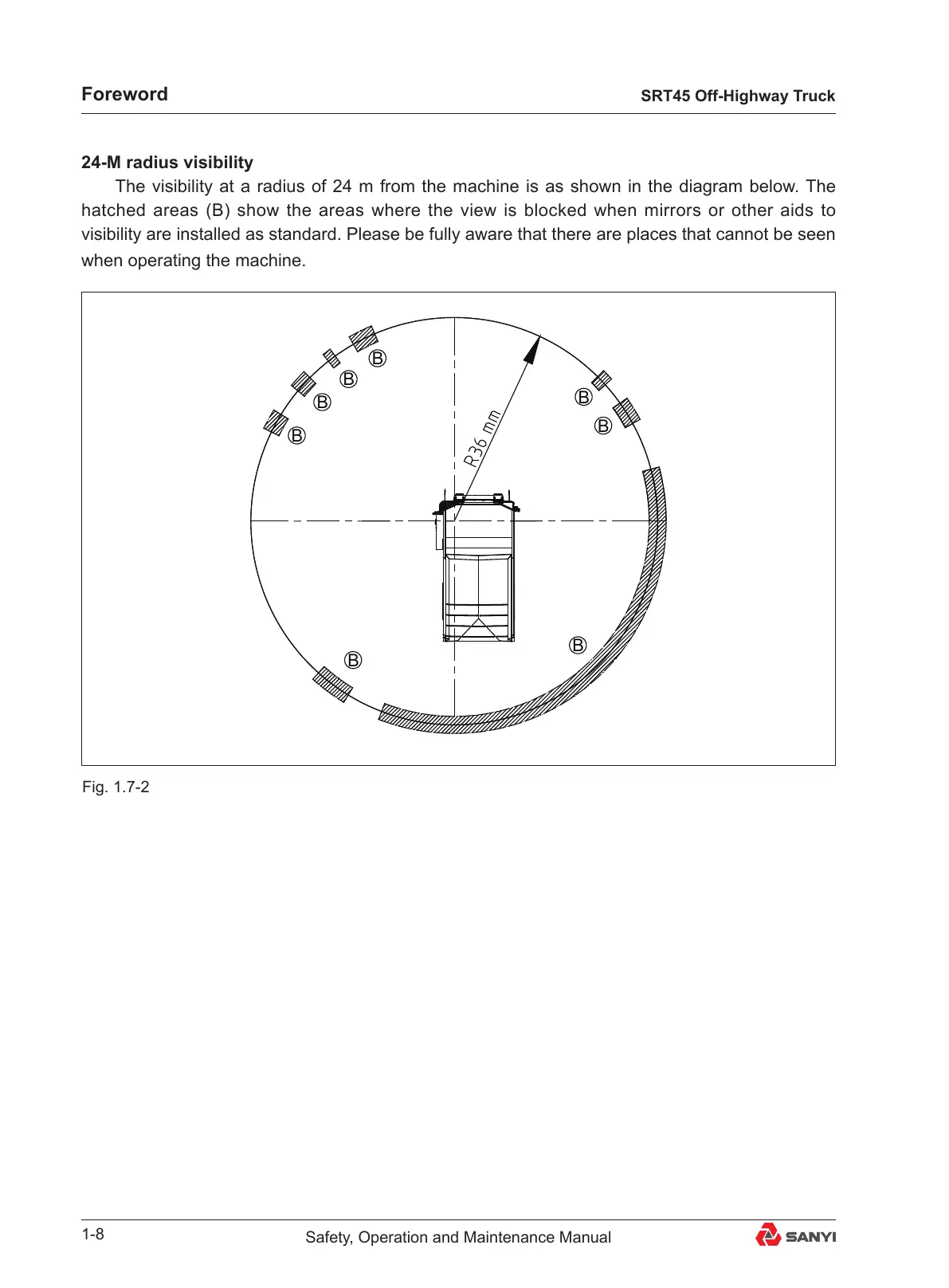

The visibility at a radius of 24 m from the machine is as shown in the diagram below. The
hatched areas (B) show the areas where the view is blocked when mirrors or other aids to
visibility are installed as standard. Please be fully aware that there are places that cannot be seen
when operating the machine.
