SRT45 Off-Highway Truck
3-11
Safety, Operation and Maintenance Manual

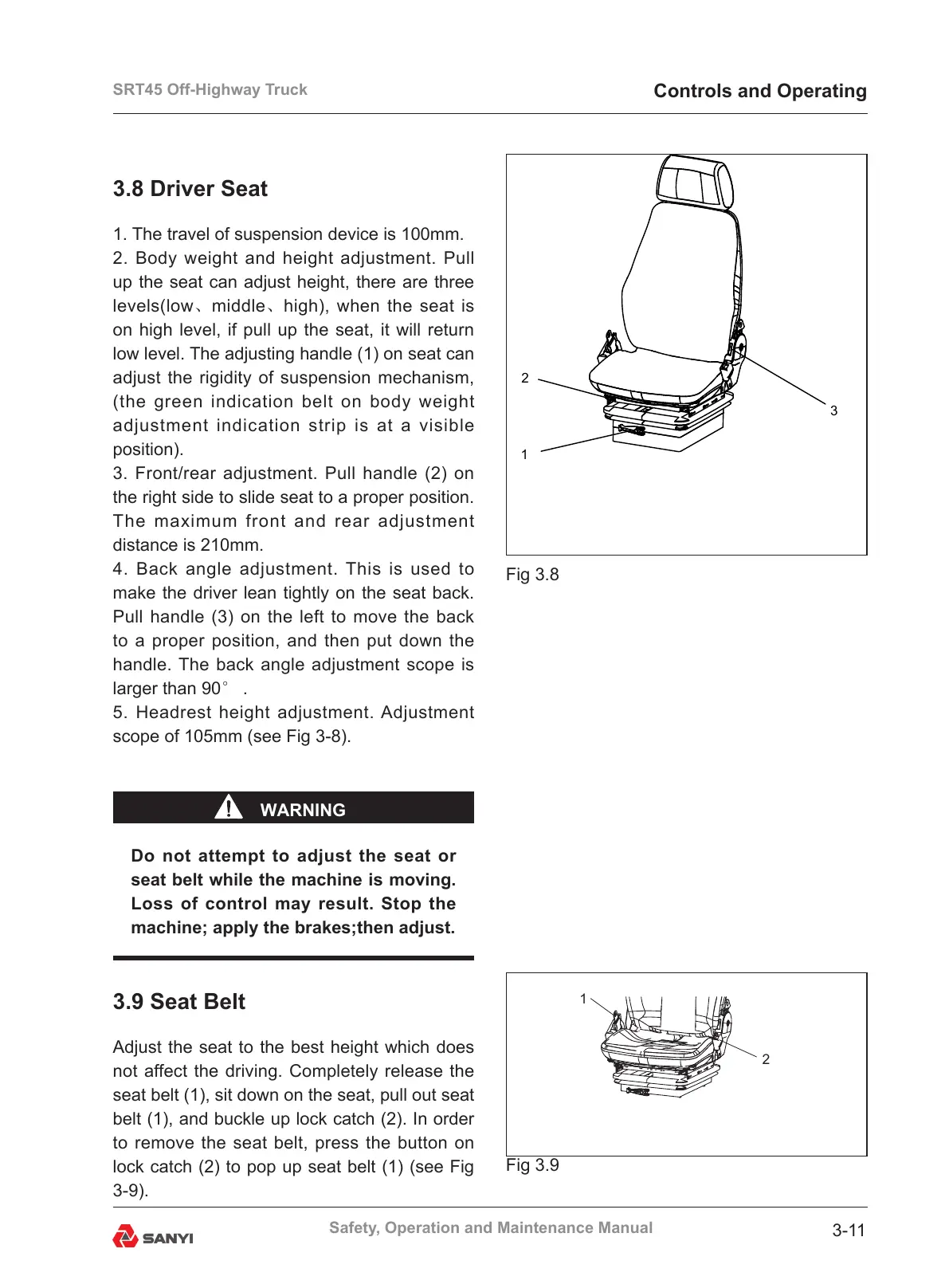

Fig 3.8
3
1
2
1
2
3.8 Driver Seat
1. The travel of suspension device is 100mm.
2. Body weight and height adjustment. Pull
up the seat can adjust height, there are three
levels(low、middle、high), when the seat is
on high level, if pull up the seat, it will return
low level. The adjusting handle (1) on seat can
adjust the rigidity of suspension mechanism,
(the green indication belt on body weight
adjustment indication strip is at a visible
position).
3. Front/rear adjustment. Pull handle (2) on
the right side to slide seat to a proper position.
The maximum front and rear adjustment
distance is 210mm.
4. Back angle adjustment. This is used to
make the driver lean tightly on the seat back.
Pull handle (3) on the left to move the back
to a proper position, and then put down the
handle. The back angle adjustment scope is
larger than 90° .
5. Headrest height adjustment. Adjustment
scope of 105mm (see Fig 3-8).
WARNING
Do not attempt to adjust the seat or
seat belt while the machine is moving.
Loss of control may result. Stop the
machine; apply the brakes;then adjust.
3.9 Seat Belt
Adjust the seat to the best height which does
not affect the driving. Completely release the
seat belt (1), sit down on the seat, pull out seat
belt (1), and buckle up lock catch (2). In order
to remove the seat belt, press the button on
lock catch (2) to pop up seat belt (1) (see Fig
3-9).
