SRT45 Off-Highway Truck
3-1
Safety, Operation and Maintenance Manual
3 CONTROLS AND OPERATING
3.1 Controls and Instruments

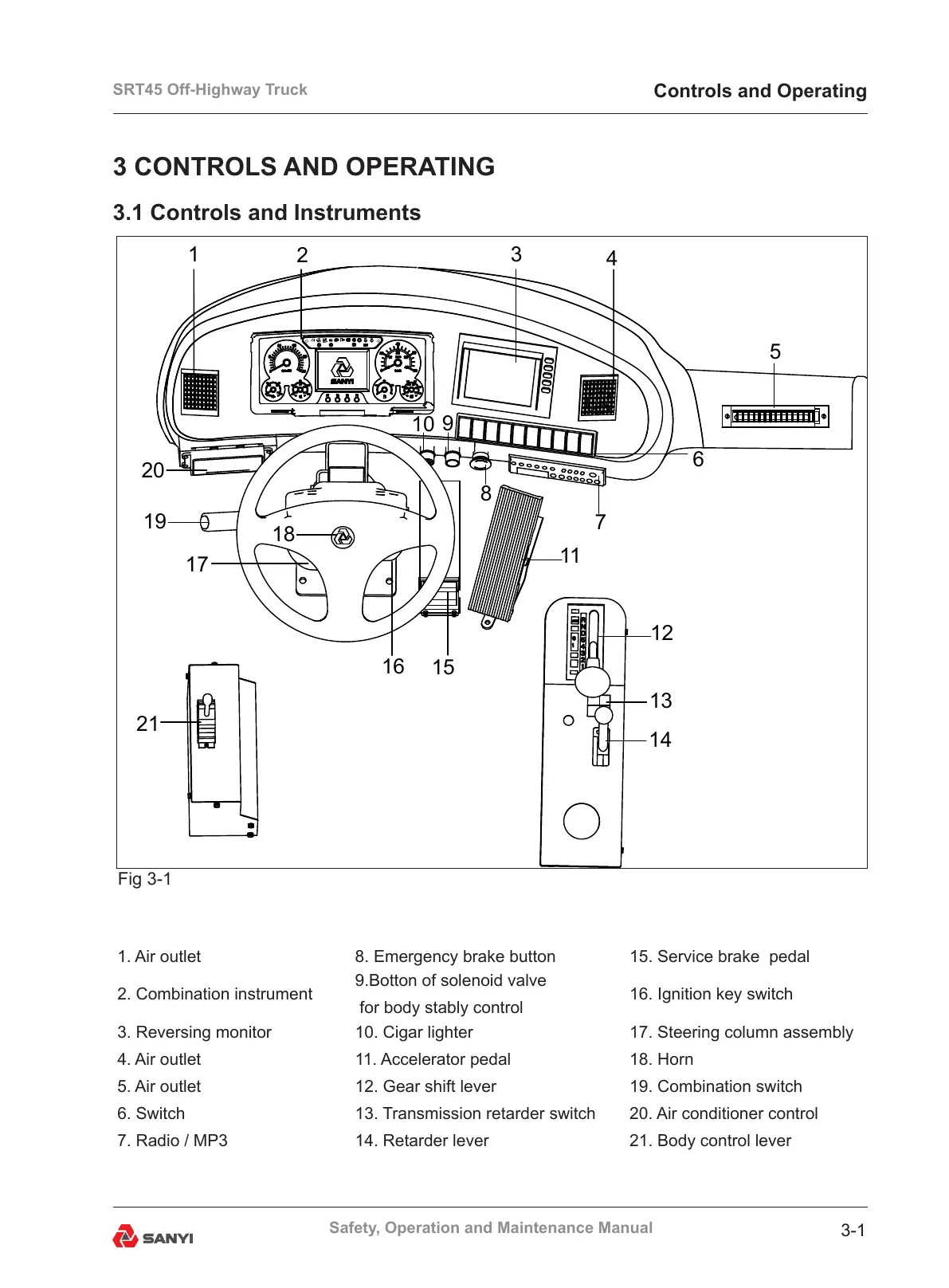

1. Air outlet 8. Emergency brake button 15. Service brake pedal
2. Combination instrument
9.Botton of solenoid valve
for body stably control
16. Ignition key switch
3. Reversing monitor 10. Cigar lighter 17. Steering column assembly
4. Air outlet 11. Accelerator pedal 18. Horn
5. Air outlet 12. Gear shift lever 19. Combination switch
6. Switch 13. Transmission retarder switch 20. Air conditioner control
7. Radio / MP3 14. Retarder lever 21. Body control lever
Fig 3-1
Controls and Operating
20
12
13
11
5
3
2
1
9
8
7
6
14
15
16
17
18
19
4
P
10
21
！
！
