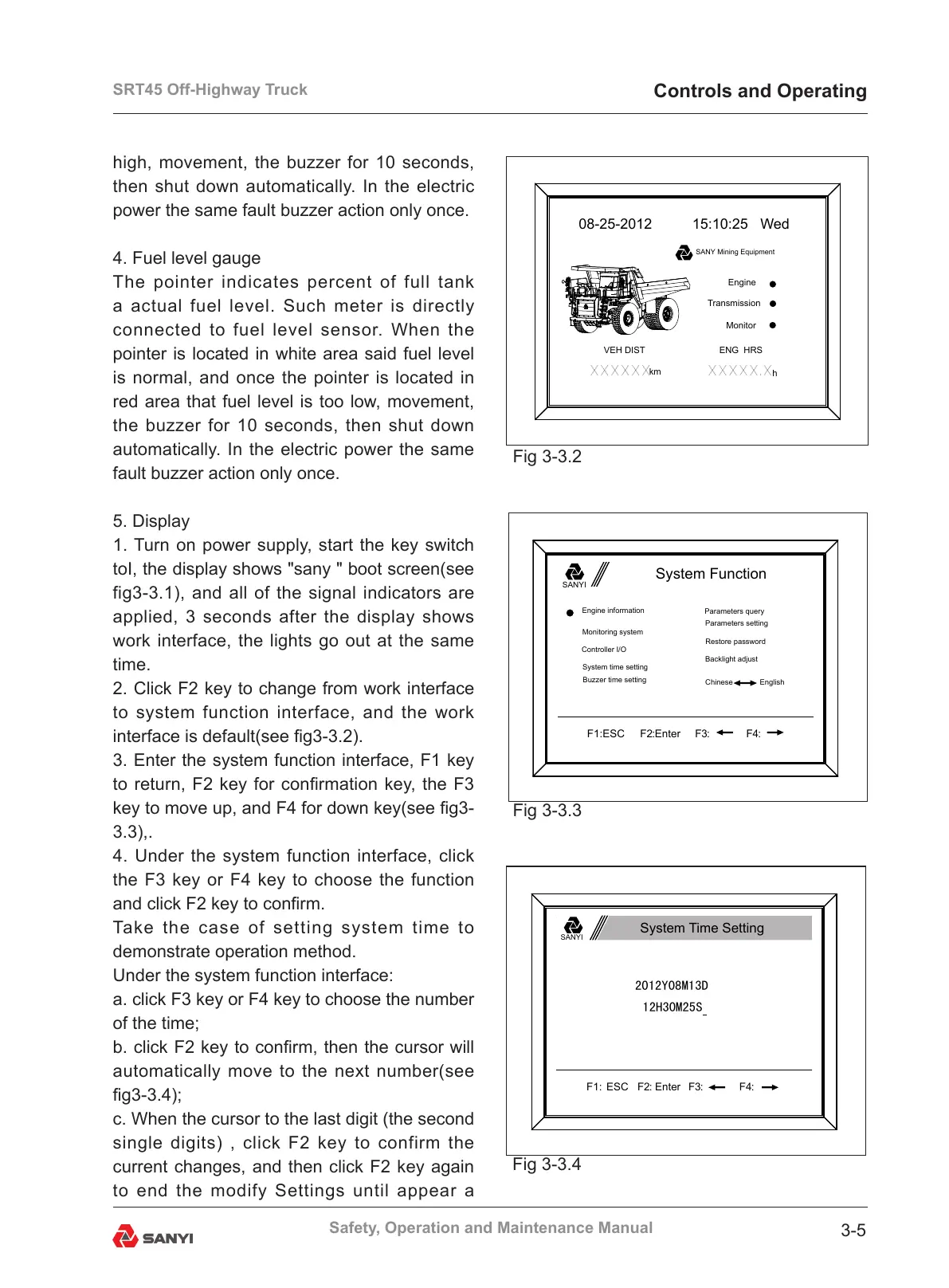

SRT45 Off-Highway Truck
3-5
Safety, Operation and Maintenance Manual
high, movement, the buzzer for 10 seconds,
then shut down automatically. In the electric
power the same fault buzzer action only once.
4. Fuel level gauge
The pointer indicates percent of full tank
a actual fuel level. Such meter is directly
connected to fuel level sensor. When the
pointer is located in white area said fuel level
is normal, and once the pointer is located in
red area that fuel level is too low, movement,
the buzzer for 10 seconds, then shut down
automatically. In the electric power the same
fault buzzer action only once.
5. Display
1. Turn on power supply, start the key switch
toΙ, the display shows "sany " boot screen(see
fig3-3.1), and all of the signal indicators are
applied, 3 seconds after the display shows
work interface, the lights go out at the same
time.
2. Click F2 key to change from work interface
to system function interface, and the work
interface is default(see g3-3.2).
3. Enter the system function interface, F1 key
to return, F2 key for conrmation key, the F3
key to move up, and F4 for down key(see g3-
3.3),.
4. Under the system function interface, click
the F3 key or F4 key to choose the function
and click F2 key to conrm.
Take the case of setting system time to
demonstrate operation method.
Under the system function interface:
a. click F3 key or F4 key to choose the number
of the time;
b. click F2 key to conrm, then the cursor will
automatically move to the next number(see
g3-3.4);
c. When the cursor to the last digit (the second
single digits) , click F2 key to confirm the
current changes, and then click F2 key again
to end the modify Settings until appear a
08-25-2012 15:10:25 Wed
Engine
Transmission
ENG HRS
VEH DIST
XXXXX.X
XXXXXX
h
km
Monitor
SANY Mining Equipment
System time setting
Parameters query
Engine information
Monitoring system
Controller I/O
Parameters setting
Backlight adjust
Chinese English
F1:ESC F2:Enter F3: F4:
Buzzer time setting
Restore password
System Function
SANYI
Fig 3-3.2
Fig 3-3.3
F1: ESC F2: Enter F3: F4:
SANYI
2012Y08M13D
12H30M25S
System Time Setting
Fig 3-3.4
Controls and Operating
