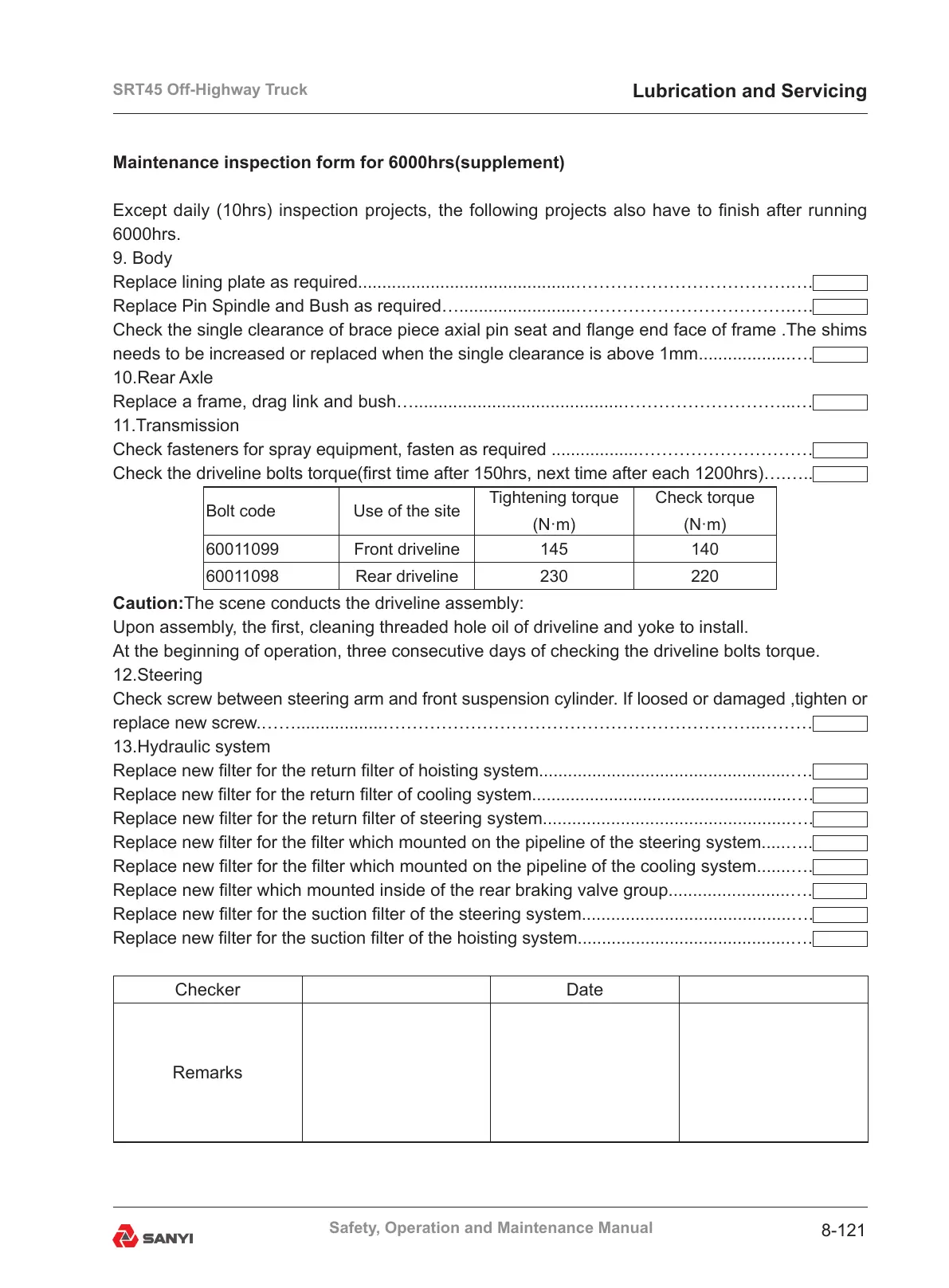

SRT45 Off-Highway Truck
8-121
Safety, Operation and Maintenance Manual
Maintenance inspection form for 6000hrs(supplement)
Except daily (10hrs) inspection projects, the following projects also have to nish after running
6000hrs.
9. Body
Replace lining plate as required.............................................……………………………….….
Replace Pin Spindle and Bush as required…........................……………………………….….
Check the single clearance of brace piece axial pin seat and ange end face of frame .The shims
needs to be increased or replaced when the single clearance is above 1mm...................….
10.Rear Axle
Replace a frame, drag link and bush…...........................................………………………...…
11.Transmission
Check fasteners for spray equipment, fasten as required ..................…………………………
Check the driveline bolts torque(rst time after 150hrs, next time after each 1200hrs)….…..
Bolt code Use of the site
Tightening torque
(N·m)
Check torque
(N·m)
60011099 Front driveline 145 140
60011098 Rear driveline 230 220
Caution:
The scene conducts the driveline assembly:
Upon assembly, the rst, cleaning threaded hole oil of driveline and yoke to install.
At the beginning of operation, three consecutive days of checking the driveline bolts torque.
12.Steering
Check screw between steering arm and front suspension cylinder. If loosed or damaged ,tighten or
replace new screw.……..................………………………………………………………..………
13.Hydraulic system
Replace new lter for the return lter of hoisting system....................................................….
Replace new lter for the return lter of cooling system......................................................….
Replace new lter for the return lter of steering system...................................................….
Replace new lter for the lter which mounted on the pipeline of the steering system.....…..
Replace new lter for the lter which mounted on the pipeline of the cooling system.......….
Replace new lter which mounted inside of the rear braking valve group.........................….
Replace new lter for the suction lter of the steering system...........................................….
Replace new lter for the suction lter of the hoisting system............................................….
Checker Date
Remarks
