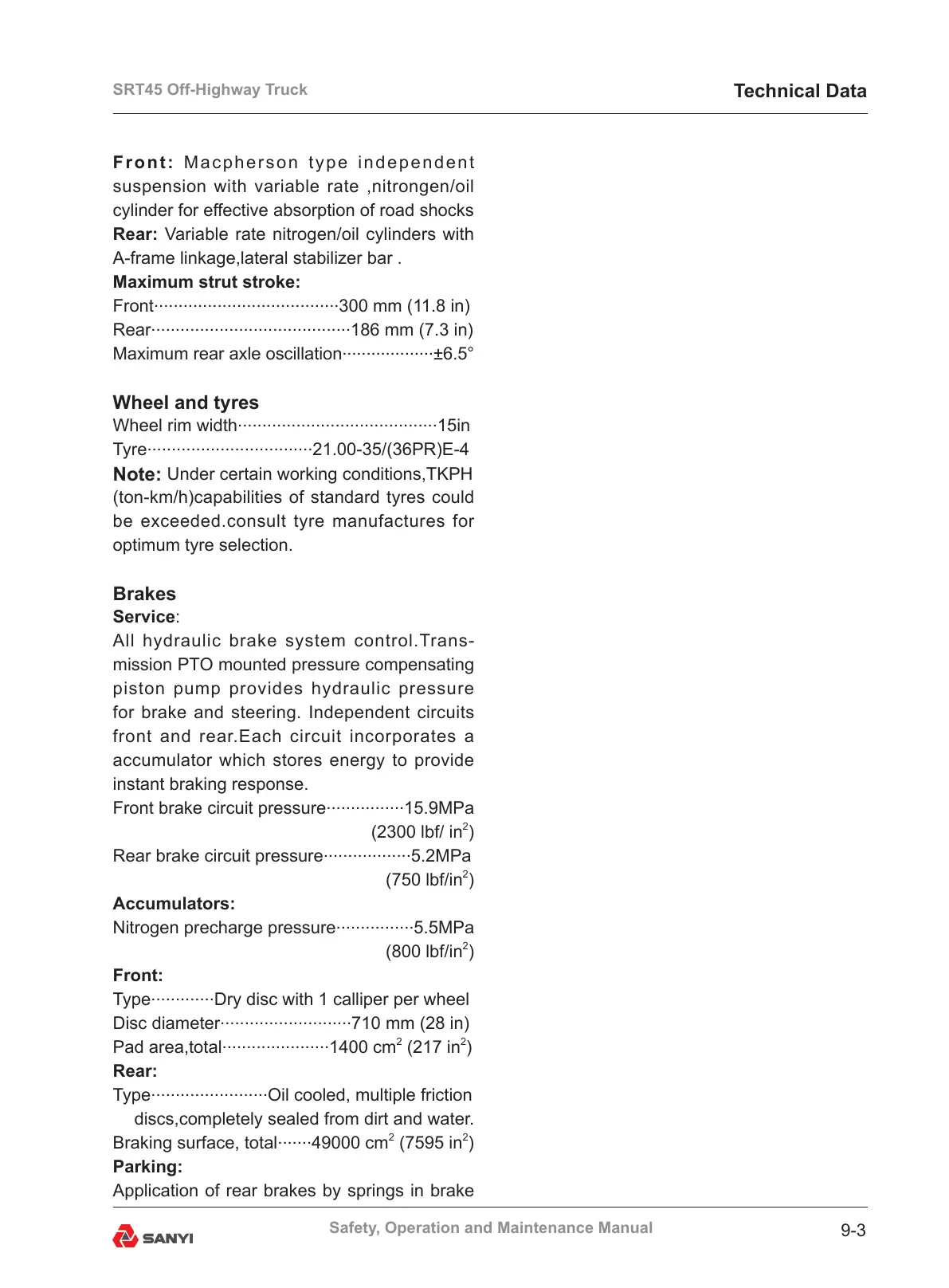

SRT45 Off-Highway Truck
9-3
Safety, Operation and Maintenance Manual
Fr on t:
Ma cp he rs on t yp e in de pe nd en t
suspension with variable rate ,nitrongen/oil
cylinder for effective absorption of road shocks
Rear:
Variable rate nitrogen/oil cylinders with
A-frame linkage,lateral stabilizer bar .
Maximum strut stroke:
Front
......................................
300 mm (11.8 in)
Rear
.........................................
186 mm (7.3 in)
Maximum rear axle oscillation
...................
±6.5°
Wheel and tyres
Wheel rim width
.........................................
15in
Tyre
..................................
21.00-35/(36PR)E-4
Note:
Under certain working conditions,TKPH
(ton-km/h)capabilities of standard tyres could
be exceeded.consult tyre manufactures for
optimum tyre selection.
Brakes
Service
:
All hydraulic brake system control.Trans-
mission PTO mounted pressure compensating
piston pump provides hydraulic pressure
for brake and steering. Independent circuits
front and rear.Each circuit incorporates a
accumulator which stores energy to provide
instant braking response.
Front brake circuit pressure
................
15.9MPa
(2300 lbf/ in
2
)
Rear brake circuit pressure
..................
5.2MPa
(750 lbf/in
2
)
Accumulators:
Nitrogen precharge pressure
................
5.5MPa
(800 lbf/in
2
)
Front:
Type
.............
Dry disc with 1 calliper per wheel
Disc diameter
...........................
710 mm (28 in)
Pad area,total
......................
1400 cm
2
(217 in
2
)
Rear:
Type
........................
Oil cooled, multiple friction
discs,completely sealed from dirt and water.
Braking surface, total
.......
49000 cm
2
(7595 in
2
)
Parking:
Application of rear brakes by springs in brake
Technical Data
