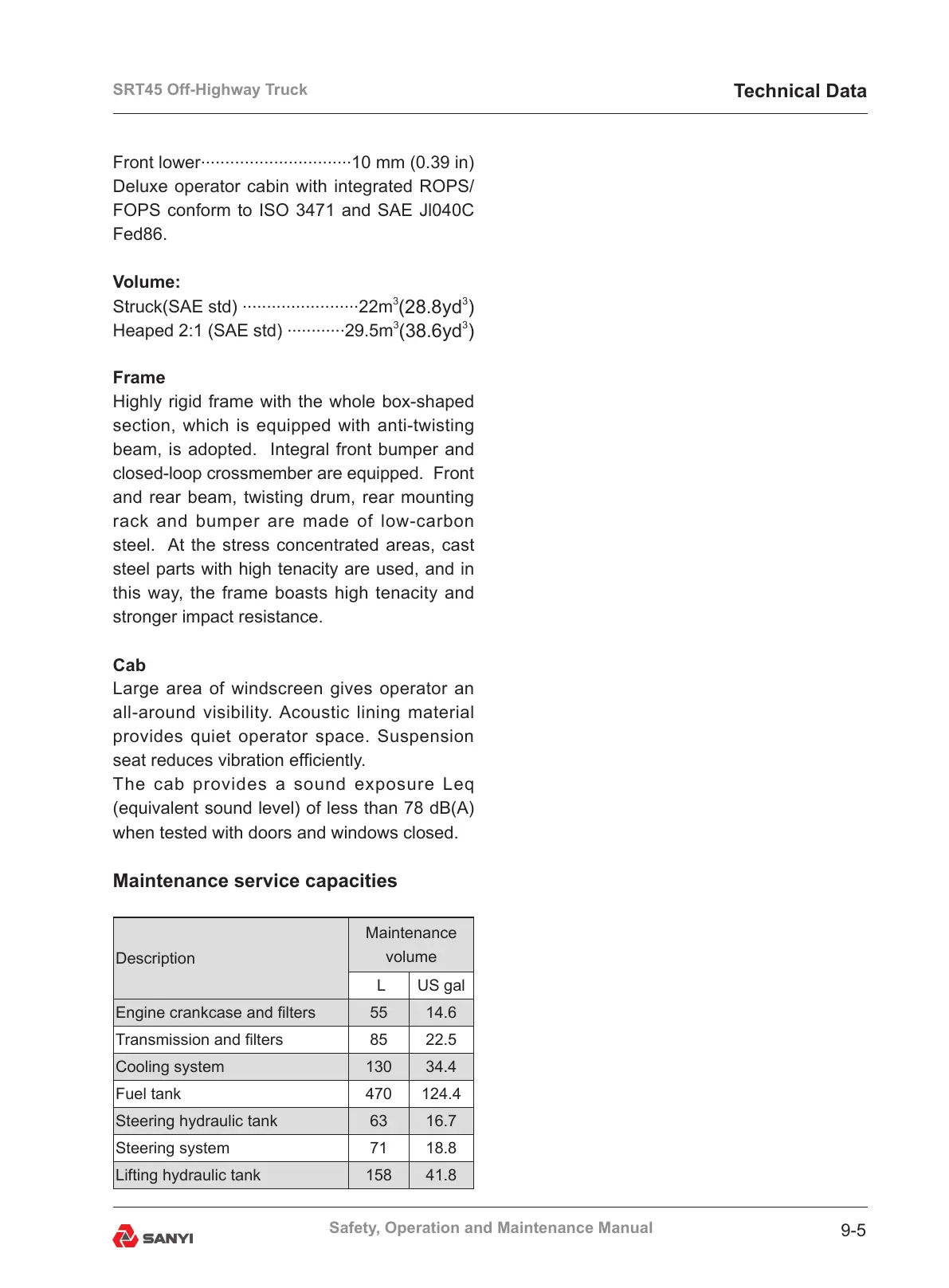

SRT45 Off-Highway Truck
9-5
Safety, Operation and Maintenance Manual
Front lower
...............................
10 mm (0.39 in)
Deluxe operator cabin with integrated ROPS/
FOPS conform to ISO 3471 and SAE Jl040C
Fed86.
Volume:
Struck(SAE std)
........................
22m
3
(28.8yd
3
)
Heaped 2:1 (SAE std)
............
29.5m
3
(38.6yd
3
)
Frame
Highly rigid frame with the whole box-shaped
section, which is equipped with anti-twisting
beam, is adopted. Integral front bumper and
closed-loop crossmember are equipped. Front
and rear beam, twisting drum, rear mounting
rack and bumper are made of low-carbon
steel. At the stress concentrated areas, cast
steel parts with high tenacity are used, and in
this way, the frame boasts high tenacity and
stronger impact resistance.
Cab
Large area of windscreen gives operator an
all-around visibility. Acoustic lining material
provides quiet operator space. Suspension
seat reduces vibration efciently.
The cab provides a sound exposure Leq
(equivalent sound level) of less than 78 dB(A)
when tested with doors and windows closed.
Maintenance service capacities
Description
Maintenance
volume
L US gal
Engine crankcase and lters 55 14.6
Transmission and lters 85 22.5
Cooling system 130 34.4
Fuel tank 470 124.4
Steering hydraulic tank 63 16.7
Steering system 71 18.8
Lifting hydraulic tank 158 41.8
Technical Data
