PY Manual Copyright © 2006 SANYO DENKI AMERICA, Inc.
17

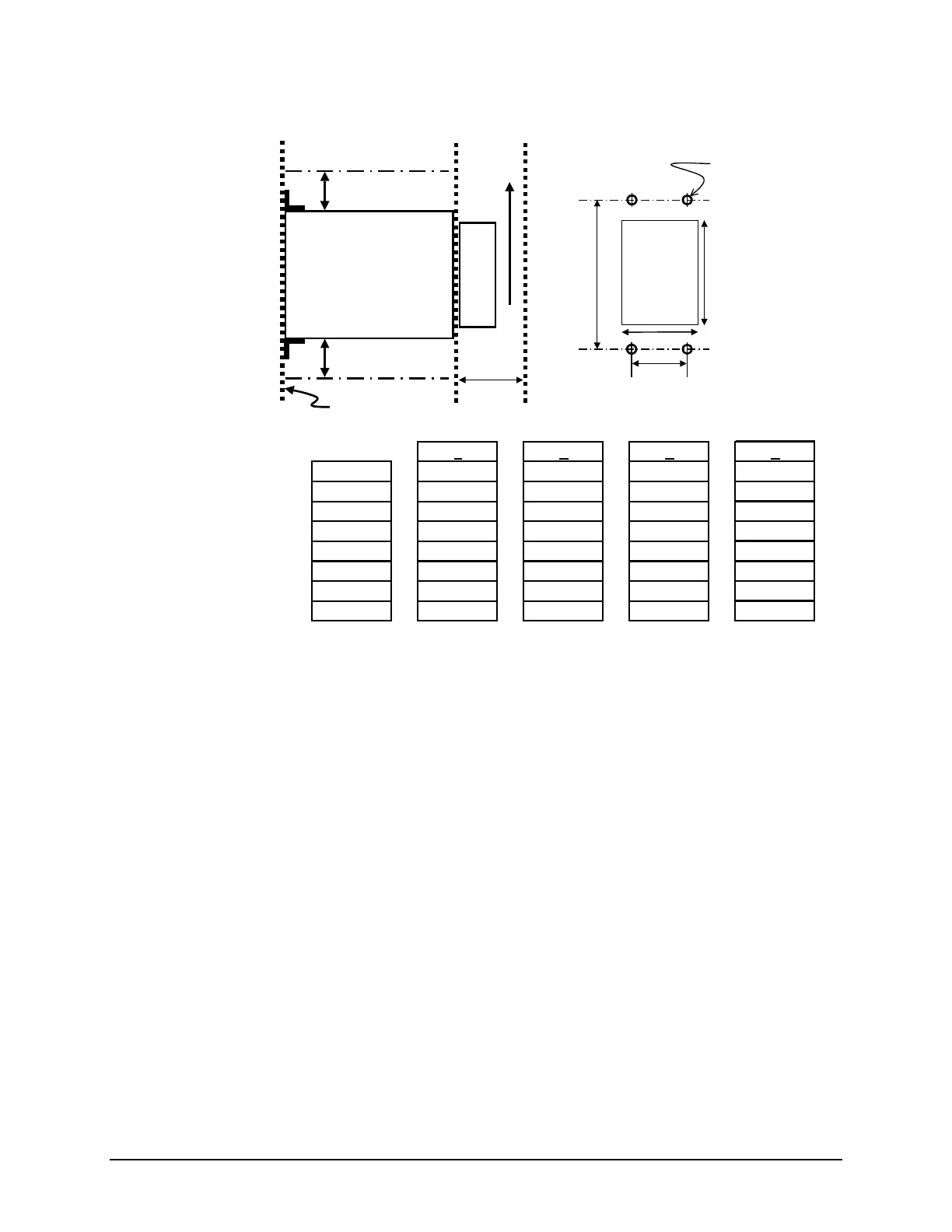

A B C D
PY2A015 160 mm NA 25 mm NA
PY2A030 160 mm NA 25 mm NA
PY2A050 160 mm NA 50 mm NA
PY0A015 225 mm >205 mm 25 mm NA
PY0A030 225 mm >205 mm 25 mm NA
PY0A050 225 mm >212 mm 50 mm >67 mm
PY0A100 225 mm >212 mm 50 mm >92 mm
PY0A150 225 mm >212 mm 75 mm >142 mm
 Only the PY0A050, PY0A100, and PY0A150 are equipped with the “cooling fins”.

50 mm or more
50 mm or more
Front Surface
Mounting
4-M5
A
C
Front
Surface
Cut-out
D
B
Cooling
A
ir Flow
90 mm
or more
Fins
