PY Manual Copyright © 2006 SANYO DENKI AMERICA, Inc.
39

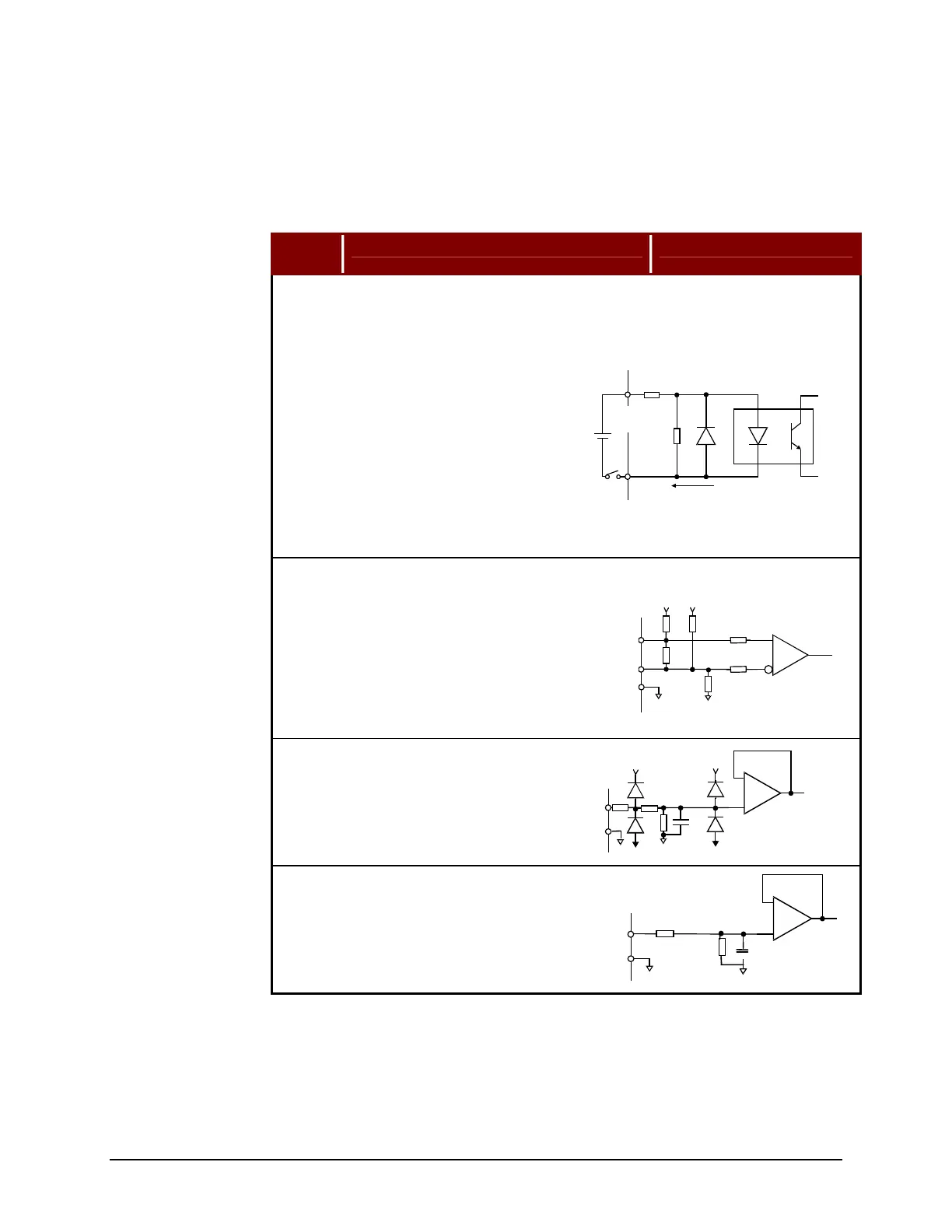

Input/Output Internal Circuits
Table 12: CN1 Internal Circuits
Circuit
Type
Description Figure
1 Photo-coupler Input
These inputs share a common user-supplied
5 to 24VDC supply. Connecting the input pin
to ground turns them “ON”. The required
power specification is 5-24VDC ±10%, 100
mA or more
CN1-30 RST
CN1-31 ILM
CN1-32 PROT
CN1-33 NROT
CN1-34 CLE
CN1-35 PCON/PMUL/INH/ZCMD
CN1-36 PCON/PMUL/INH/ZCMD
CN1-37 SON
2 Line Driver Inputs
This input circuit is designed to receive
signals for a line driver output equivalent to a
26LS31. It may also be connected to an open
collector type output.
CN1-26 PPC+
CN1-27 PPC-
CN1-28 NPC+
CN1-29 NPC-
3 Analog Input
CN1-21 VCMD
CN1-22 TCOMP/TCMD
4 Analog Input
This input is designed to receive positive
analog voltage.
CN1-18 PIL
5mA
3.9K
2.2K
DC 5V
to 24V
390
1K
1.5K
1K
SG
SG
5V5V
Equivalent to
26LS32
100
100
G
SG
5V
-5V
.047µ
+
-
6.8K
SG
SG
+
-
