PY Manual Copyright © 2006 SANYO DENKI AMERICA, Inc.
40

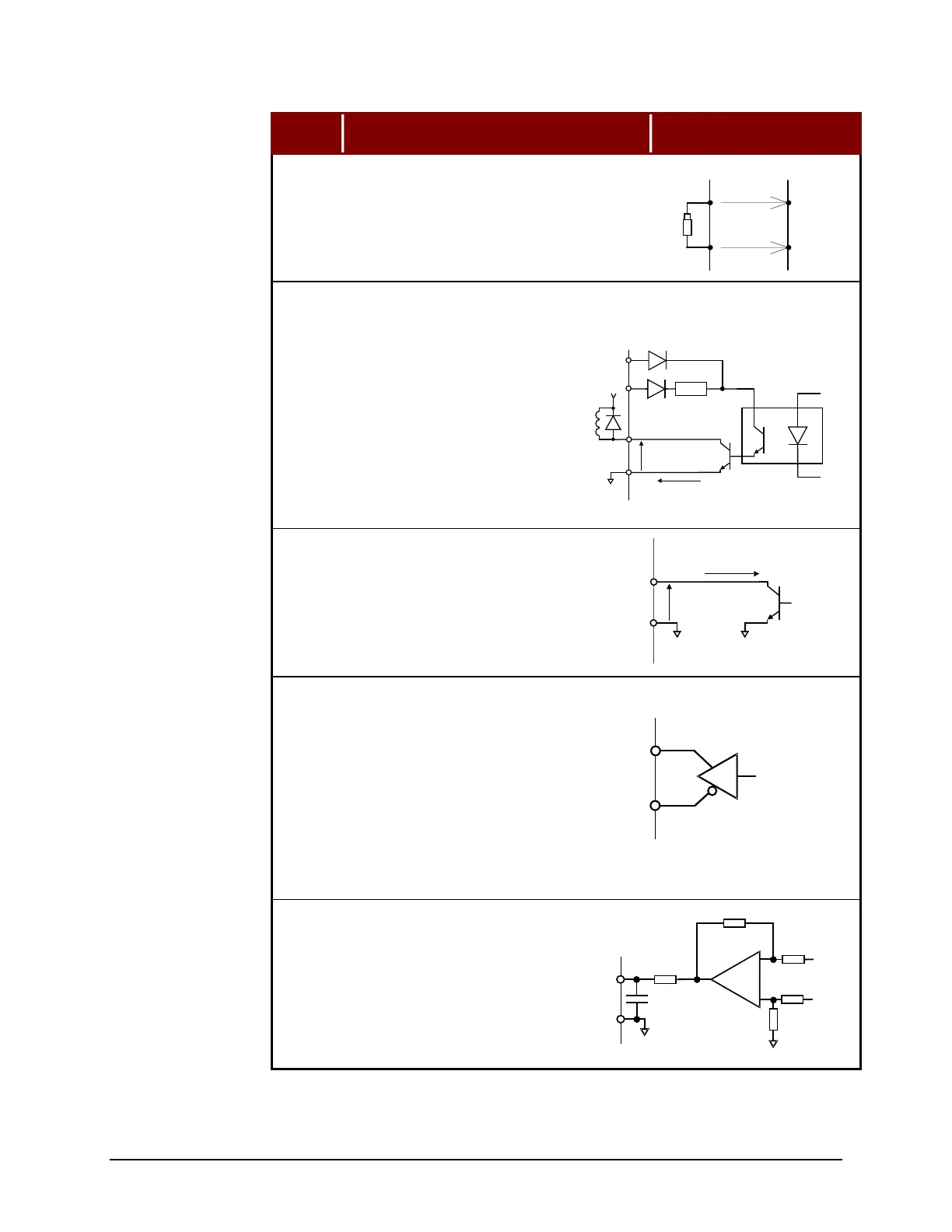

Circuit
Type
Description Figure
5 Analog Input
This input is designed to receive negative
analog voltage.
CN1-19 NIL
6 Isolated Open Collector Output
All outputs share a common 5 or 12 to 24Vdc
supply (5Vdc ±10% 20ma or more, 12-24Vdc
±10% 20mA or more)
CN1-39 INP/LTG
CN1-40 ILIM
CN1-41 SRDY
CN1-42 HBON
CN1-43 ALM1
CN1-44 ALM2
CN1-45 ALM4
CN1-46 ALM8
7 Open Collector Output
CN1-11 COP
8 Line Driver Output
This line driver output circuit is designed to
drive signals for a line receiver input
equivalent to a 26LS32. Signals valid about 1
second after control power is applied.
CN1-3 A+
CN1-4 A-
CN1-5 B+
CN1-6 B-
CN1-7 C+
CN1-8 C-
9 Analog Output
CN1-15 MON1
CN1-16 MON2
1KΩ
SG
+
-
SG
Max 50 mA (12 to 24 V)
and max 10 mA (5V)
1 0
COM
Max
30V
Regulator
5V
12-24V
+E
SG
Max 10 mA
Max
30V
SG
Equivalent to 26LS31
