PY Manual Copyright © 2006 SANYO DENKI AMERICA, Inc.
56
Power “On” Sequence

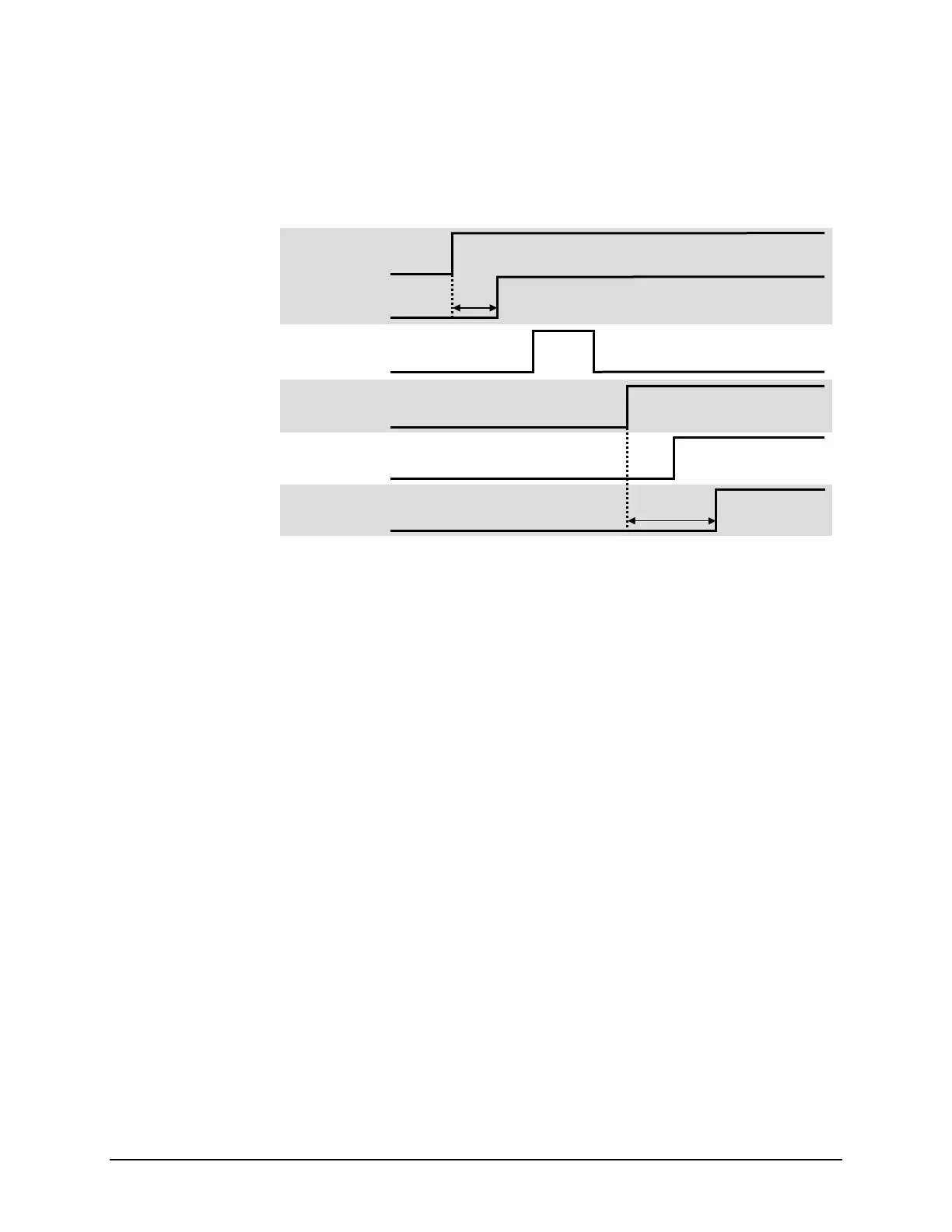

The timing diagram and circuit diagram below details the proper sequence of operation
for turning on the power to the amplifier.
1 Second
or less
Approximately
0.7 Seconds
Release
Control Power ON (r,t)
Sequence Power ON (CN1)
Amplifier Ready Output (RDY)
Start Ready ON (external switch)
Main Circuit Power Supply (R,S,T)
Dynamic Brake Release
Start Ready Complete Output (SRDY)
