Sanyo Denki PY2A030 - CN2 Motor Encoder Connector; Table 14: CN2 Pin Assignments

PY Manual Copyright © 2006 SANYO DENKI AMERICA, Inc.
45
CN2 Motor Encoder Connector

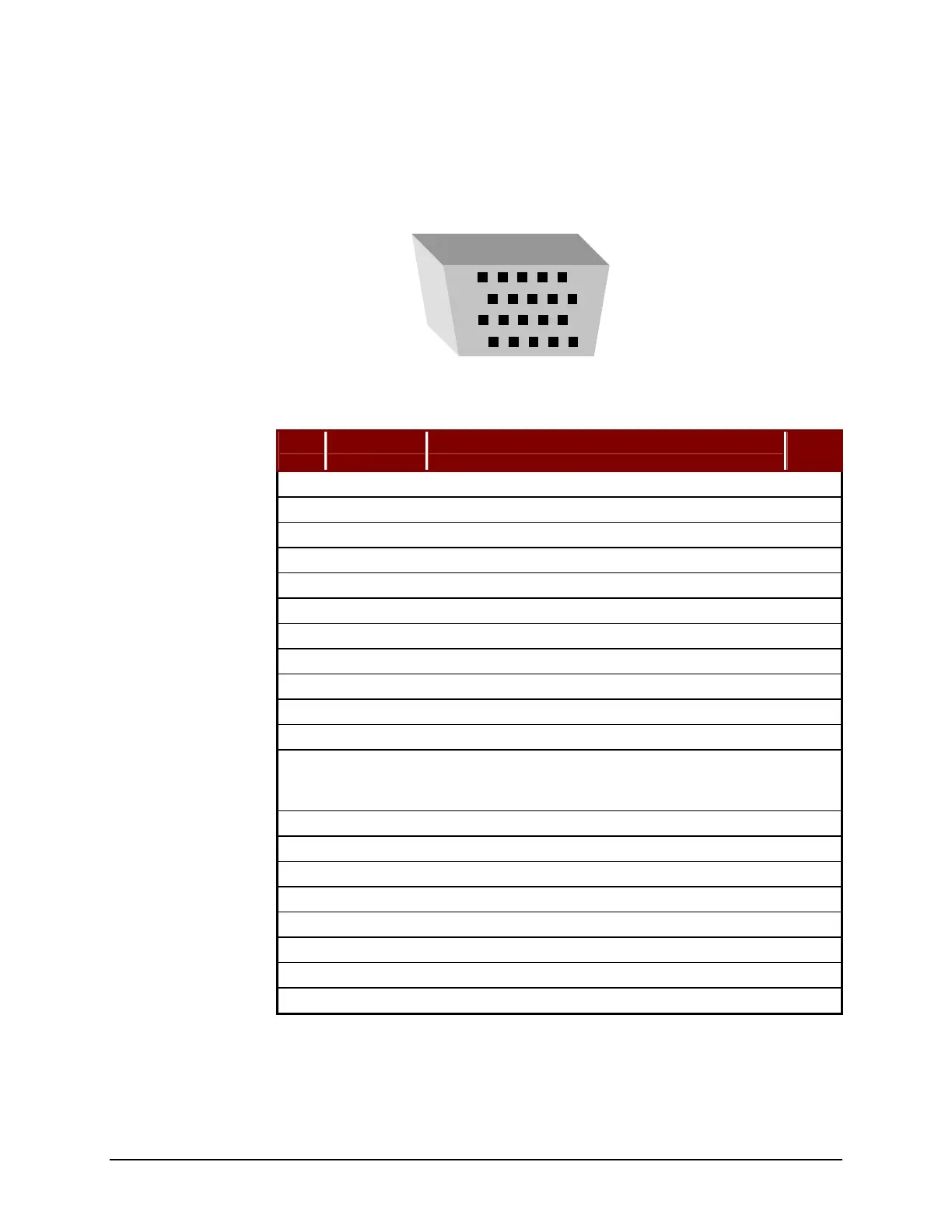

The motor encoder is connected to the amplifier via the CN2 connector. The figure
below identifies the pin assignment for this connector.
Table 14: CN2 Pin Assignments
Pin Abbreviation Description
Circuit
Type
1 None Reserved N/A
2 None Reserved N/A
3 A+ Encoder Positive A Signal Input 2
4 A- Encoder Negative A Signal Input 2
5 B+ Encoder Positive B Signal Input 2
6 B- Encoder Negative B Signal Input 2
7 C+ Encoder Positive Index Signal Input 2
8 C- Encoder Negative Index Signal Input 2
9 None Reserved N/A
10 None Reserved N/A
11 SG Signal Ground N/A
12 SEN
Sense. This signal is used to sense the power supply
voltage at the motor. The amplifier then regulates the
supply to maintain the proper voltage at the encoder.
N/A
13 None Reserved N/A
14 None Reserved N/A
15 None Reserved N/A
16 None Reserved N/A
17 +5V 5 Volt Power N/A
18 SG Signal Ground N/A
19 +5V 5 Volt Power N/A
20 SG Signal Ground N/A
2
1
12
11
10
9
20
19
