PY Manual Copyright © 2006 SANYO DENKI AMERICA, Inc.
30

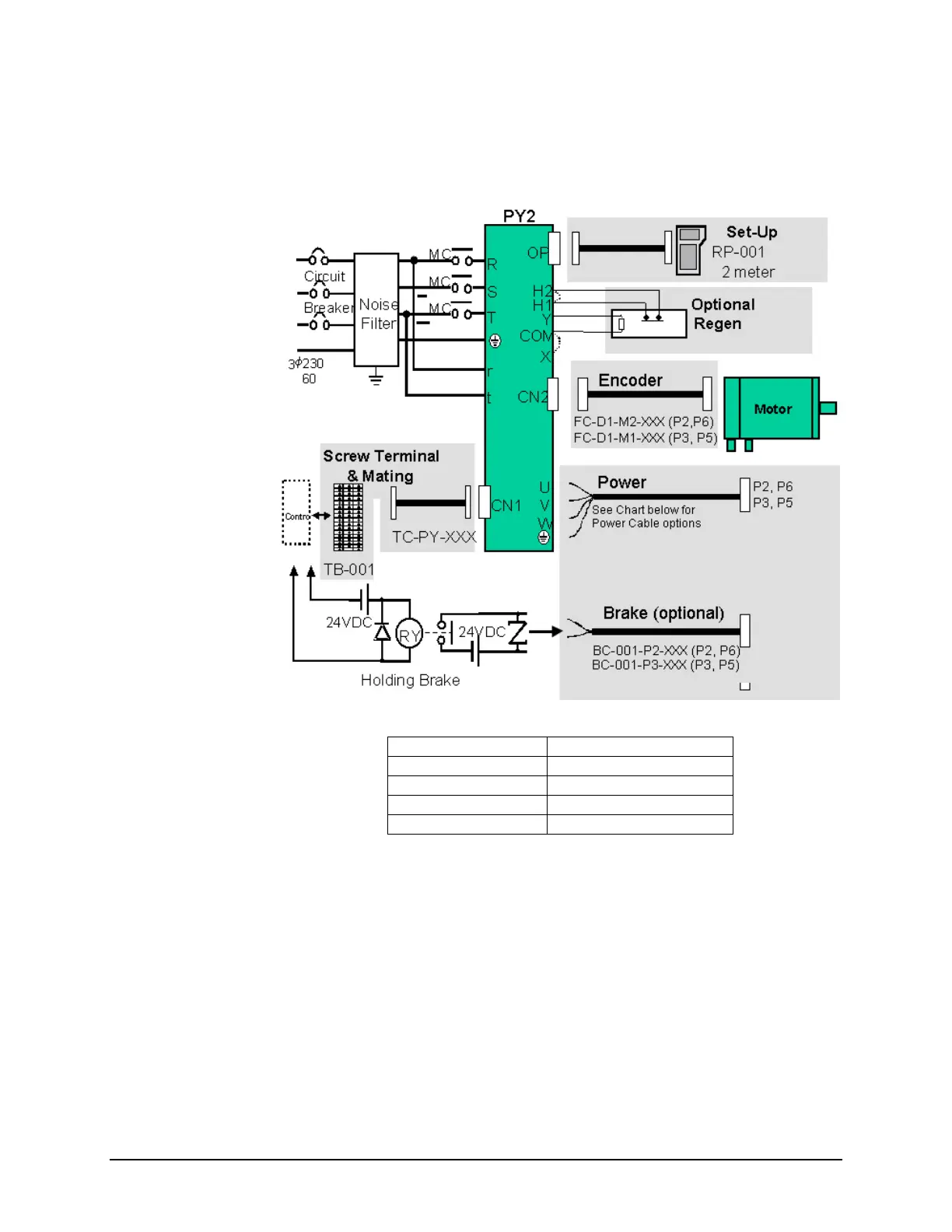

Below is a simplified connection diagram for a PY2. This diagram shows how to connect
a system using standard cables. A detailed connection diagram follows.
Power Cable Part # Motor
PC-D2-M2-XXX
P2(1.5kW)
PC-D2-M3-XXX
P6(1.5kW)
PC-D1-M1-XXX
P3 P5 (except P5 1kW)
PC-D2-M1-XXX
P5(1kW)
For 1Φ (single phase) power, do not connect 230VAC to the “S” terminal of the bus
power. Leave this terminal unconnected.
Cable Connection
Diagram for PY2
