Sanyo PLC-WU3800 Service Manual

-61-
Check the indicators for projector condition.
• • • green.
• • • red • • • off
• • • blinks green.
Q When the life of the projection lamp draws to an end, the LAMP REPLACE indicator lights yellow. When
this indicator lights yellow, replace the projection lamp with a new one promptly. Reset the lamp replace-
ment counter after replacement of the lamp.

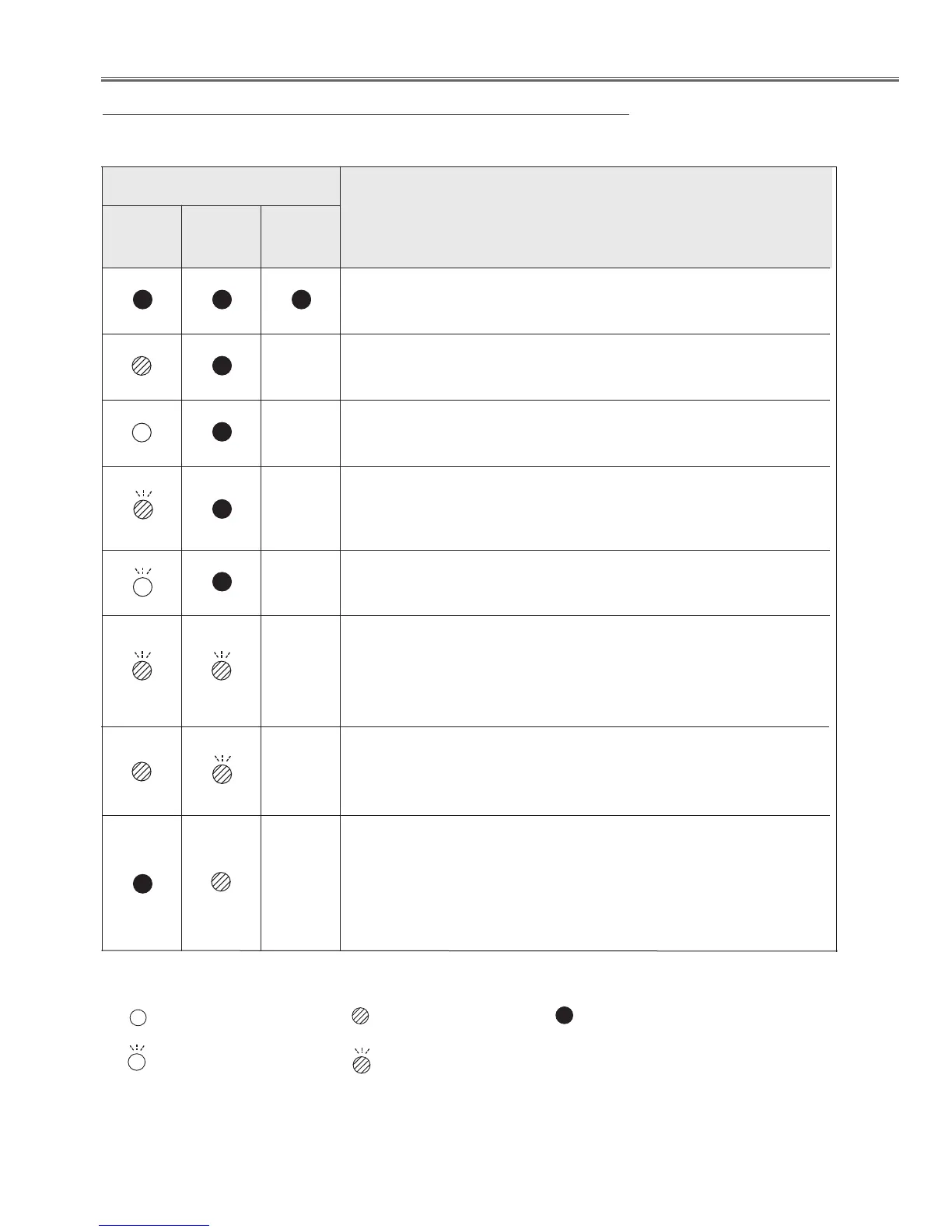

Indicators and Projector Condition
• • • blinks red.
Troubleshooting
The projector is off. (The AC power cord is unplugged.)
The projector is in stand-by mode. Press the ON/STAND-BY button
to turn on the projector.
Projector Condition
POWER
red/green
Indicators
LAMP
REPLACE
yellow
WARNING
red
Q
The projector is preparing for stand-by or the projection lamp is
being cooled down. The projector cannot be turned on until cooling
is completed and the POWER indicator stops blinking.
Q
The temperature inside the projector is abnormally high. The
projector cannot be turned on. When the projector is cooled down
enough and the temperature returns to normal, the POWER
indicator stops blinking and the projector can be turned on. (The
WARNING indicator keeps blinking.) Check and clean the filter.
Q
The projector detects an abnormal condition and cannot be turned
on. Unplug the AC power cord and plug it again to turn on the
projector. If the projector is turned off again, the projector has an
internal power error.
Q
The projector is operating normally.
Q
The projector is in the Power management mode.
Q
Q
The projector has been cooled down enough and the temperature
returns to normal. When turning on the projector, the WARNING
indicator stops blinking. Check and clean the air filter.
