-24-
Optical Adjustments
[Before Adjustment]
- Input a 100% of black raster signal.
1 Loosen a screw A (Fig.1) on the polarized glass mounting base
which you intend to adjust.
2 Adjust the slot B to obtain the darkest brightness on the screen by
using a slot screwdriver.
3 Tighten the screw A to fix the polarized glass mounting base.
Repeat steps 1 to 3 for remaining polarized glasses.

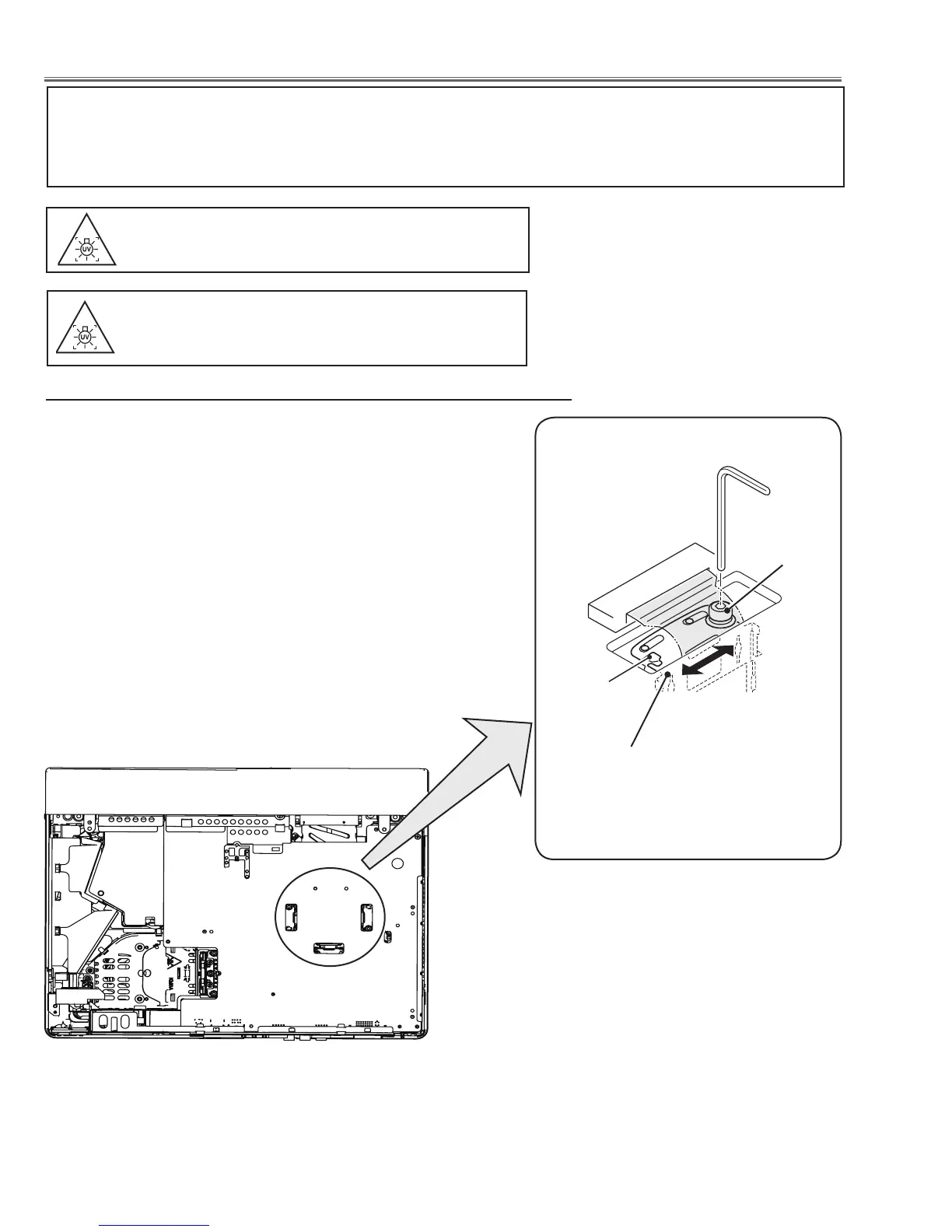

Fig.1
Polarized glass
mounting base
A
Contrast adjustment
Slot B
Before taking optical adjustments below, remove the Cabinet Top following to the “Mechanical Disas-
sembly”.
Adjustments require a 2.0mm hex wrench and a slot screwdriver.
Note: Do not disconnect connectors on the main board, because the projector cannot turn on due to
operate the power failure protection.
WARNING : USE UV RADIATION EYE AND SKIN PRO-
TECTION DURING SERVICING
CAUTION: To prevent suffer of UV radiation, those
adjustment must be completed within 25
minutes.
-This adjustment should be taken in order of G-Panel,R-Panel and B-Panel.
-This adjustment should be taken in the darkest room to adjust preciously.
