-17-

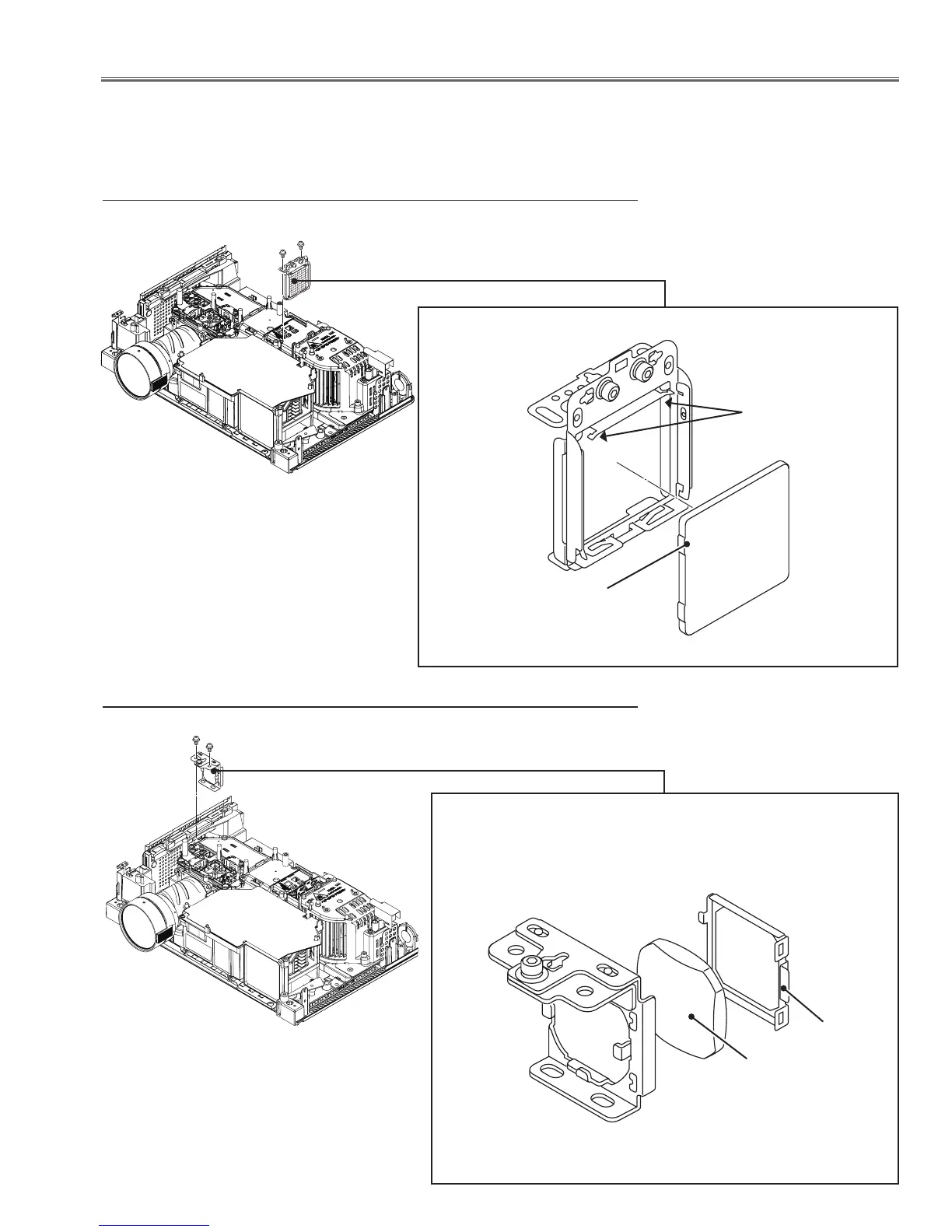

Optical Parts Disassembly
Before taking this procedure, remove Cabinet Top , Cabinet Front and Main Board following to the “Mechanical Disas-
sembly”.
Disassembly requires a 2.0mm hex wrench.
z Integrator lens-in disassembly
Fig.1
x Relay lens-out disassembly
Fig.2
Note: The optical unit should be removed from the cabinet bottom before removing the projection lens.
Hooks
Integrator lens-in
Integrator Lens-In Ass'y
(M2.5x5)x2
* Rugged surface
(Behind)
Relay lens-out
Relay lens-out Ass'y
(M2.5x5)x2
Spring
To Next Page
