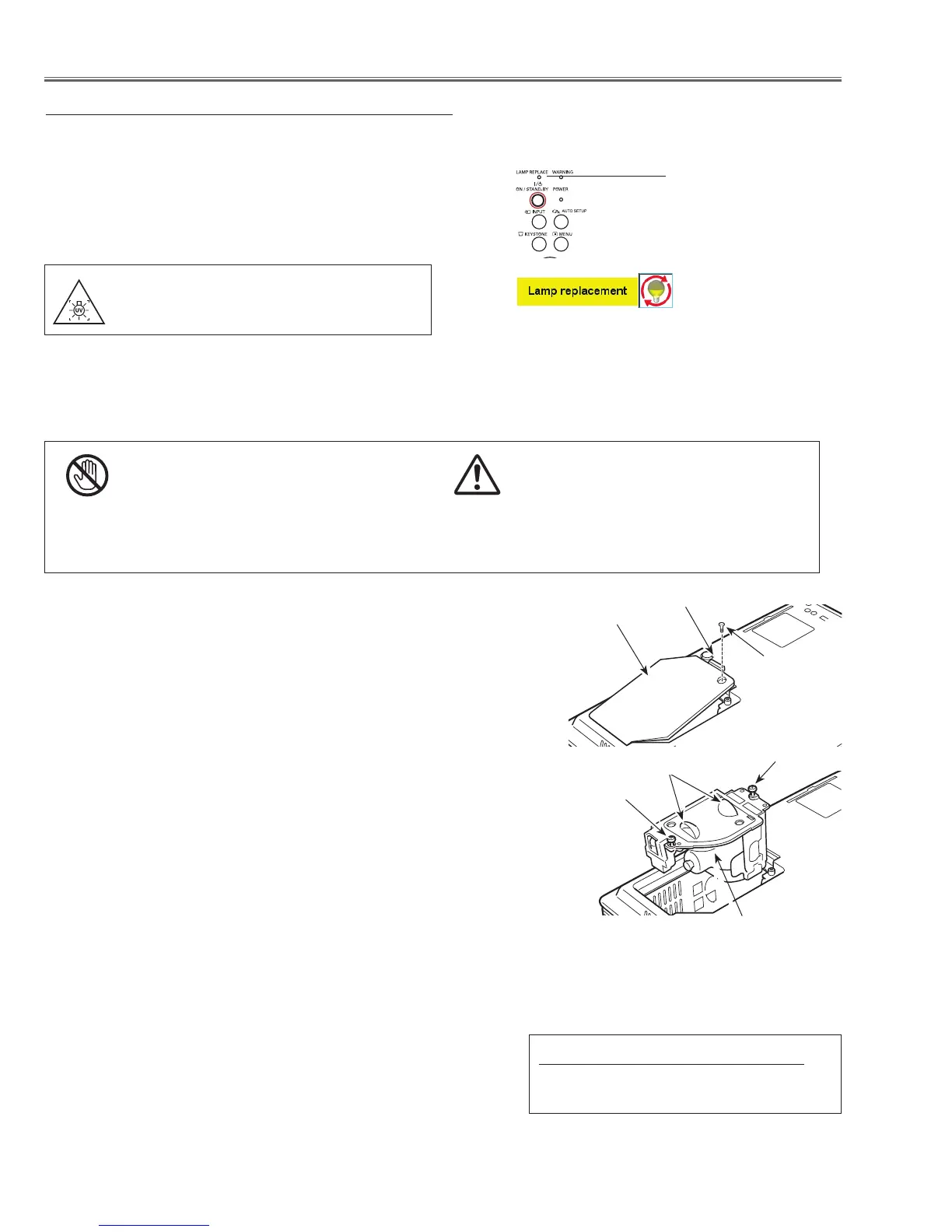

Lamp Replacement
Top Control
Lamp replacement icon
ORDER REPLACEMENT LAMP
Type No. POA-LMP111
Service Parts No. 610 333 9740
Maintenance
When the projection lamp of the projector reaches its end of life,
the Lamp replacement icon appears on the screen and LAMP
REPLACE indicator lights yellow. Replace the lamp with a new
one promptly. The timing when the LAMP REPLACE indicator
should light is depending on the lamp mode.
WARNING:
TURN OFF THE UV LAMP BEFORE OPEN-
ING THE LAMP COVER
CAUTION
CAUTION
Note:
The Lamp replacement icon will not appear when
the Display function is set to Off, during Freeze,
or No show”.
Follow these steps to replace the lamp.
For continued safety, replace with a lamp of the
same type. Do not drop a lamp or touch a glass
bulb! The glass can shatter and may cause injury.
Allow a projector to cool for at least 45 minutes
before you open the Lamp cover. The inside of the
projector can become very hot.
LAMP REPLACE
indicator
Turn off the projector and unplug the AC power cord. Let
the projector cool for at least 45 minutes.
Loosen the two (2) screws that secure the lamp. Lift the
lamp out of the projector by using the handle.
Replace the lamp with a new one and secure the two
(2) screws. Make sure that the lamp is set properly.
Close the lamp cover.
Remove the one (1) screw on the lamp cover and open
the lamp cover.
Connect the AC power cord to the projector and turn on
the projector.
Reset the lamp counter.
See “Resetting the Lamp Counter” on the next page.
Handle
Screw
Lamp Cover
Press here and pull upward.
Screw
Lamp
Screw
