Sanyo PLC-WU3800 Service Manual

-60-

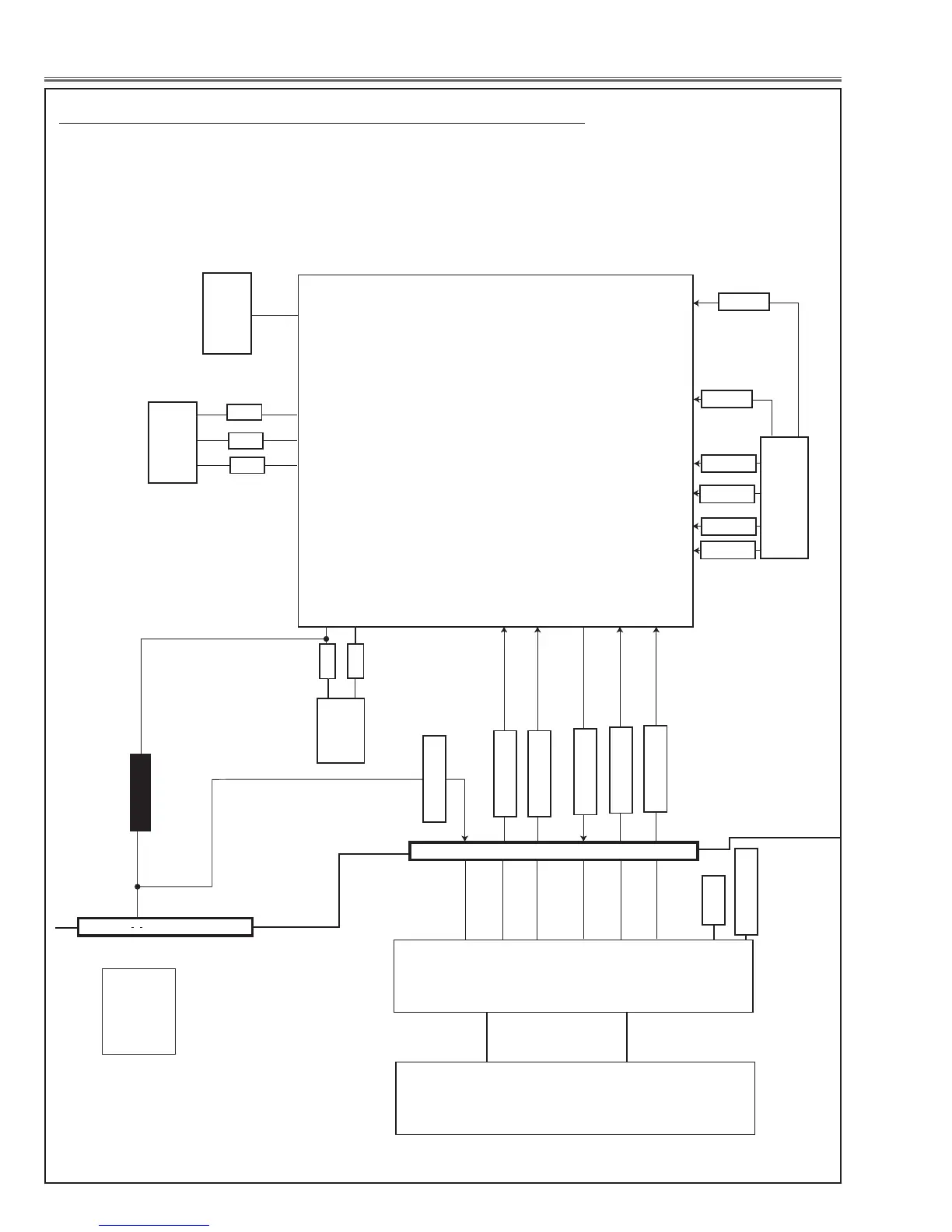

Chassis Block Diagrams
IC8803
K8001
IC8801
13
11
7
3.3V_LAN
RJ-45
3
1
8
4
X8802
PW_NET_H/L
PW_UPDATE
RXD_MCI
TXD_MCI
P-FAIL-MCI
PW_NMCLR
32
31
7
K8941
47
TPOUT+
TPOUT-
TPIN-
TPIN+
46
50
51
4
6
1
3
LED_B
LED_A
23
24
12
10
35
36
6
25.0MHZ
SO
2
SI
5
34
SCK
3 8
IC5721 DC-DC CONVERTER
K8V
IC301 SCALER (PW392)
IC1802 I/O EXPANER
D(1-15)
A(1-23)
6
K8W
61 91
92
73
72
74
MCI_ON
POWER_ON_MCI
48
50
IC8802
SCL
SDA
15
16
6
5
NETWORK
MAIN
Network circuit

Sanyo PLC-WU3800 Specifications

General

Matrix size	0.59 \
Projection distance	0.99 - 12.1 m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Screen size compatibility	40 - 300 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	±40 °
Audio input	2
Aspect ratio	16:10
Network ready	Yes
Power supply type	AC
Dimensions (WxDxH)	335.7 x 257.5 x 93.6 mm
Connectivity technology	Wired
Focus	Manual
Digital zoom	16 x
Focal length range	19.2 - 30.2 mm
Noise level	35 dB
Noise level (economic mode)	31 dB
Dot clock scanning frequency	140 MHz
Lamp type	NSHA
Lamp power	275 W
Light source type	Lamp
Service life of light source	2500 h
Service life of light source (economic mode)	3000 h
DVI port	No
Composite video in	-
Serial interface type	RS-232
USB 2.0 ports quantity	0
Supported video modes	1080i, 1080p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	White
AC input voltage	100 - 240 V
Power consumption (standby)	0.7 W
Power consumption (typical)	317 W
Power consumption (PowerSave)	280 W
Cables included	VGA

Weight and Dimensions

Depth	257.5 mm
Width	335.7 mm
Height	93.6 mm
Weight	3500 g
