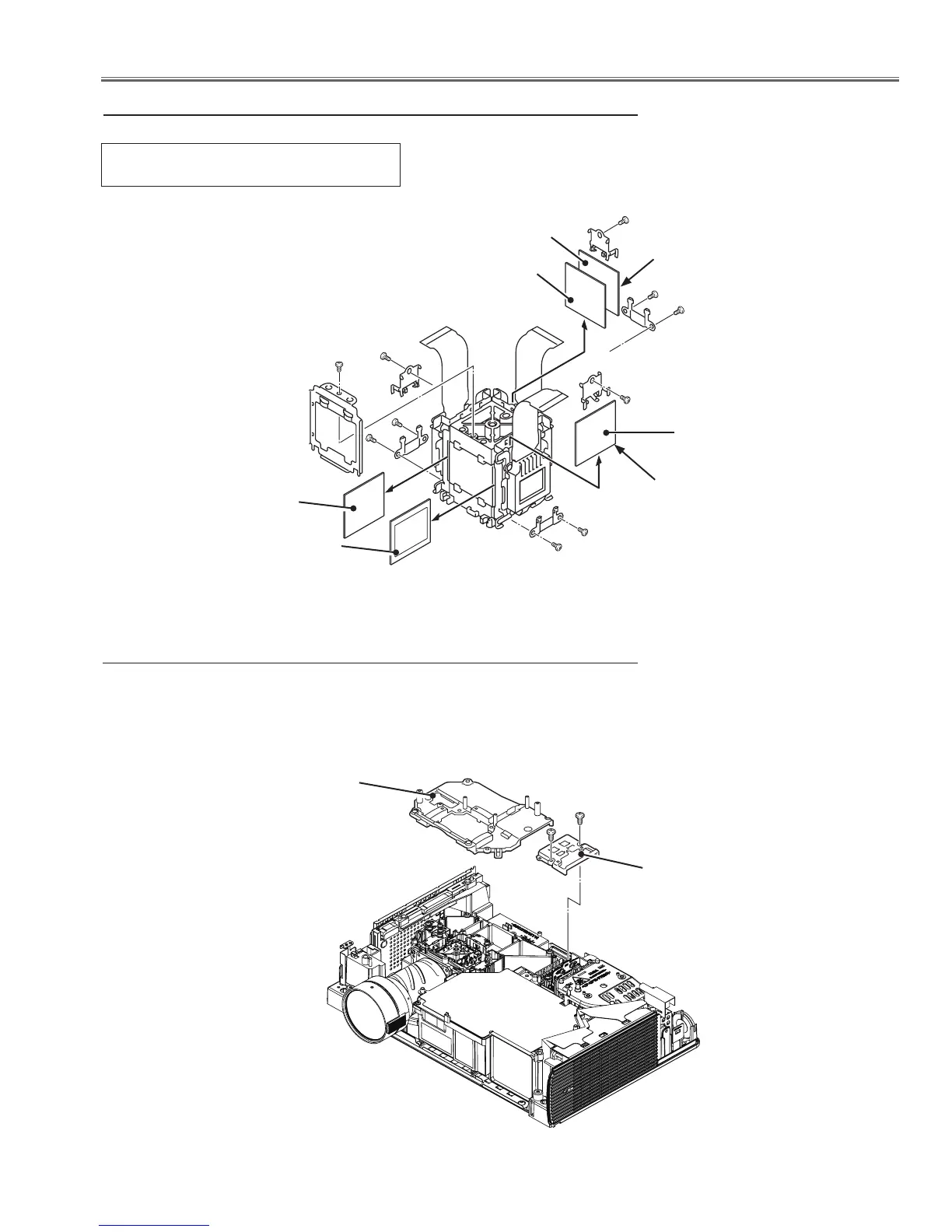

Optical Parts Disassembly
bPolarized glass, Pre-polarized glass removal
Pre-Polarized Glass(G)
(M2x2)
Film attached faces
the Prism side
(Blue)
(Red)
(Green)
Fig.5
n Optical unit top removal
(M3x8)x2
Pre-Polarized Glass(B)
Fig.6
Polarized Glass(G)
Polarized Glass(R)
Polarized Glass(B)
(M2x2)
Optical top A
Optical top B
1. Remove the Optical top A and Optical Top B.
Film attached faces the
Prism side
*Mounting the polarized glasses as the film
attached side faces the LCD panel side.
