-28-
Electrical Adjustments
[Adjustment Condition]
● Input signal
Video signal ........................
1.0Vp-p/75W terminated, 16 steps gray scale
(Composite video signal)
Component Video signal ...... 1.0Vp-p/75W terminated, 8 color 100% color
bar or 16 step gray scale (Component video
signal) (1080i)
Computer signal ................... 0.7Vp-p/75W terminated, 16 steps gray scale
(XGA)
● Image control mode ......... “Standard” mode unless otherwise noted.
Note:
* Please refer to “Service Adjustment Menu Operation” for entering the
service mode and adjusting the service data.
Circuit Adjustments

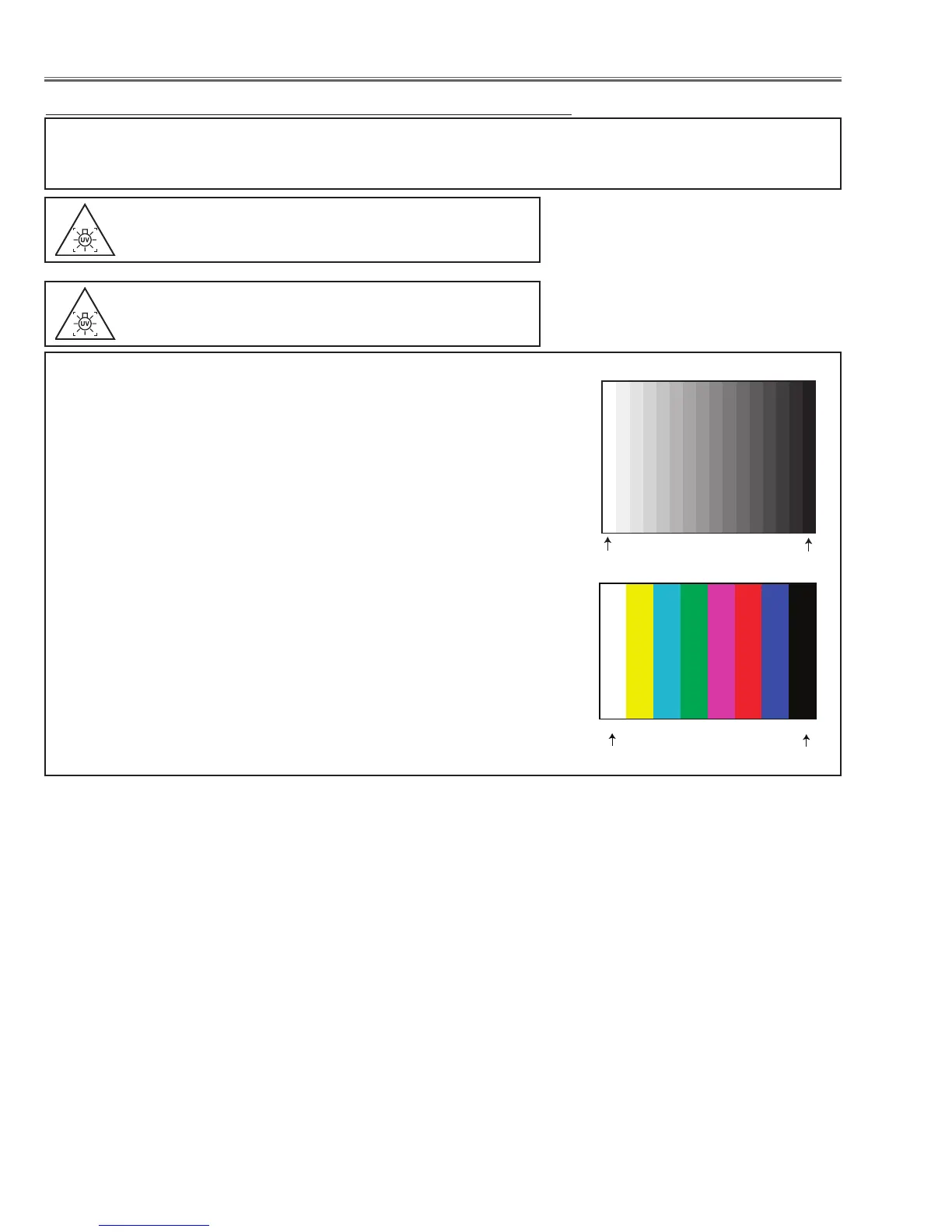

16 steps gray scale pattern
W Y C G M R B BK
White 100%
White 0%
CAUTION: The each circuit has been made by the fine adjustment at factory. Do not attempt to adjust the following
adjustments except requiring the readjustments in servicing otherwise it may cause loss of performance
and product safety. Before adjustment, please turn on the projector more than ten minutes.
WARNING : USE UV RADIATION EYE AND SKIN
PROTECTION DURING SERVICING.
CAUTION:
To prevent suffer of UV radiation, those adjustments
must be completed within 25 minutes.
8 color 100% color bar
To Next Page
