Sanyo PLC-WU3800 Service Manual

-71-

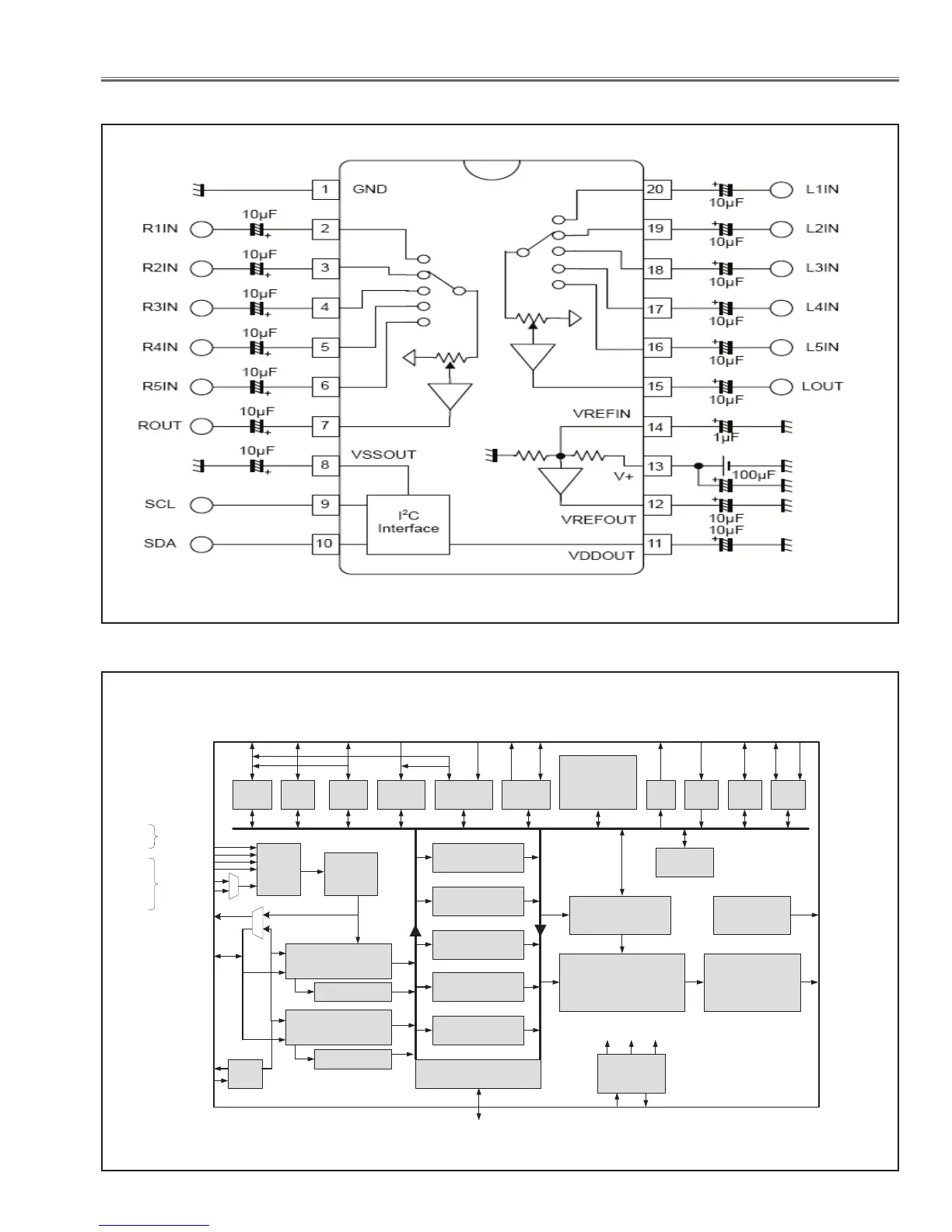

IC Block Diagrams
● NJW1156 <Audio Control, IC5001>
● PW392 <Scaler, IC301>
Display
Timing
Generator
Microprocessor Bus
Display Port
Gamma CLTs, Color
Space Expander
PWM
Interrupt
Controller
2-Wire
Serial
IR
Decoders
UART
Turbo 80186
Microprocessor
with Instruction
Cache
ROM
Interface
JTAG
DHS
DVS
DEN
DCLK
Dual LVDS
DRGB(35:0)
NMI
IRRCVR(2:0)
A(23:1),D(15:0)
BHEN,RD,WR
ROMWE,
ROMOE
CS(1:0)
EXTINT(1:0)
TDO
TMS
TCK
TCI
DAC
10-bit
ADC
ADC(7:0)DAC(3:0)
PWM(5:0) 2WIRE(2:0)
RxD0/1
TxD0/1
IN0RGB(29:0)
IN1RGB(29:0)
[or only] (59:0)
IN0/1CLK
IN0/1PEN
IN0/1VBI
IN0/1VS
IN0/1HS
IN0/1SOG
IN0/1CST
IN0/1FLD
IN0/1CLP
Input Port 0
Sync Decoder
Auto Image Optimizer
VBI Memory
Interface
VBI Memory
Interface
Input Port 1
Sync Decoder
Auto Image Optimizer
3D Video
Decoder
ADC
HDMISD[3:0)
HDMIXIN/OUT
HDMISCL/SDA
HDMISWS/CK
RXCn, RXCp,
RX0n, RX0p,
RX1n, RX1p,
RX2n, RX2p
OSD
Control and
Generation
Image Management
Color Space Converter
Image Blending
Watchdog
& Timer
MCLK UCLK DCLK
XI XO
Spread
Spectrum
PLL
Memory Controller
External Memory
HDMI
656/601/24 Output
[Shared IN0,
PORTD(3:0)]
GPIO
PORTA(7:0)
PORTB(7:0)
PORTC(7:0)
Deinterlacer
Dual 5-Region Color
Enhancement
2D Edge
Enhancement
Dual Video
Enhancement
Dual Scalers
RGBIN(3:0)
SOGIN(3:0)
HSYNC(3:0)
VSYNC(3:0)
REXT
YPbPr1
YPbPr2
RGB1
RGB2
AIN(8:1)
CVBS 1
CVBS 2
CVBS 3
CVBS 4
Y/C 1
Y/C 2
