37
Computer Input
Select Digital zoom +. The On-Screen Menu disappears and
D. zoom + appears. Press the SELECT button to expand the
image size. Use the Point buttons to pan the image.
The Panning function can work only when the image is larger
than the screen size.
A projected image can be also expanded by pressing the
D.ZOOM + button on the remote control.
To exit the Digital zoom +/– mode, press any button except
the D.ZOOM +/- buttons, SELECT and Point buttons.
Digital zoom +
Select Digital zoom -. The On-Screen Menu disappears
and D. zoom – appears. Press the SELECT button to
compress image size.
The projected image can be also compressed by pressing
the D.ZOOM - button on the remote control.
Digital zoom -
To return to the previous screen size, select a screen size
from the Screen Size Adjustment Menu or select an input
source from the Input Source Selection Menu (see pages
28-29) again or adjust the screen size with the D.ZOOM +/-
buttons.
For zooming in and out the images
P
Note:
• The panning function may not operate properly if
the stored Mode in the PC adjust Menu is used
(p.33).
• The minimum compression ratio is limited
depending on the input signal, when the
Keystone function is working or when the
custom is selected for the screen size.
• True, Full and Digital zoom +/– cannot be
selected when 480i, 575i, 480p or 575p is
selected in the PC System Menu (p.30).
• Digital zoom +/- cannot be selected when Full
or True is selected.
• When Custom is selected, the Digital zoom -
function is disabled.

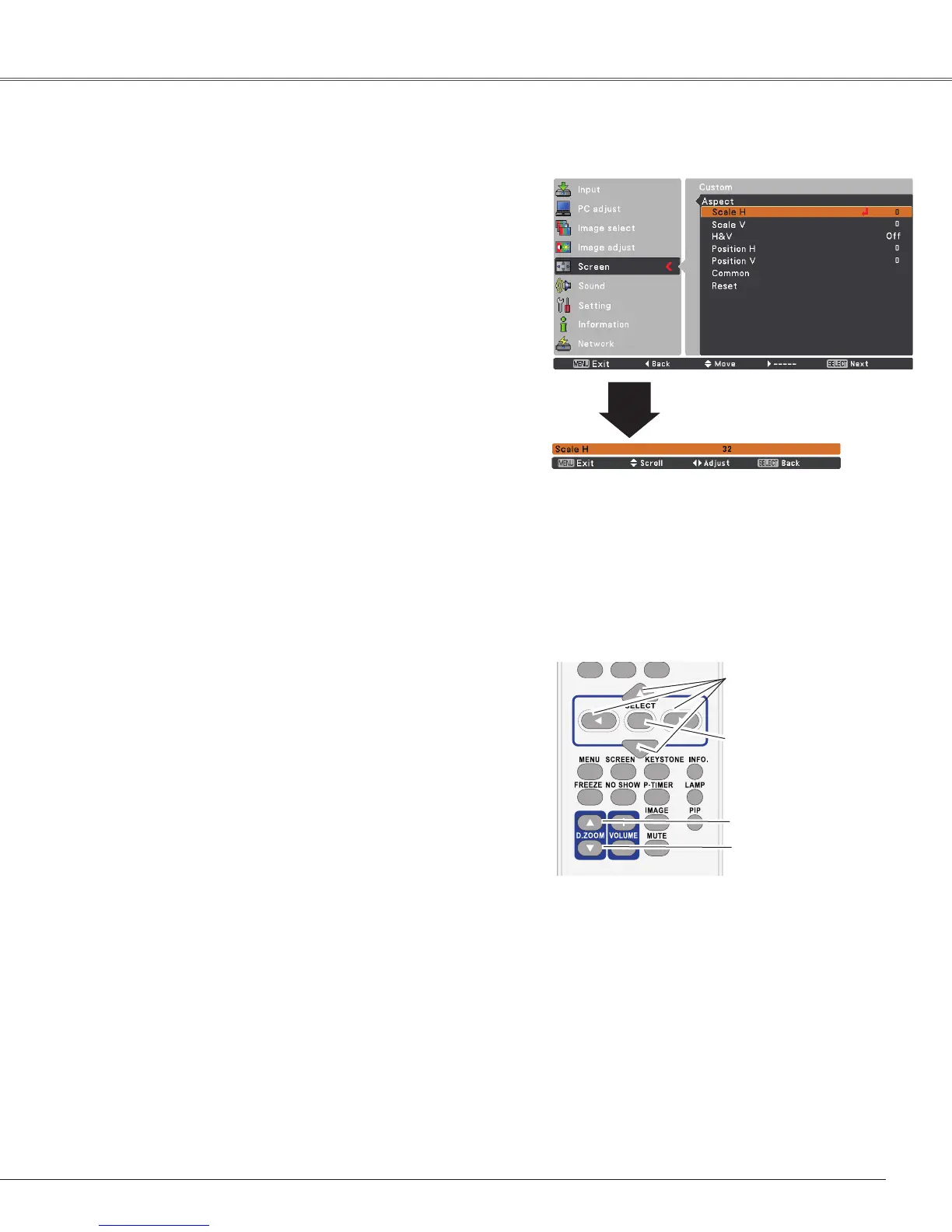

Remote Control
D.ZOOM + button
POINT buttons
SELECT button
D.ZOOM - button
Adjust the screen scale and position manually with this
function.
Press the Point button at Custom and the Custom is
displayed on the screen, you can use the Point buttons
to choose the item you want to adjust.
Scale H/V .......... Adjust the Horizontal/Vertical screen
scale.
H&V ................... When set to On, the aspect ratio is fixed.
Scale V appears dimmed and becomes
unavailable. Adjust Scale H, then the
screen scale is automatically modified
based on the aspect ratio.
Position H/V ..... Adjust the Horizontal/Vertical screen
position.
Common ........... Save the adjusted scale to all the inputs.
Press the SELECT button at Common to
display a confirmation box. To save the
scale, press the SELECT button at Yes.
When Custom is selected, the saved
scale is used.
Reset ................. Reset the all adjusted values. Press
the SELECT button at Reset to display
a confirmation box. To reset, press the
SELECT button at Yes.
Custom
P
Note:
• When no signal is detected, Normal is set
automatically and the Aspect dialog box
disappears.
• The adjustable range for Scale H/V and
Position H/V is limited depending on the input
signal.
