14

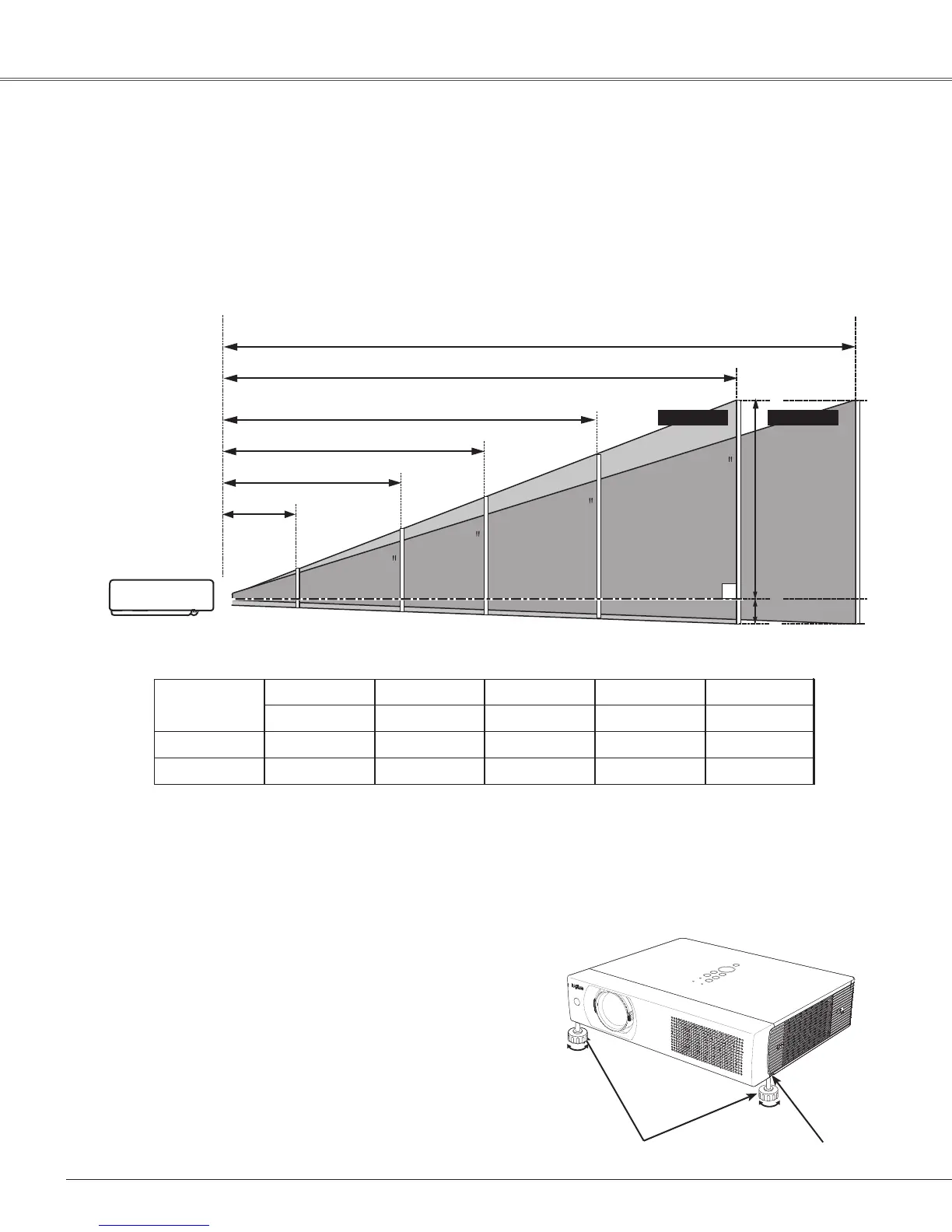

Installation
Adjustable Feet
Projection angle can be adjusted up to 8.9 degrees with the
adjustable feet.
Lift the front of the projector and press the feet lock latches
on both side of the projector.
Release the feet lock latches to lock the adjustable feet and
rotate the adjustable feet to a proper height and tilt.
Keystone distortion can be adjusted automatically with the
Auto setup function or manually by using the remote control
or the menu operation (see pages 24, 46-47).
Adjustable Feet
Feet Lock Latches
Positioning the Projector
For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the
screen.
P
Note:
• The brightness in the room has a great influence on picture quality. It is recommended to limit ambient
lighting in order to obtain the best image.
All measurements are approximate and may vary from the actual sizes.
A
B
100"
150"
200"
189
127
95
63
300"
40"
300"
39.7'(12.1m)
25.2'(7.7m)
16.7'(5.1m)
12.5'(3.8m)
Max. Zoom Min. Zoom
A : B = 49 : 1
(Inch Diagonal)
8.2'(2.5m)
(Center)
3.3'(1.0m)
(B x H) mm
16 : 10 aspect ratio
40”
Zoom (max)
862 x 538
3.3'(1.0m)
100”
2154 x 1346
8.2'(2.5m)
150”
3231 x 2019
12.5'(3.8m)
200”
4308 x 2692
16.7'(5.1m)
300”
6462 x 4039
25.2'(7.7m)
Zoom (min)
5.2'(1.6m) 13.1'(4.0m) 19.7'(6.0m) 26.86(8.1m) 39.7'(12.1m)
Screen Size
(Wide)
(tele)
