Sanyo PLC-WU3800 User Manual

42
Video Input
Image Adjustment
1
2
Press the Point  button to decrease the contrast; press the
Point  button to increase the contrast (from 0 to 63).
Press the Point  button to decrease the brightness; press
the Point  button to increase the brightness (from 0 to 63).
Contrast
Brightness
Press the Point  button to lighten red tone; press the Point
 button to deepen red tone (from 0 to 63).
White balance (Red)
Press the Point  button to lighten green tone; press the
Point  button to deepen green tone (from 0 to 63).
White balance (Green)
Press the Point  button to lighten blue tone; press the Point
 button to deepen blue tone (from 0 to 63).
White balance (Blue)
Use the Point  buttons to select the desired Color temp.
level (XLow, Low, Mid or High ).
Color temp.
Press the Point  button decrease the intensity of the color;
press the Point button increase the intensity of the color
(from 0 to 63).
Press the Point  buttons to adjust the tint value to get a
proper color balance (from 0 to 63).
Color
Tint
P
Note:
• When White balance Red, Green or Blue is adjusted, the Color temp. level will change to User.
• Tint cannot be selected when the video system is PAL, SECAM, PAL-M or PAL-N (p.40).
• When Blackboard(Green) or Colorboard is selected in Image select, Color temp. will change to
Blackboard or Colorboard.

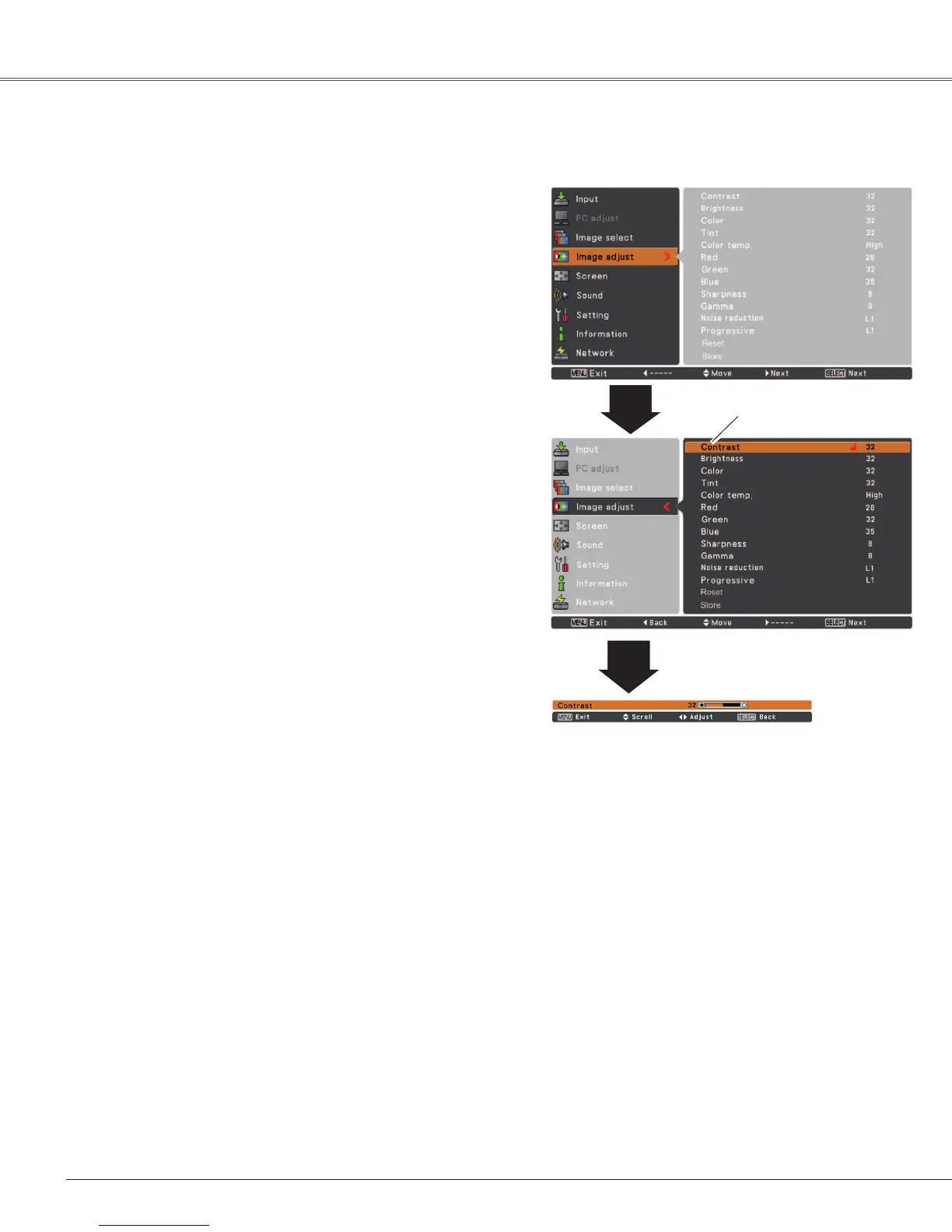

Image adjust Menu
Press the MENU button to display the On-Screen
Menu. Use the Point  buttons to select Image
adjust and then press the Point  or the SELECT
button.
Use the Point  buttons select the desired item
and then press the SELECT button to display the
adjustment dialog box. Use the Point  buttons to
adjust the setting value.
Use the Point 
buttons to adjust the
setting value.
Selected Image mode

Sanyo PLC-WU3800 Specifications

General

Matrix size	0.59 \
Projection distance	0.99 - 12.1 m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Screen size compatibility	40 - 300 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	±40 °
Audio input	2
Aspect ratio	16:10
Network ready	Yes
Power supply type	AC
Dimensions (WxDxH)	335.7 x 257.5 x 93.6 mm
Connectivity technology	Wired
Focus	Manual
Digital zoom	16 x
Focal length range	19.2 - 30.2 mm
Noise level	35 dB
Noise level (economic mode)	31 dB
Dot clock scanning frequency	140 MHz
Lamp type	NSHA
Lamp power	275 W
Light source type	Lamp
Service life of light source	2500 h
Service life of light source (economic mode)	3000 h
DVI port	No
Composite video in	-
Serial interface type	RS-232
USB 2.0 ports quantity	0
Supported video modes	1080i, 1080p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	White
AC input voltage	100 - 240 V
Power consumption (standby)	0.7 W
Power consumption (typical)	317 W
Power consumption (PowerSave)	280 W
Cables included	VGA

Weight and Dimensions

Depth	257.5 mm
Width	335.7 mm
Height	93.6 mm
Weight	3500 g
