Sanyo PLC-WU3800 User Manual

9

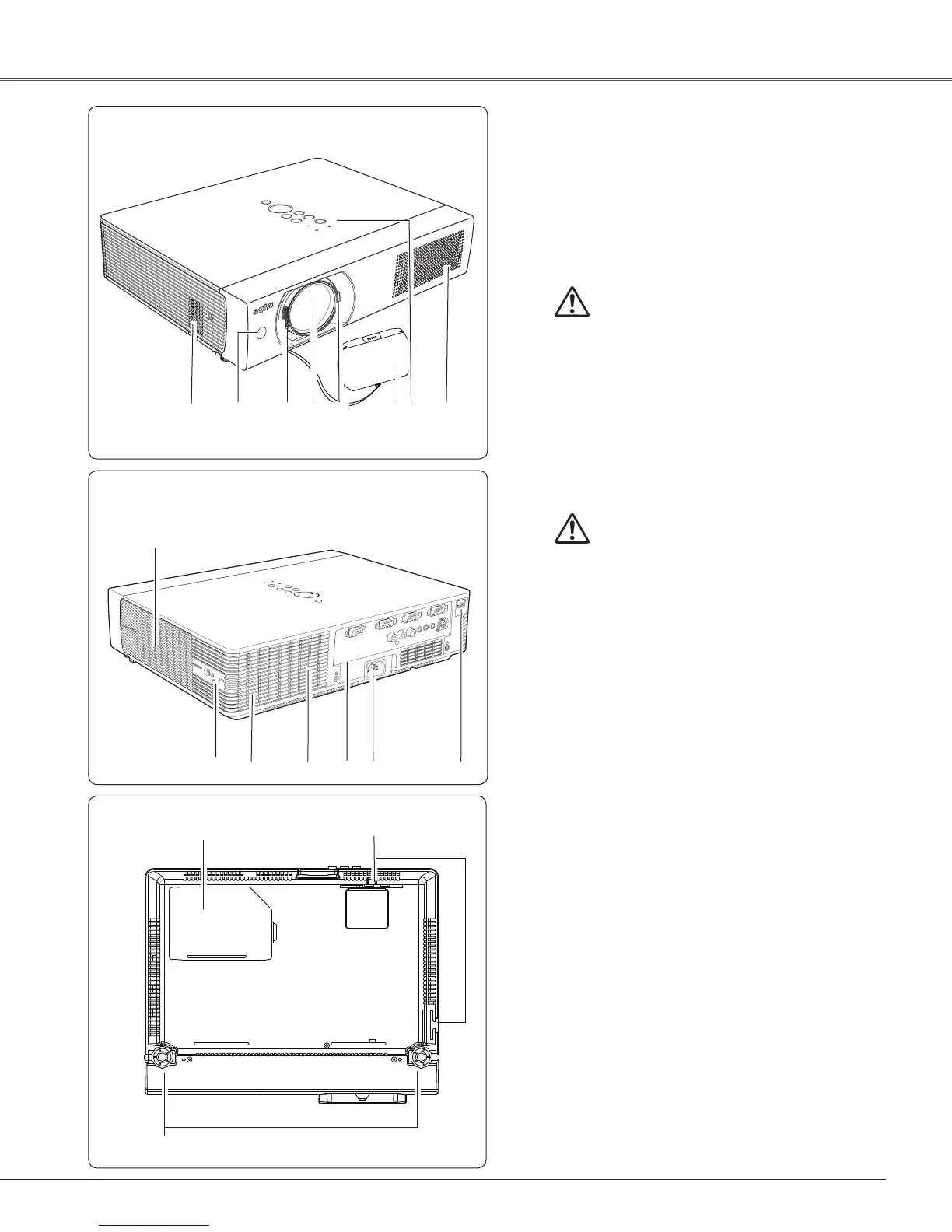

Part Names and Functions
Bottom
Back
󰴲
󰴰
󰴮
⁄
󰴯
󰴬
󰴭
Front
󰴳
󰴩
󰴦󰴧
󰴨
󰴤󰴪󰴥
󰴫
€Kensington Security Slot
This slot is for a Kensington lock used to deter theft
of the projector.
⁄Kensington is a registered trademark of ACCO Brands
Corporation.
󰴤 Infrared Remote Receiver
󰴥 Focus Ring
󰴦 Projection Lens 
󰴧 Zoom Lever
󰴨 Lens Cap
(See page 64 for attaching.)
󰴩 Top Controls and Indicators
󰴪 Air Intake Vent
󰴫 Exhaust vent
󰴬 Speaker
󰴭 Air Intake Vent (back)
󰴮 Terminals and Connectors
󰴯 Power Cord Connector
󰴰 LAN Connection Terminal
󰴱 Lamp Cover
󰴲 Filters
󰴳 Adjustable Feet
CAUTION
Hot air is exhausted from the exhaust vents.
Do not put heat-sensitive objects near this
side.
CAUTION
Do not turn on a projector with lens cap
attached. High temperature from light
beam may damage lens cap and result in
fire hazard.
󰴪
󰴱
P
Note:
󰴰
LAN Connection Terminal is for the Network
function. Refer to the owner’s manual of “Network
Set-up and Operation” .

Sanyo PLC-WU3800 Specifications

General

Matrix size	0.59 \
Projection distance	0.99 - 12.1 m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Screen size compatibility	40 - 300 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	±40 °
Audio input	2
Aspect ratio	16:10
Network ready	Yes
Power supply type	AC
Dimensions (WxDxH)	335.7 x 257.5 x 93.6 mm
Connectivity technology	Wired
Focus	Manual
Digital zoom	16 x
Focal length range	19.2 - 30.2 mm
Noise level	35 dB
Noise level (economic mode)	31 dB
Dot clock scanning frequency	140 MHz
Lamp type	NSHA
Lamp power	275 W
Light source type	Lamp
Service life of light source	2500 h
Service life of light source (economic mode)	3000 h
DVI port	No
Composite video in	-
Serial interface type	RS-232
USB 2.0 ports quantity	0
Supported video modes	1080i, 1080p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	White
AC input voltage	100 - 240 V
Power consumption (standby)	0.7 W
Power consumption (typical)	317 W
Power consumption (PowerSave)	280 W
Cables included	VGA

Weight and Dimensions

Depth	257.5 mm
Width	335.7 mm
Height	93.6 mm
Weight	3500 g
