Basic Operation

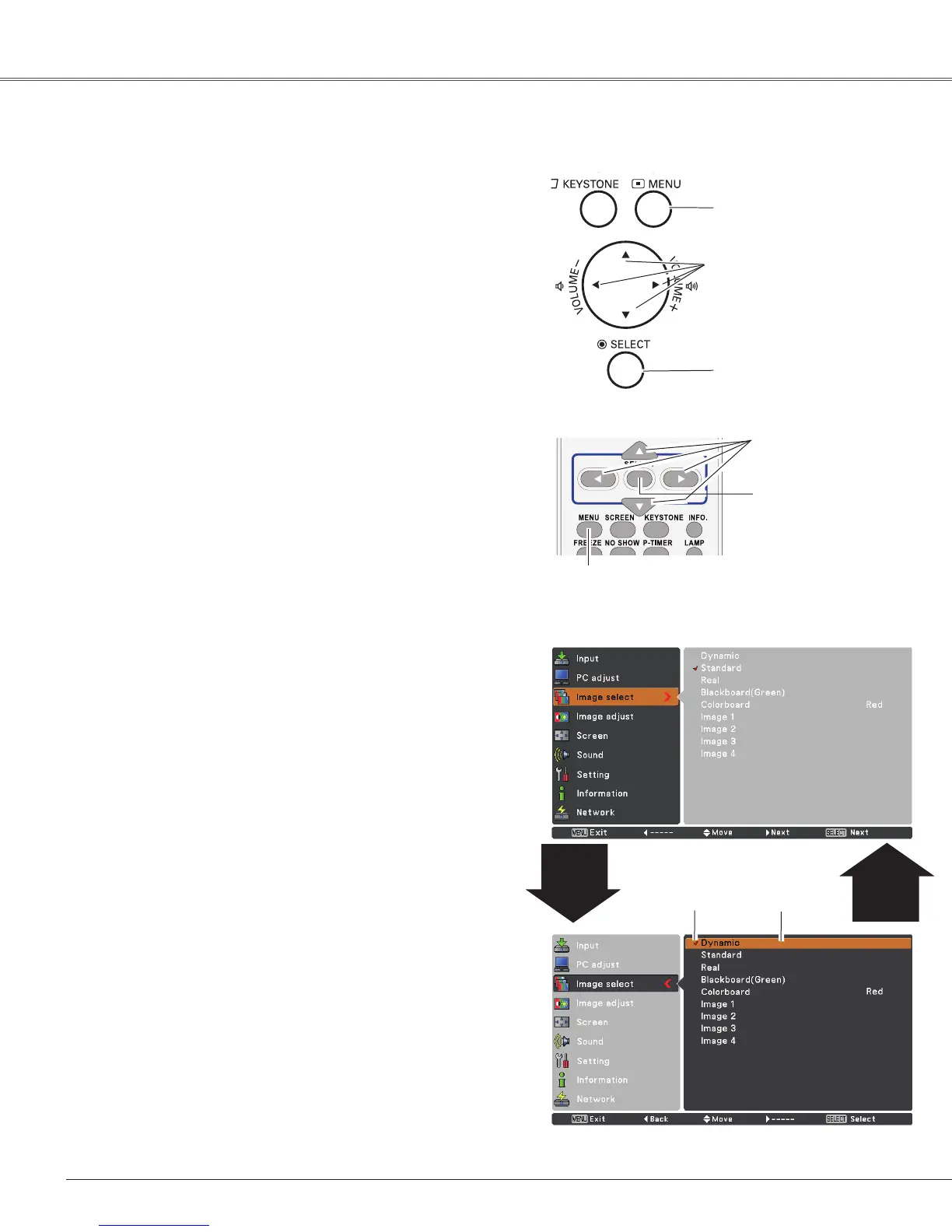

How to Operate the On-Screen Menu
The projector can be adjusted or set via the On-Screen
Menu. The menus have a hierarchical structure, with
a main menu that is divided into submenus, which are
further divided into other submenus. For each adjustment
and setting procedure, refer to respective sections in this
manual.
Use the Point  buttons to highlight or select a main
menu item. Press the Point or the SELECT button
to access the submenu items. (The selected item is
highlighted in orange.)
Use the Point  buttons to select the desired
submenu item and press the SELECT button to set or
access the selected item.
Press the MENU button on the top control or the
remote control to display the On-Screen Menu.
1
2
3
On-Screen Menu
Top Control
MENU button
POINT buttons
(arrowhead)
Remote Control
SELECT button
SELECT button
POINT buttons
(arrowhead)
Point
 or SELECT
button
Use the Point  buttons to adjust the setting or
switch between each option and press the SELECT
button to activate it and return to the submenu.
4
Press the Point  button to return to the main menu.
Press the MENU button to exit the On-Screen Menu.
5
MENU button
The selected item
is highlighted in
orange.
The currently
set item is check
marked.
Point 
button

Sanyo PLC-WU3800 Specifications

General

Matrix size	0.59 \
Projection distance	0.99 - 12.1 m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Screen size compatibility	40 - 300 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	±40 °
Audio input	2
Aspect ratio	16:10
Network ready	Yes
Power supply type	AC
Dimensions (WxDxH)	335.7 x 257.5 x 93.6 mm
Connectivity technology	Wired
Focus	Manual
Digital zoom	16 x
Focal length range	19.2 - 30.2 mm
Noise level	35 dB
Noise level (economic mode)	31 dB
Dot clock scanning frequency	140 MHz
Lamp type	NSHA
Lamp power	275 W
Light source type	Lamp
Service life of light source	2500 h
Service life of light source (economic mode)	3000 h
DVI port	No
Composite video in	-
Serial interface type	RS-232
USB 2.0 ports quantity	0
Supported video modes	1080i, 1080p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	White
AC input voltage	100 - 240 V
Power consumption (standby)	0.7 W
Power consumption (typical)	317 W
Power consumption (PowerSave)	280 W
Cables included	VGA

Weight and Dimensions

Depth	257.5 mm
Width	335.7 mm
Height	93.6 mm
Weight	3500 g
