Sanyo PLC-WU3800 User Manual

15
Installation
Connecting to a Computer
Cables used for connection
• VGA cables (Mini D-sub 15 pin) *
• Audio cables
• HDMI-DVI cable
(*One cable is supplied; other cables are not supplied with the projector.)
P
Note:
• Input sound to the COMPUTER1 COMPONENT/COMPUTER
2 AUDIO IN terminal when using the COMPUTER IN 1/
COMPONENT IN and the COMPUTER IN 2/MONITOR OUT
terminal as input.
• When the AUDIO OUT is plugged-in, the projector's built-in
speaker is not available.
• When the cable is of the longer variety, it is advisable to
use the COMPUTER IN 1 / COMPONENT IN and not the
COMPUTER IN 2.
Unplug the power cords of both the
projector and external equipment
from the AC outlet before connecting
cables.

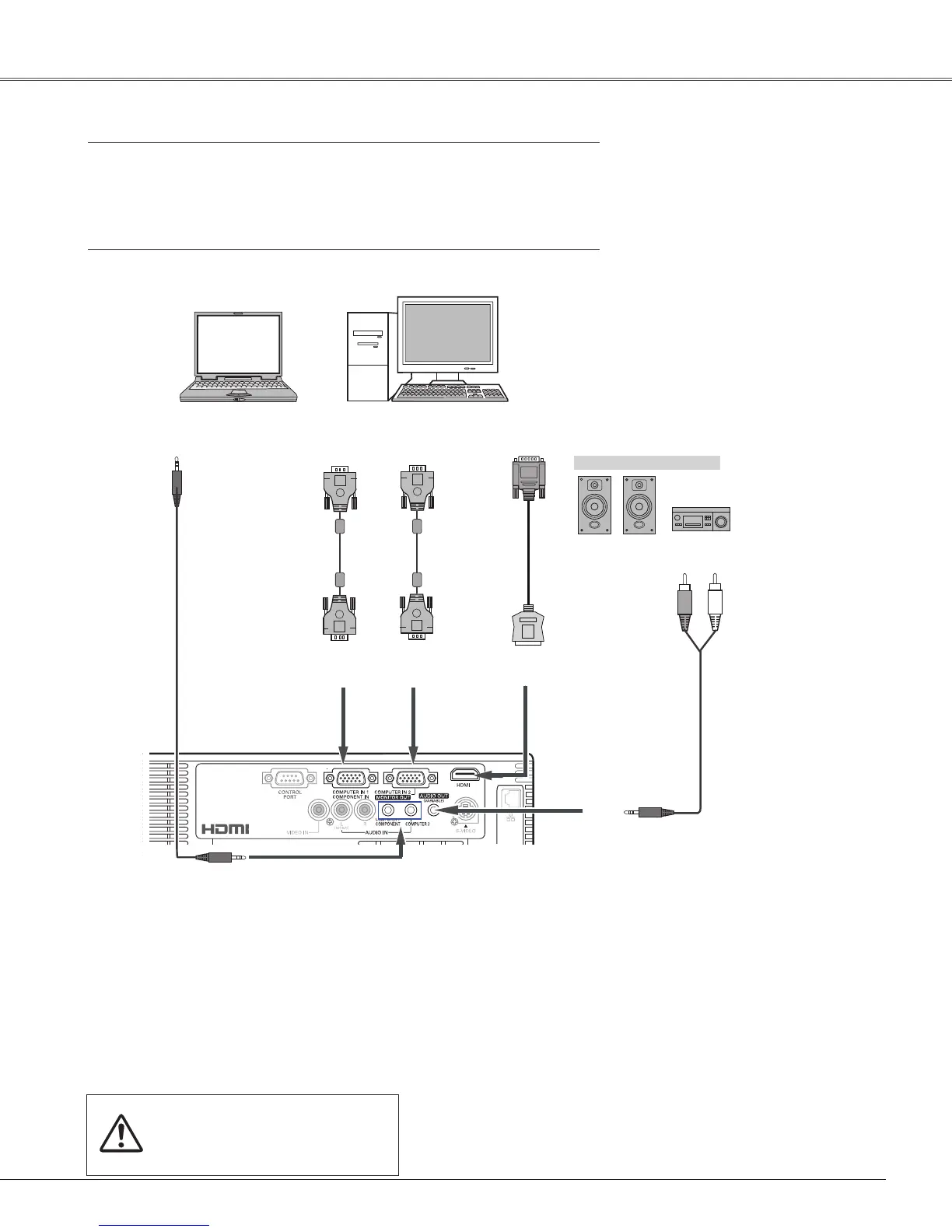

External Audio Equipment
Audio cable
(stereo)
Audio cable
(stereo)
Audio Output
COMPUTER 1 COMPONENT/
COMPUTER 2 AUDIO IN
AUDIO OUT
(stereo)
Audio Input
Monitor
Output
COMPUTER IN 2 /
MONITOR OUT
VGA
cable
COMPUTER IN 1
COMPONENT
VGA
cable
Monitor Output /
Monitor Input
HDMI-DVI
cable
DVI
Output
HDMI
This terminal is
switchable. Set up
the terminal as
COMPUTER IN 2 or
MONITOR OUT.(See
Page 51.)
P
Note:
• Analog RGB and component signals cannot be
output from the COMPUTER IN 2/MONITOR
OUT terminal when using the COMPUTER IN
2/MONITOR OUT terminal as output.
• When DVI signal is connected to HDMI terminal
with HDMI-DVI cable, connect the sound signal
to COMPUTER 2 AUDIO IN and set up Sound of
"HDMI setup" to "Computer2". (p.51)

Sanyo PLC-WU3800 Specifications

General

Matrix size	0.59 \
Projection distance	0.99 - 12.1 m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Screen size compatibility	40 - 300 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	±40 °
Audio input	2
Aspect ratio	16:10
Network ready	Yes
Power supply type	AC
Dimensions (WxDxH)	335.7 x 257.5 x 93.6 mm
Connectivity technology	Wired
Focus	Manual
Digital zoom	16 x
Focal length range	19.2 - 30.2 mm
Noise level	35 dB
Noise level (economic mode)	31 dB
Dot clock scanning frequency	140 MHz
Lamp type	NSHA
Lamp power	275 W
Light source type	Lamp
Service life of light source	2500 h
Service life of light source (economic mode)	3000 h
DVI port	No
Composite video in	-
Serial interface type	RS-232
USB 2.0 ports quantity	0
Supported video modes	1080i, 1080p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	White
AC input voltage	100 - 240 V
Power consumption (standby)	0.7 W
Power consumption (typical)	317 W
Power consumption (PowerSave)	280 W
Cables included	VGA

Weight and Dimensions

Depth	257.5 mm
Width	335.7 mm
Height	93.6 mm
Weight	3500 g
