Video Input
Choose Computer 1 by pressing the INPUT button on the top control or press the COMPUTER 1 button on the
remote control; choose HDMI by pressing the INPUT button on the top control or press the HDMI button on the
remote control.
Before using these buttons, correct input source should be selected through Menu operation as described
below.
1
Input Menu
2
Use the Point  buttons to select Computer 1 and
then press the Point button; use the Point  buttons
to select HDMI, and then press the SELECT button.
Input Source Selection (Component, RGB Scart 21-pin, HDMI)
When the input source is coming from video
equipment connected to the COMPUTER
IN 1/COMPONENT IN terminal with a
Component-VGA Cable, select Component.
Component
When the input source is coming from video
equipment connected to the COMPUTER
IN 1/COMPONENT IN terminal with a Scart-
VGA Cable, select RGB (Scart).
RGB (Scart)
Direct Operation
Menu Operation

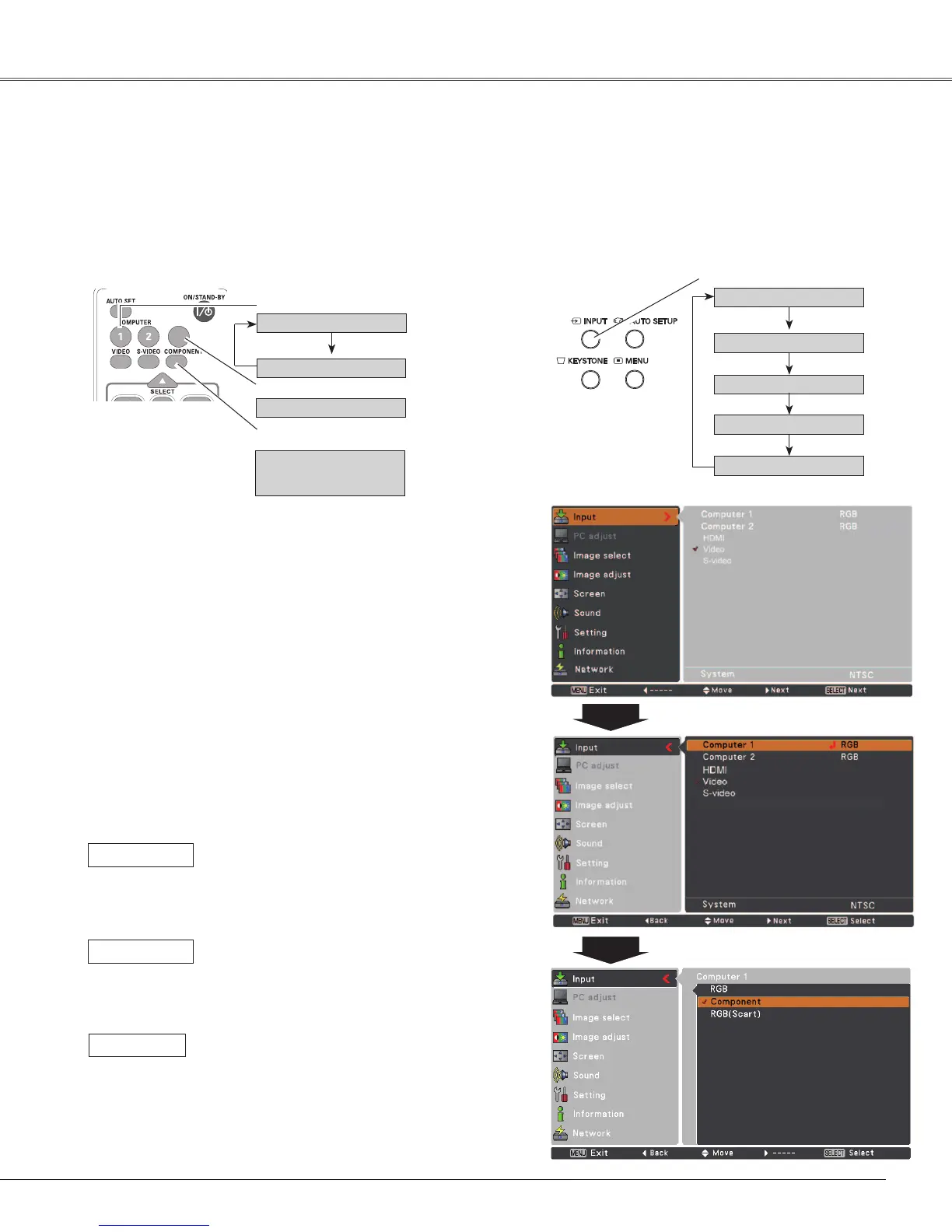

Press the MENU button to display the On-Screen
Menu. Use the Point  buttons to select Input and
then press the Point or the SELECT button.
P
Note:
When the Input Search function is set to On1 or On2,
the input signal will be searched automatically (p.46).
Top Control
INPUT button
3
When Computer 1 is selected, use the Point 
buttons to select Component or RGB(Scart) and then
press the SELECT button.
When the video signal is connected to the
HDMI terminal, select HDMI.
HDMI
Computer 1
HDMI
Computer 2
S-video
Video
COMPUTER 2 can not be selected when using the COMPUTER IN 2/
MONITOR OUT terminal as MONITOR OUT output.
HDMI
COMPUTER 1 button
Remote Control
Computer 1 (RGB)
Computer 1 (Scart)
COMPONENT button
Computer 1
(Component)
HDMI button
HDMI
