10

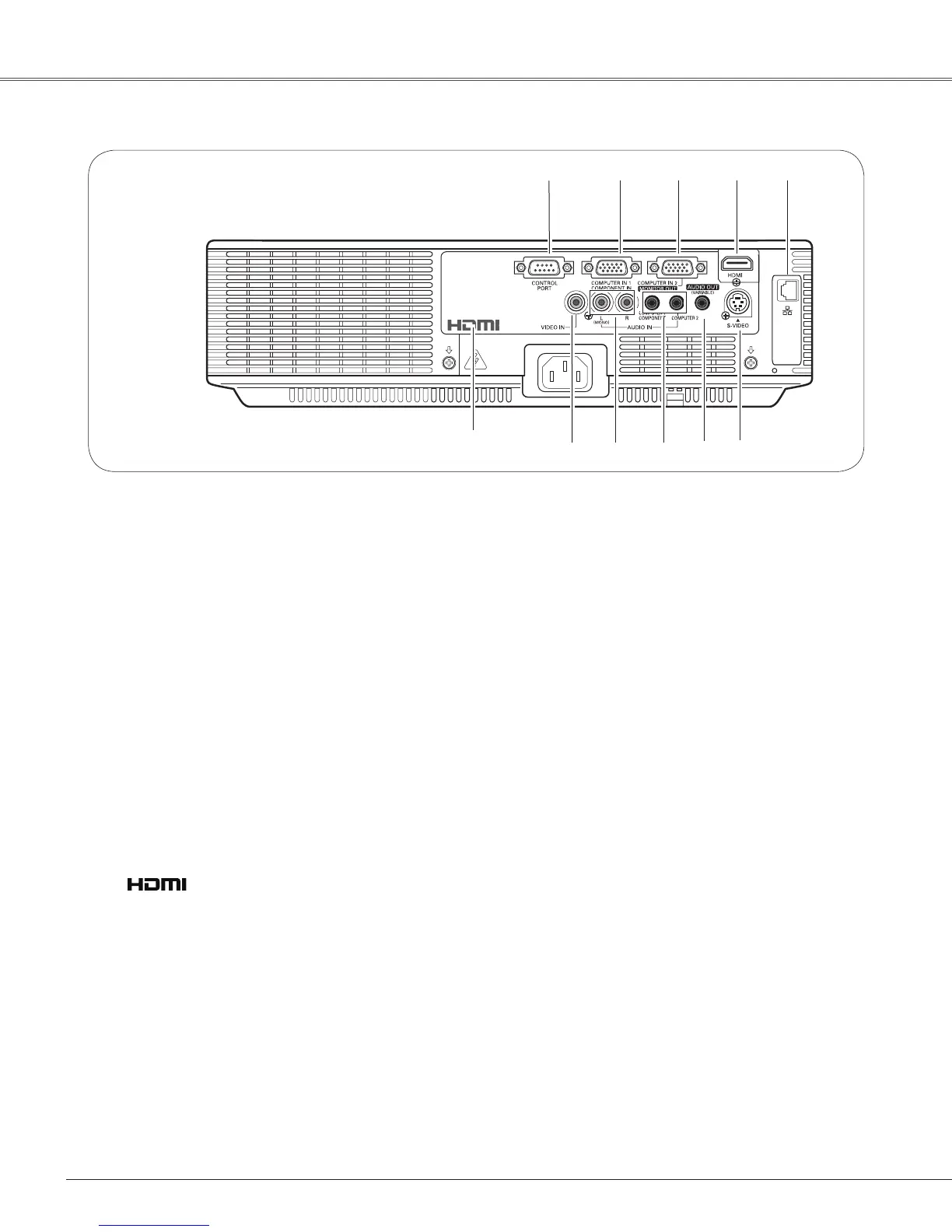

Part Names and Functions
Rear Terminal
󰴩 S-VIDEO IN
Connect the S-VIDEO output signal from video
equipment to this jack (p.16).
󰴬 AUDIO IN
Connect the audio output signal from video
equipment connected to 󰴩 or 󰴭 to this jack.
For a mono audio signal (a single audio jack),
connect it to the L (MONO) jack (p.16).
󰴫 COMPUTER 1 COMPONENT / COMPUTER 2
AUDIO IN
Connect the audio output (stereo) from a
computer or video equipment connected to 󰴥,
󰴦 or 󰴧 to this jack. (pp.15, 17)
󰴭 VIDEO IN
Connect the composite video output signal to
this jack (p.16).
󰴥 COMPUTER IN 1 / COMPONENT IN
Connect output signal from a computer, RGB scart
21-pin video output or component video output to
this terminal (pp.15,17).
󰴪 AUDIO OUT (VARIABLE)
Connect an external audio amplifier to this jack
(pp.15 -17).
This terminal outputs sound from AUDIO IN terminal
(󰴫 or 󰴬).
Never plug headphones and earphones into AUDIO
OUT jack.
󰴨 LAN Connection Terminal
Connect the LAN cable (refer to the owner’s manual
of “Network Set-up and Operation”).
󰴥󰴦󰴤󰴧
󰴪
󰴫󰴬
󰴤 CONTROL PORT
When controlling the projector with RS-232C,
connect the control equipment to this connector with
the serial control cable.
󰴭
󰴨
󰴩
󰴧 HDMI
Connect the HDMI signal (including sound signal)
from video equipment or the DVI signal from
computer to this terminal (pp.15, 17).
󰴦 COMPUTER IN 2 / MONITOR OUT
– Connect computer output to this terminal (p.15).
– This terminal can be used to output the incoming
analog RGB signal and component signals from
COMPUTER IN 1/COMPONENT IN terminal to the
other monitor (p.15).
*
is registered trademarks of HDMI
Licensing, LLC.
*

Table of Contents

Other manuals for Sanyo PLC-WU3800

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Sanyo PLC-WU3800 and is the answer not in the manual?

Sanyo PLC-WU3800 Specifications

General IconGeneral
Matrix size0.59 \
Projection distance0.99 - 12.1 m
Vertical scan range50 - 100 Hz
Horizontal scan range15 - 100 kHz
Projection technologyLCD
Contrast ratio (typical)500:1
Screen size compatibility40 - 300 \
Projector native resolutionWXGA (1280x800)
Keystone correction, vertical±40 °
Audio input2
Aspect ratio16:10
Network readyYes
Power supply typeAC
Dimensions (WxDxH)335.7 x 257.5 x 93.6 mm
Connectivity technologyWired
FocusManual
Digital zoom16 x
Focal length range19.2 - 30.2 mm
Noise level35 dB
Noise level (economic mode)31 dB
Dot clock scanning frequency140 MHz
Lamp typeNSHA
Lamp power275 W
Light source typeLamp
Service life of light source2500 h
Service life of light source (economic mode)3000 h
DVI portNo
Composite video in-
Serial interface typeRS-232
USB 2.0 ports quantity0
Supported video modes1080i, 1080p, 720p
Analog signal format systemNTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product colorWhite
AC input voltage100 - 240 V
Power consumption (standby)0.7 W
Power consumption (typical)317 W
Power consumption (PowerSave)280 W
Cables includedVGA
Weight and Dimensions IconWeight and Dimensions
Depth257.5 mm
Width335.7 mm
Height93.6 mm
Weight3500 g
