Part Names and Functions

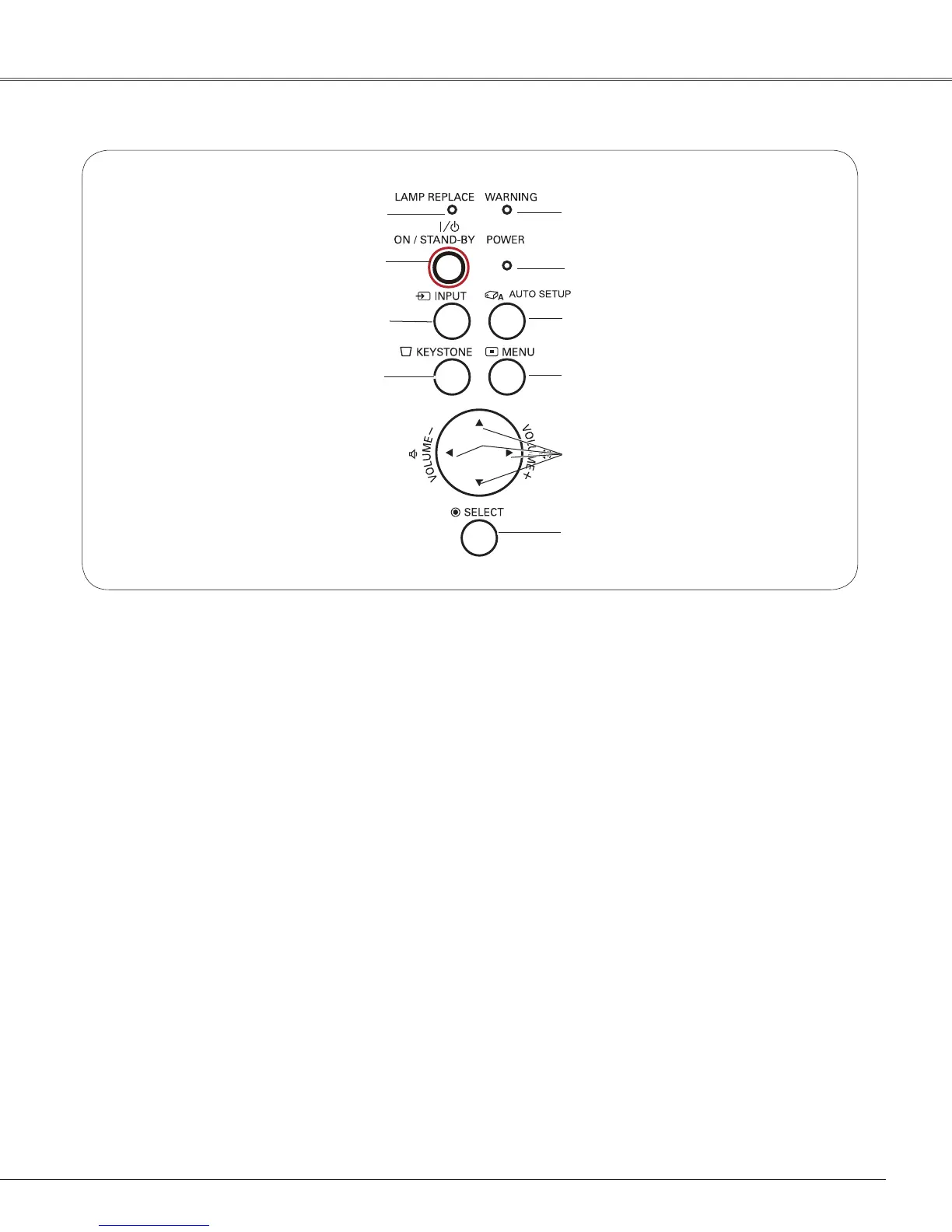

Top Control
LAMP REPLACE indicator
Lights yellow when the projection lamp reaches its
end of life (pp.65, 73).
WARNING indicator
– Lights red when the projector detects an abnormal
condition.
– Blinks red when the internal temperature of the
projector exceeds the operating range (pp.62, 73).
ON/STAND–BY button
Turn the projector on or off (pp.19-21).
POWER indicator
– Lights red when the projector is in stand-by mode.
– Lights green during operations.
– Blinks green in the Power management mode
(p.53).
INPUT button
Select an input source (pp.28-29, 38-39).
MENU button
Open or close the On-Screen Menu (p.22).
POINT (VOLUME +/–) buttons
– Select an item or adjust the value in the On-Screen
Menu (p.22).
– Pan the image in the Digital zoom + mode (p.37).
– Adjust the volume level (Point buttons) (p.25).
AUTO SETUP button
–Execute the setting of Auto setup (includes Input
search, Auto PC adj. and Auto Keystone
functions)
in the setting menu (pp.24, 46).
SELECT button
– Execute the selected item (p.22).
– Expand or compress the image in the Digital zoom
mode (p.37).
KEYSTONE button
Correct keystone distortion (pp.24, 47).
