Getting Started
28 Cubis MSE Operating Instructions
Using the Cable Opening of the
Manual Analytical Balance Draft Shield
Models with a manual analytical draft shield have an opening for passing a cable
(for example, for a temperature sensor) through to the interior of the weighing
chamber�

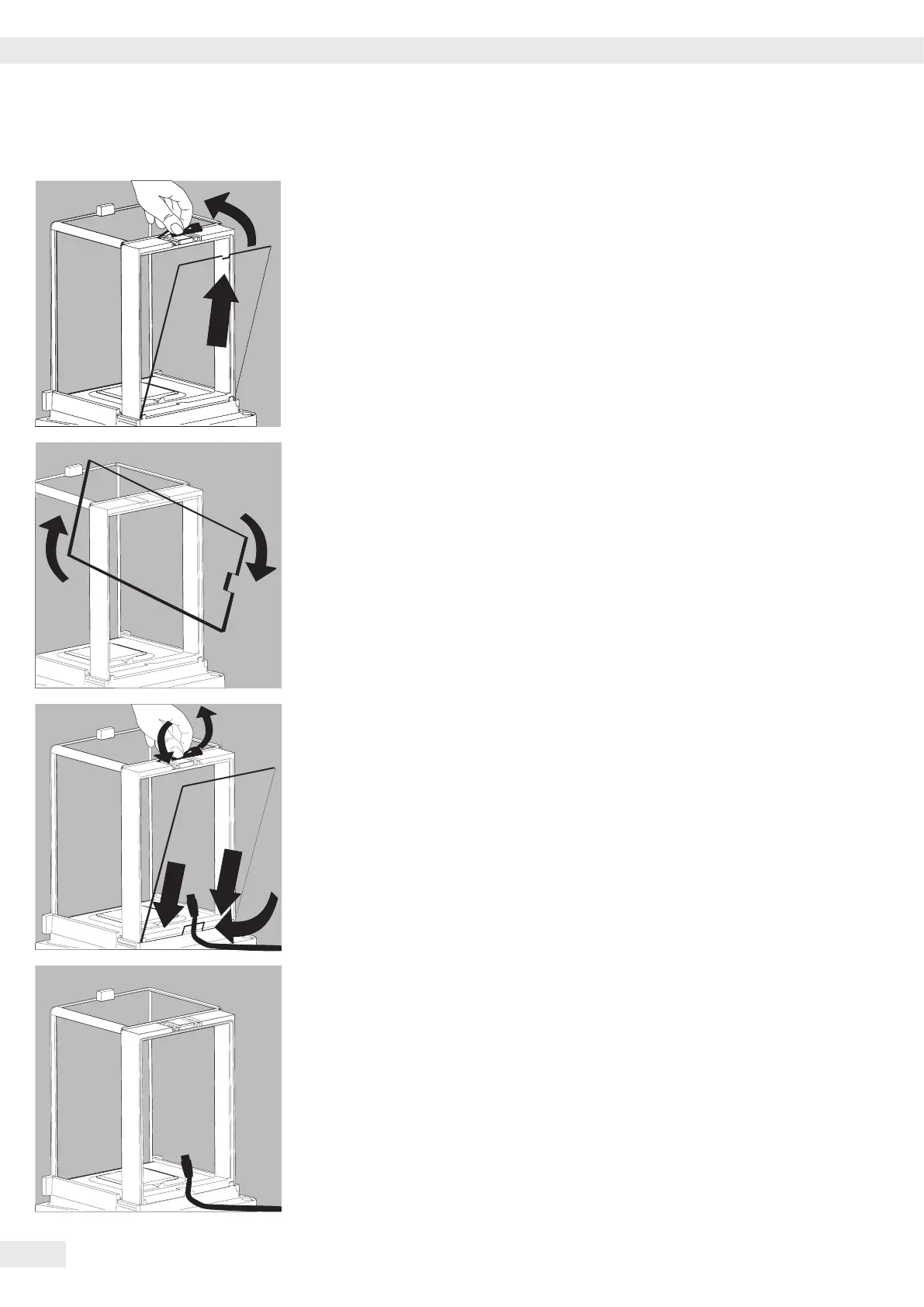

1. Lift the locking tab on the rear panel of the analytical draft shield�
2. Lift the panel out of the draft shield�
t Turn the panel clockwise 180° so that the opening is at the bottom�
t Install the desired sensor�
t Insert the panel in the guide rail�
t Lift the locking tab and gently press the panel into position�
t Press the locking tab down and close it�
t You can now begin weighing�
