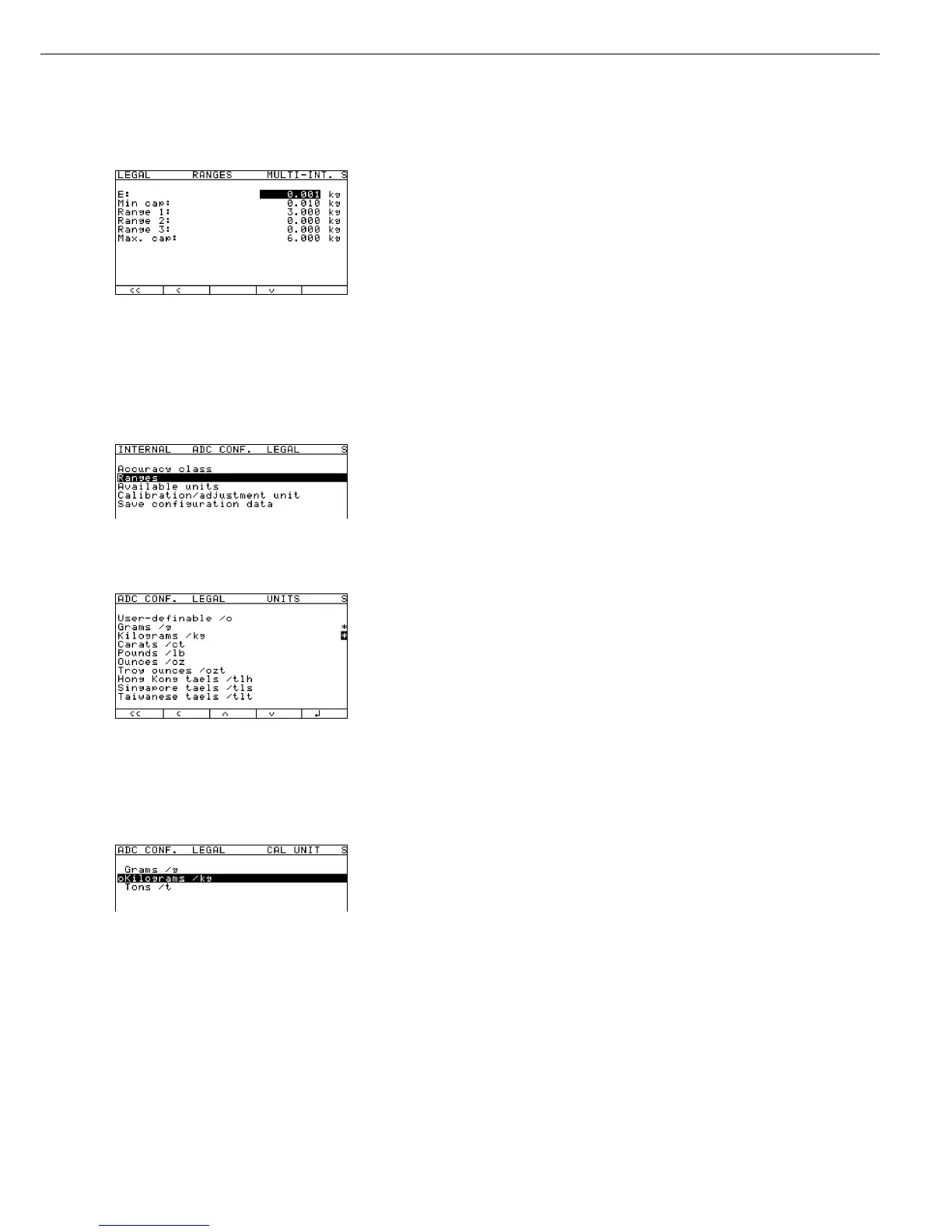

The illustration on the left shows an example of the input menu opened when
when the range configuration defines a
Multi-interval scale.
The same is shown for a Multiple range scale.
This example shows the parameters for a scale in “Verifiable” configuration,
with 2 weighing ranges and a maximum capacity of 6.000 kg:
– Range 1: 0 to 3.000 kg with e1 = 0.001 kg
– Range 2: 3.002 kg to 6.000 kg with e2 = 0.002 kg
Enter the verification scale interval for Range 1 in the E field. The minimum load for
a class l scale must be set to 0.02 kg.
Soft key o Return to the next higher menu level, Ranges.
If the original configuration has been changed (for example, from “Single range mode” to
“Multi-interval mode” or “Multiple range mode”), the new setting is marked by a circle (o).
Soft key o Return to the next higher menu level, ADC configuration.
Soft key q; if necessary, soft key O Select the Available units menu item.
This menu lets you enable or disable the weight units that can be selected for
“Weight unit x” (x = 1, 2). For details, see “Descriptions of the Individual Menu Items”
at the beginning of this chapter. In most cases, you will not need to change the default
values stored in the configuration data record.
To disable (block) or enable a weight unit: press the q or Q soft key to select the unit
and press l to confirm. If a weight unit had been available (marked by *), it is now
blocked (the marking is removed); if it had been blocked (no marking), it is now available
and marked by * (toggle function). The weight unit used for configuration of weighing
ranges cannot be blocked.
Soft key o Return to the next higher menu level, ADC configuration.
Soft key q; if necessary, soft key O Select the Calibration/adjustment unit menu item.
This menu lets you set the weight unit for calibration and adjustment.
The current setting is marked by a circle (o). For details, see “Descriptions of the
Individual Menu Items” at the beginning of this chapter. In most cases, you will
not need to change the default values stored in the configuration data record.
The menu shows all weight units activated in the “Available units” menu.
The currently active calibration weight unit is always displayed, regardless of whether
it is activated in the “Available units” menu.
To change the calibration weight unit, press the q or Q soft key to select the new unit
and press the l soft key to activate it. The activated weight unit is marked by a circle (o).
Soft key o Return to the next higher menu level, ADC configuration.
Soft key q, soft key O Select the Save parameters menu item.
