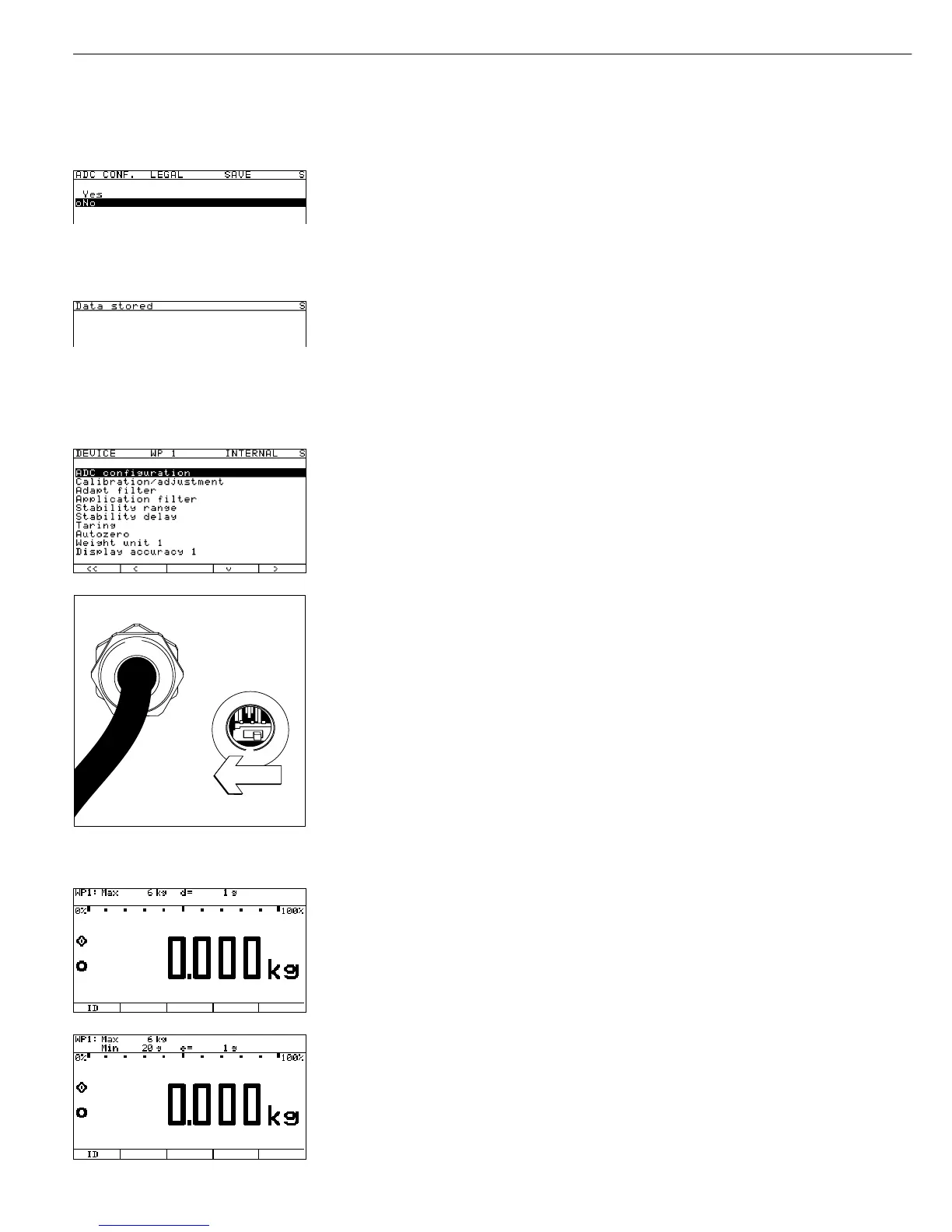

The menu for saving the A/D converter configuration is displayed.
– To save the configuration data, press the Q soft key to move the highlight bar to
“Yes” and press the l soft key to confirm. In the first line of the display, the message
Data stored is shown briefly. The program then returns to the normal weighing
mode. To return to the Service mode, you need to enter the Service password again.
– To exit without saving changes, press the o soft key. The program returns
to the next higher menu level.
If A/D converter configuration data was changed before you pressed
the key to exit without saving, you are prompted to confirm when the menu
returns to the “WP1 - Internal” menu level.
– Press the O soft key if you wish to save changes at this point.
– Press the o soft key to exit without saving changes.
If you save changes, the program continues as described above. Otherwise,
the program returns to the “WP1 - Internal” level of the “Device Parameters” menu.
For details on calibration and adjustment, see “Calibration and Adjustment”
in the chapter entitled “Operation,” or refer to the service manual.
At the conclusion of A/D converter configuration, return the menu access switch from
the “accessible” to the “blocked” position:
§ If necessary, remove the cap that covers the menu access switch on the left-hand side
of the back of the indicator.
§ Move the menu access switch to the left (“blocked” position).
See also “Calibration and Adjustment” in the chapter entitled “Operation,”
or refer to the service manual.
§ Replace the protective cap over the menu access switch.
ee Restart the weighing instrument: Turn the indicator off and then on again.
The Sartorius logo is displayed briefly, after which the device is in normal weighing mode.
The displays depicted in the next two illustrations on the left show data from a
multi-interval configured as described above, or a similarly configured multiple-range
scale.
If the A/D converter was configured with a “Verifiable” data record, the lines for display
of metrological data (lines 1 and 2) show the data valid for use in legal metrology,
if the menu access switch is closed. For details, see the section entitled “Checking and
Configuring the Equipment for Use in Legal Metrology” in this chapter.
