Chapter 5 Configuring the EM13X Series Configuring Billing/TOU
EM13x Series SMART MULTIFUNCTION METER 103

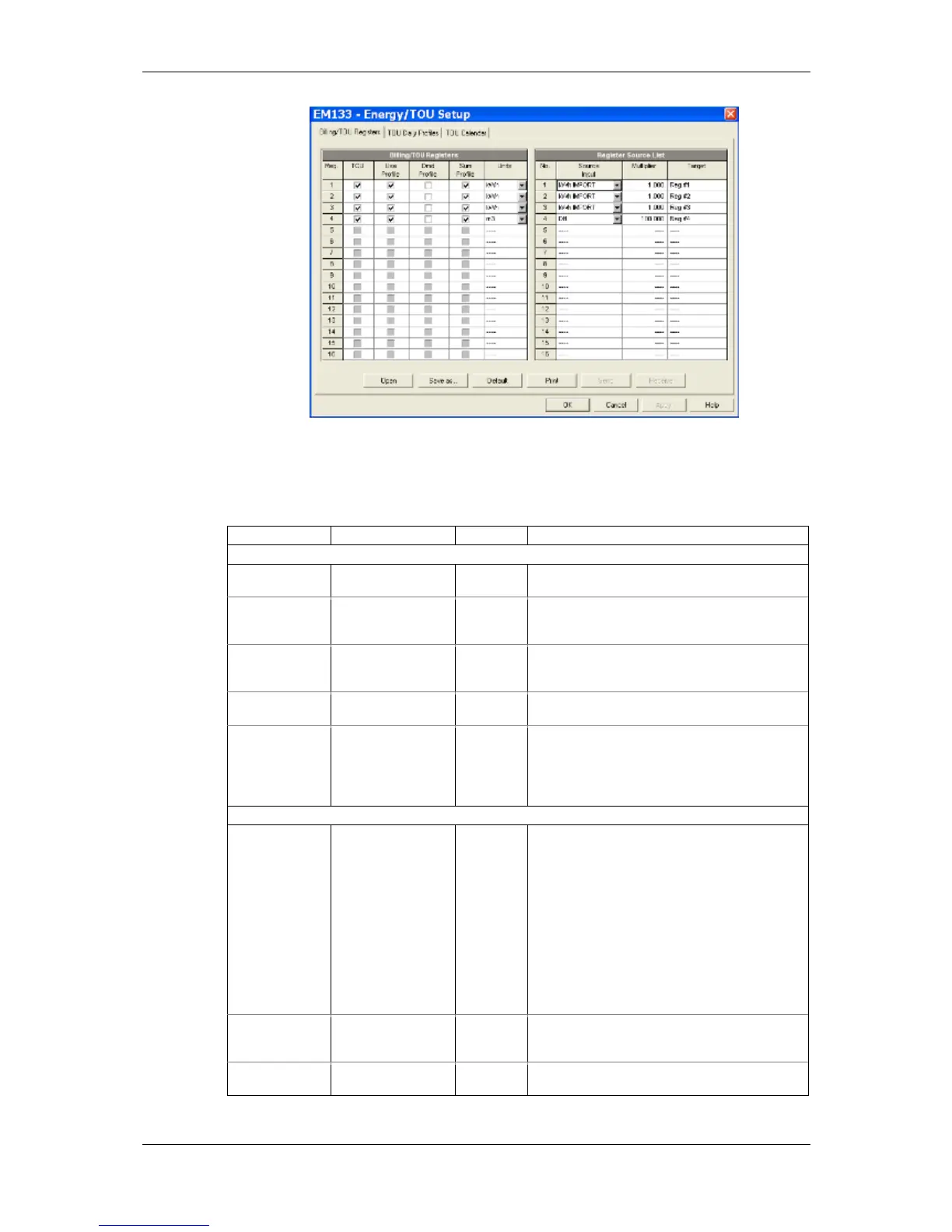

Figure 5-16: Energy/TOU Setup Dialog Box – Billing/TOU Registers tab
 Configure the register options according to the valid parameters shown
in Table 19.
Table 19: Billing/TOU Register Options
Parameter
Options
Default
Description
Billing/TOU Registers
TOU
Unchecked
Checked
Unchecked
Links tariff registers to the selected energy
source
Use Profile
Unchecked
Checked
Checked
Enables recording energy registers in a daily
billing profile file (both total and tariff
registers if TOU is enabled).
Dmd Profile
Unchecked
Checked
Unchecked
Enables recording maximum demand
registers in a daily billing profile file (both
total and tariff registers if TOU is enabled)
Sum Profile
Unchecked
Checked
Checked
Enables recording total (summary) registers
in a daily billing profile file.
Units
kWh, kvarh, kVAh,
m
3
, CF (cubic
foot), CCF
(hundred cubic
feet)
None
The register measurement units. When a
register is linked to an internal energy
source, it is set automatically. When an
external pulse source is used, the user can
select a measurement unit for the register.
Register Source List
Source Input
None
kWh Import
kWh Export
kvarh Import
kvarh Export
kvarh Q1-Q4
kVAh Total
kVAh Import
kVAh Export
kWh L1 Import
kWh L2 Import
kWh L3 Import
DI1-DI14
None
Links an energy source to the register
Multiplier
0.001 to 100.000
1.000
The multiplication factor for the energy
source. Unchangeable for internal energy
sources.
Target
Reg#1- Reg#4
None
Defines the target billing register for the
energy source. It is set automatically.
