Chapter 2 Installation Electrical Installation
EM13x Series SMART MULTIFUNCTION METER 31
Terminals
The EM132/133/133-SE terminals are constructed as a built-in part of
the meter equipment. The terminals are divided in two different
terminal categories:
1) High power terminal, dedicated to current terminals only, with a
torque rating of 2.0-2.3Nm
2) Low power terminal, dedicated to voltage, Digital Inputs, COM1
and Relay output terminals only with a torque rating of 0.5-0.7Nm

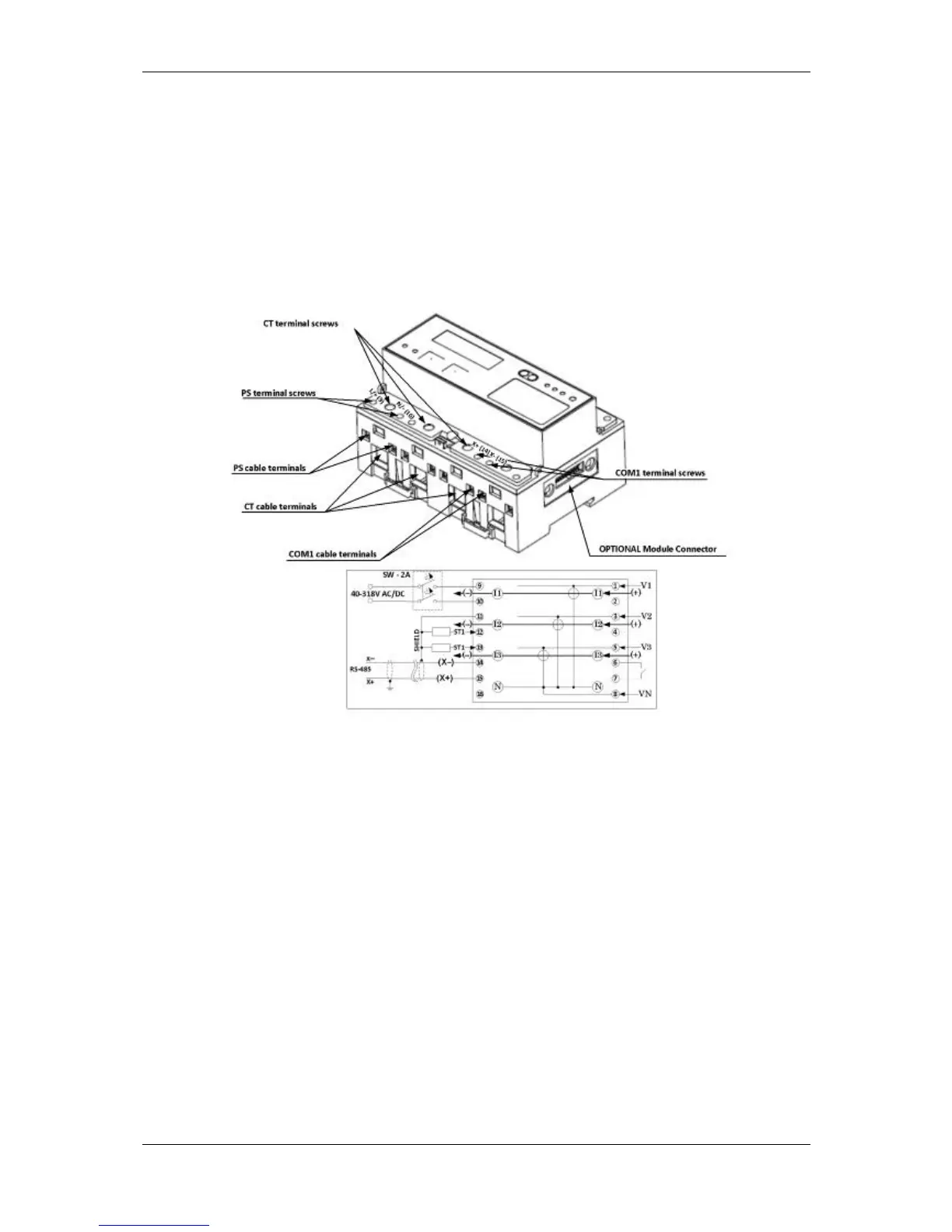

Figure 2-7a Terminals View EM133 Model
