Only qualified personnel familiar with the instrument and its
associated electrical equipment must perform the RTC battery
backup replacement.
The battery replacement must be performed while equipment
power supply is "ON"
To replace the CR2032 RTC battery:
1) Remove the EM13X Series cover
2) Remove the old battery by lifting up the battery holder retractable
tab.
3) Place the new CR2032 battery into the battery holder while holding up
the battery holder retractable tab in such a way that the (+) battery pole
is toward the battery holder, as shown in Figure 2-7.

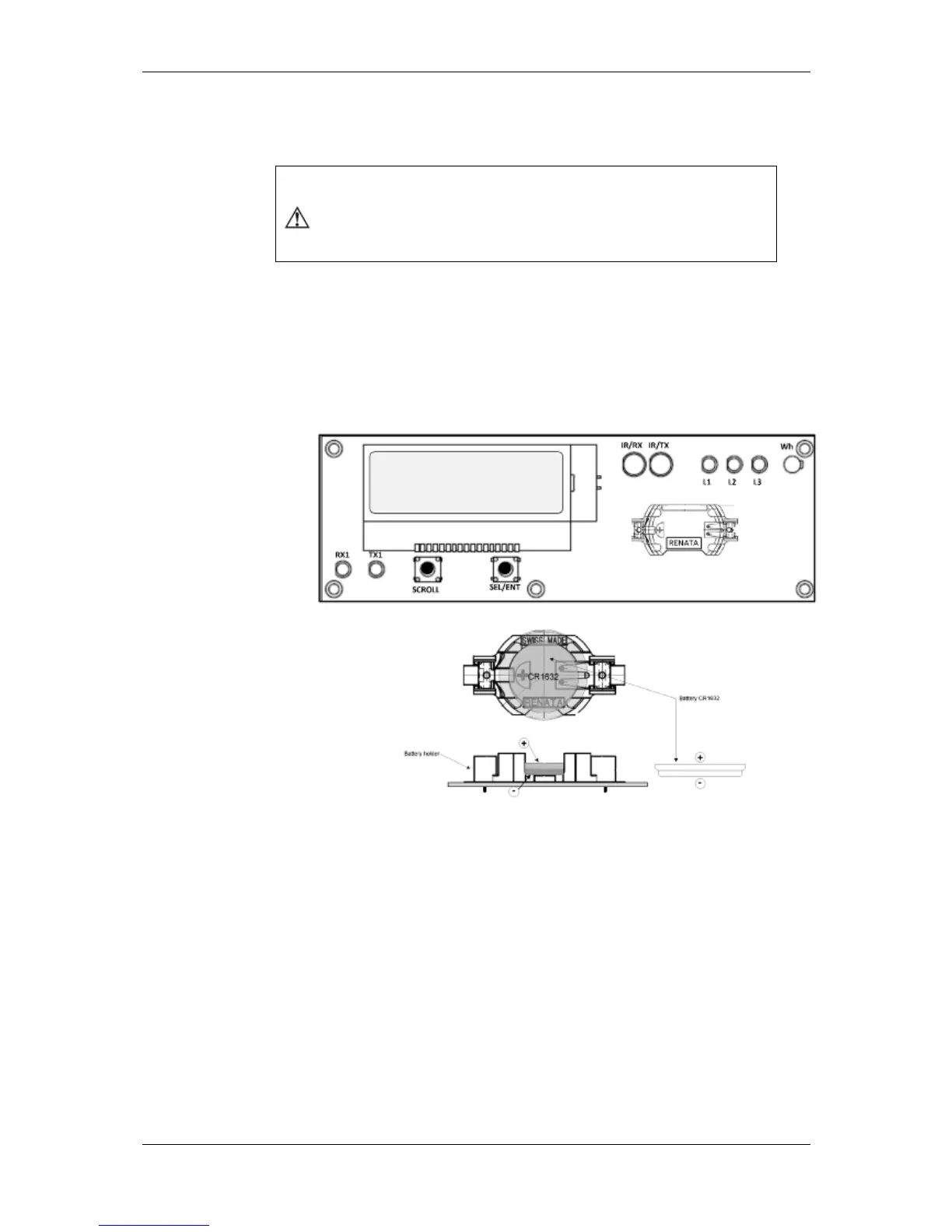

Figure 2-7 EM13X Series Battery Replacement
