Chapter 5 Configuring the EM13X Series General Meter Setup
EM13x Series SMART MULTIFUNCTION METER 89
Generating Energy Pulses through Relay Outputs
To generate energy pulses through a relay output:
Set a relay to either pulse, or KYZ mode, and then select a polarity
(active pulse edge) for energy pulses and a pulse width.
Select a source energy accumulator and the pulse rate for your output
Send your new setup to the meter
Configuring Analog Outputs
The meter can be ordered with four optional analog outputs with
options for 0-1mA, ±1mA, 0-20mA and 4-20mA current outputs.
Using PAS
Select General Setup from the Meter Setup menu, and then click on
the Analog Outputs tab.

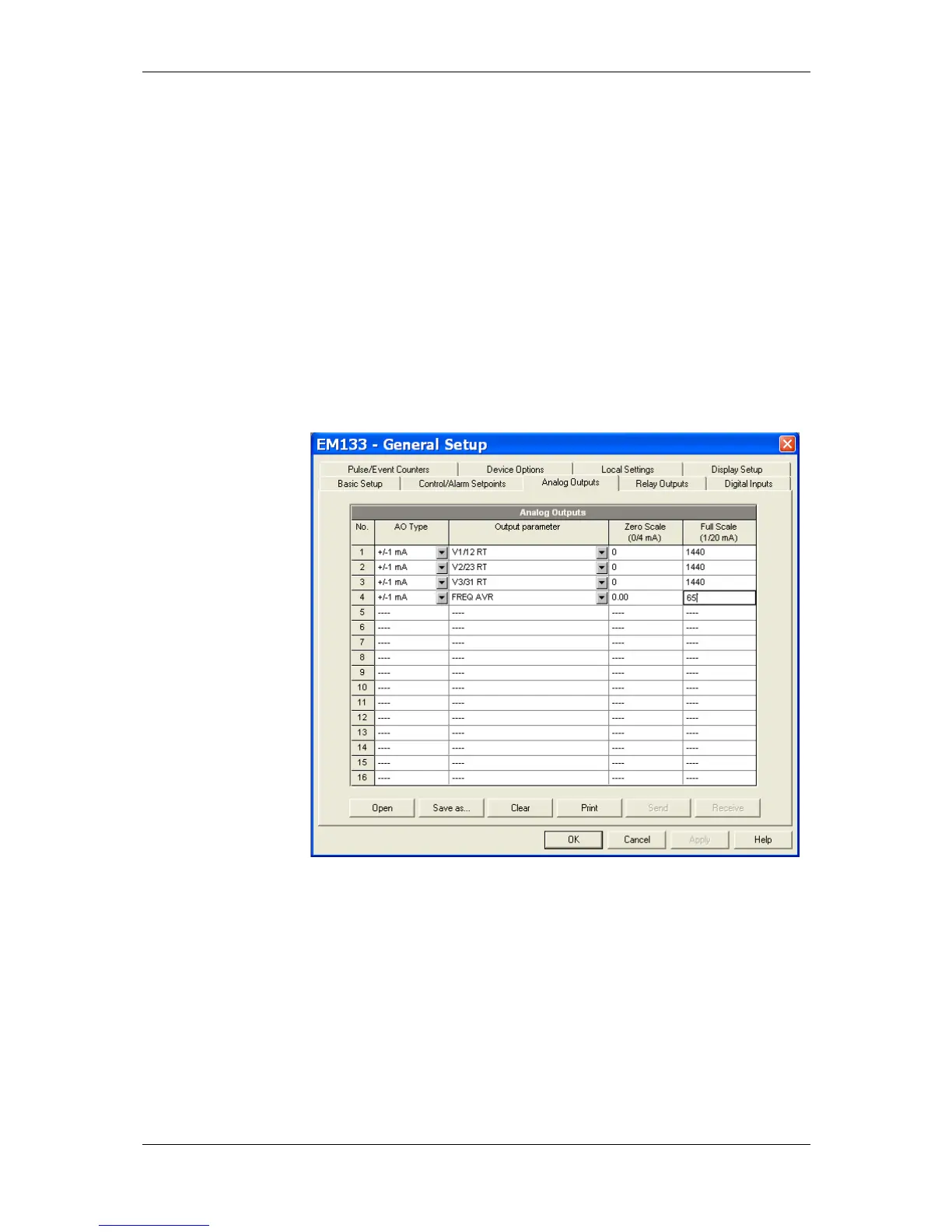

Figure 5-10: General Setup Dialog Box – Analog Outputs Tab
